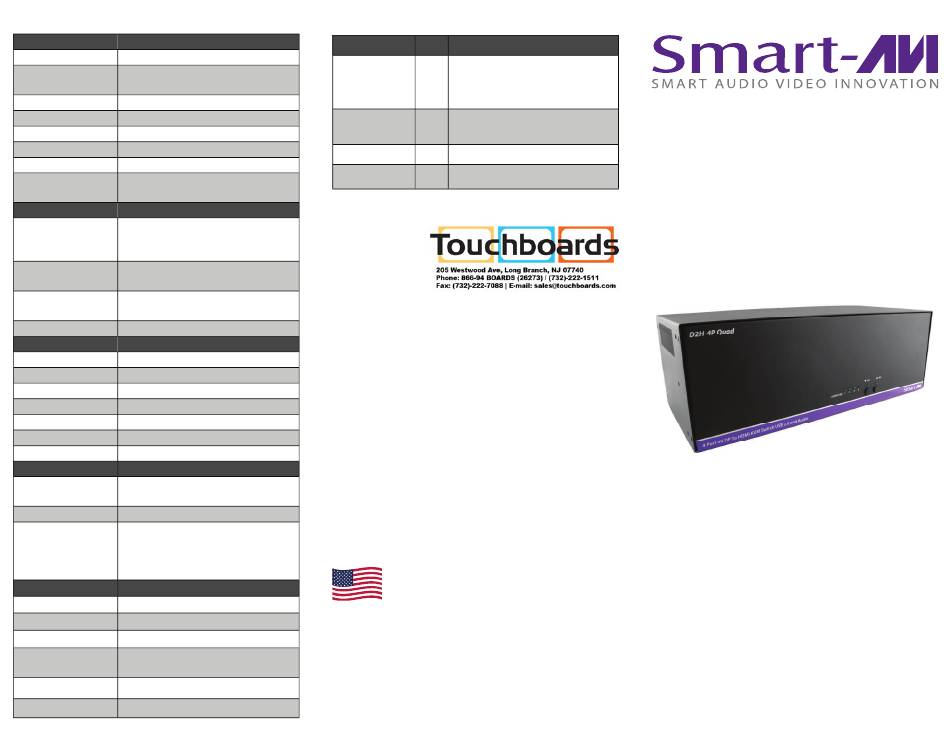

SMART-AVI D2H-4P Quad Quick Start Manual

TECHNICAL SPECIFICATIONS
VIDEO
Link Rate 5.4 Gbps
(16) DisplayPort (female) Version
Input Interface
1.2
Output Interface (4) HDMI (female) Version 1.4
Resolution Up to 4K (3840x2160 @ 30Hz)
Input Equalization Automatic
Video Bandwidth
Single-link 340MHz [10.2Gbps]
HDCP Compliant Yes
Input/Output Max
40 ft.
Cable Length
CONTROL
Buttons, Select/Switch between
Front Panel sources and view the current se-
lected channel.
DB9 Female - 9600 N,8,1, No flow
RS-232
control
Via Keyboard, Select/Switch be-
Hot Keys
tween Video & Audio sources
Emulation Keyboard, Video and Mouse
OTHER
Power Adapter External 100-240 VAC/ 5VDC4A
Dimensions 4.5" H x 5.75" D x 12.75" W
Weight 5.75 lbs.
Operating Temp. +23 to +95°F (-5 to +35°C )
Operating Humidity 5 to 90% (No Condensation)
Storage Temp. -4 to -185°F (-20 to -85°C)
Storage Humidity 10% to 85% (no condensation)
USB
USB 2.0, 1.1, and 1.0 w/ internal
Signal Type
hub
Input Interface (4) USB Type B (female)
(2) USB 1.1 Type A female for
keyboard and mouse;
Output Interface
(2) USB 2.0 Type A female Trans-
parent
AUDIO
Input Interface
(4) 3.5 mm Stereo Audio
Output Interface
(1) 3.5 mm Stereo Audio
Impedance
600 Ohm
Frequency Re-
20 Hz to 20 kHz
sponse
Nominal Level 0-1.0 V
Common Mode Rejection at 60 dB
WHAT'S IN THE BOX
PART NO. QTY DESCRIPTION
4-Port Quad DisplayPort KVM
Switch with Audio and USB 2.0
D2H-4P-QUAD 1
Sharing
Power Adapter External 100-
PS5VDC4A 1
240 VAC/5VDC4A
BRK-QUAD 2 Rack mount brackets (Optional)
1

Quick Start Guide

Brackets for mounting this device in a standard 19"
rack may be optionally ordered from Smart-AVI.
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages
in connection with the furnishing, performance or
use of this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
20160930
Designed and Manufactured in the USA
800.AVI.2131
Tel: (818) 503-6200 | Fax: (818) 503-6208
11651 Vanowen St. North Hollywood, CA 91605
SmartAVI.com

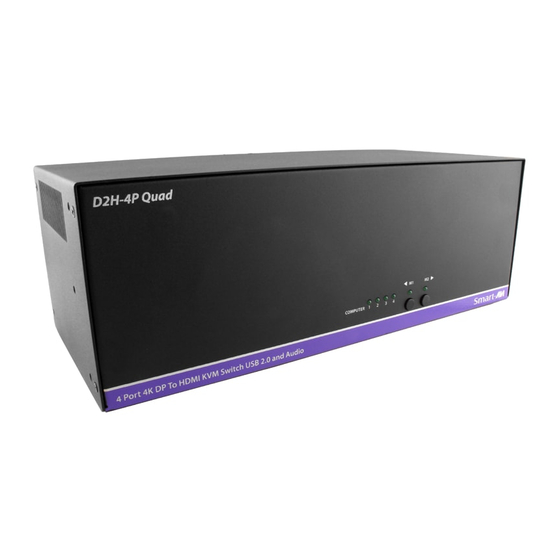

D2H‐4P Quad
4-Port Quad DisplayPort KVM Switch
with USB 2.0 and Audio Sharing
Access and control KVM on up to 4
computers with USB 2.0 and Audio
Sharing, using one USB keyboard, one
USB mouse and 4 DisplayPort
monitors
Quick Start Guide
