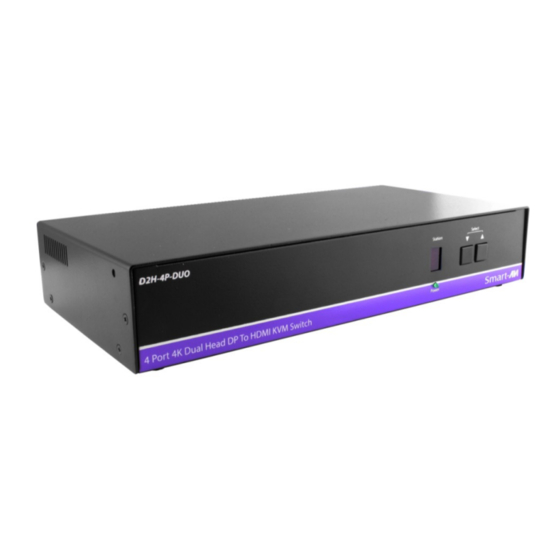

SMART-AVI D2H-4P-DUO User Manual

4-port dual-head displayport in, 2-port hdmi out, 4k ultra-hd kvm switch with usb and audio
Hide thumbs Also See for D2H-4P-DUO:
Table of Contents

Advertisement

Quick Links

Download this manual

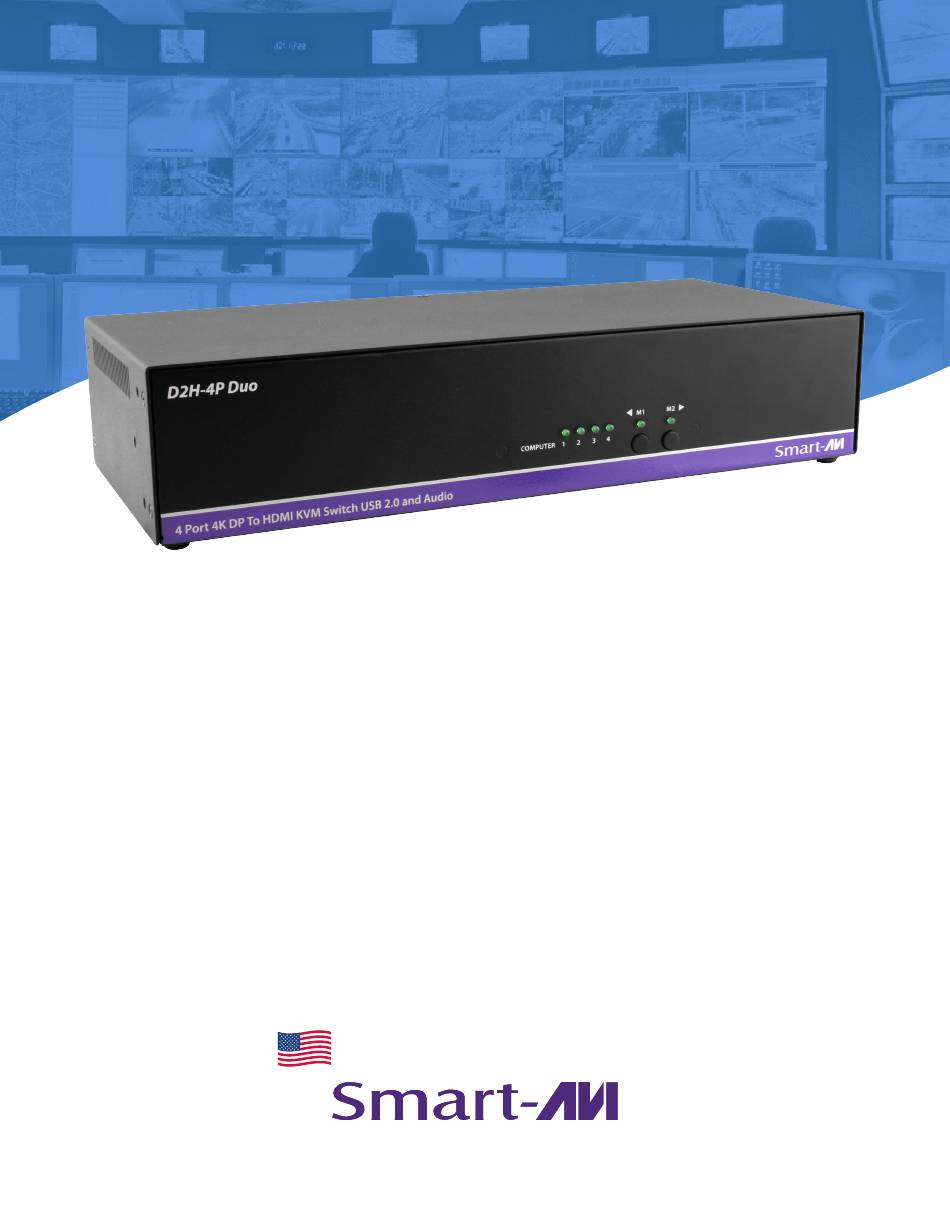

D2h-4p-DUO
4-Port dual-head DisplayPort in, 2-Port HDMI out, 4K Ultra-HD KVM Switch with USB and Audio
USER MANUAL
Designed and Manufactured in the USA
1-800-284-2131
www.smartavi.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D2H-4P-DUO and is the answer not in the manual?

Questions and answers

Related Manuals for SMART-AVI D2H-4P-DUO

Summary of Contents for SMART-AVI D2H-4P-DUO

  • Page 1 D2h-4p-DUO 4-Port dual-head DisplayPort in, 2-Port HDMI out, 4K Ultra-HD KVM Switch with USB and Audio USER MANUAL Designed and Manufactured in the USA 1-800-284-2131 www.smartavi.com...

  • Page 2: Table Of Contents

    OVERVIEW TECHNICAL SPECIFICATIONS___________________________________________________________________________ WHAT’S IN THE BOX?_____________________________________________________________________________________ FRONT AND BACK________________________________________________________________________________________ INSTALLATION____________________________________________________________________________________________ CONTROL_________________________________________________________________________________________________ DISABLE UNUSED PORTS________________________________________________________________________________ CUSTOM HOTKEY TRIGGERS____________________________________________________________________________ ESTABLISHING AN RS-232 CONNECTION______________________________________________________________ TROUBLESHOOTING_____________________________________________________________________________________ TECHNICAL SUPPORT____________________________________________________________________________________ LIMITED WARRANTY STATEMENT______________________________________________________________________ 4-Port Dual-Head DP in, 2-Port HDMI out, 4K Ultra-HD KVM Switch with USB and Audio...

  • Page 3: Technical Specifications

    Technical Specifications VIDEO Format DisplayPort 1.2, HDMI 1.4 Link Rate 5.4 Gbps Input Interface (8) DisplayPort (female) Version 1.2 Output Interface (2) HDMI (female) Version 1.4 Resolution Up to 4K (3840x2160 @30Hz) Input Equalization Automatic Video Bandwidth Single-link 340MHz [10.2Gbps] HDCP Compliant Input Cable Length Up to 20 ft...

  • Page 4: What's In The Box

    Q-TY DESCRIPTION D2H-4P-DUO-S 4-Port Dual-Head DP in, HDMI out, 4K Ultra-HD KVM Switch with USB and Audio PS5VDC4A Power Adapter User Manual D2H-4P-DUO FRONT D2H-4P-DUO BACK 4-Port Dual-Head DP in, 2-Port HDMI out, 4K Ultra-HD KVM Switch with USB and Audio...

  • Page 5: Installation

    INSTALLATION 1. Ensure that power is disconnected from D2H-4P Duo. 2. Connect the DisplayPort cables, Audio and USB cables (male type-A to male type-B ) from the computers to the respective ports on the D2H-4P Duo. 3. Optionally connect RS-232 for control functions. 4.

  • Page 6: Control

    The numbered LED lights will indicate which computer is selected. HOTKEY COMMANDS A Hotkey command is a keyboard sequence used to trigger an action on the D2H-4P-DUO through the use of the keyboard connected on the USB port of the D2H-4P-DUO. To activate the hotkey sequence, press the CTRL key twice and then enter the desired hotkey commands.

  • Page 7: Custom Hotkey Triggers

    Check the device and your PC to determine if you need a male to male or a male to female cable and how long it needs to be. The Smart-AVI device requires a straight through cable. You can use a Null Modem Adapter to convert a crossed cable to a straight through cable.

  • Page 8: Establishing An Rs-232 Connection

    1. Connect an RS-232 cable to the RS-232 connector on the PC. 2. Connect the other end of the cable to the RS-232 port of the Smart-AVI device. 3. Use Windows Control Panel / Device Manager to identify the Com port number. See instructions and Figure 7-2 below.

  • Page 9: Troubleshooting

    Troubleshooting No Power • Make sure that the power adapter is securely connected to the power connector of the unit. • Check the output voltage of the power supply and make sure that the voltage value is around 12VDC. • Replace the power supply. No Video •...

  • Page 10: Limited Warranty Statement

    Limited warranty statement A. Extent of limited warranty SmartAVI, Inc. warrants to the end-user customers that the SmartAVI product specified above will be free from defects in materials and workmanship for the duration of 1 year, which duration begins on the date of purchase by the customer. Customer is responsible for maintaining proof of date of purchase.
  • Page 11 NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.
