Press CONFIG
CTB Showed:
►
The options available on the Configuration menu in the DIGITAL measurement
mode are next:
Freq. Mode:
►
Freq. Step:
►
Channel BW:
►
Noise Freq.:
►
January 2015
again to CONFIGURATION next page 2/2.

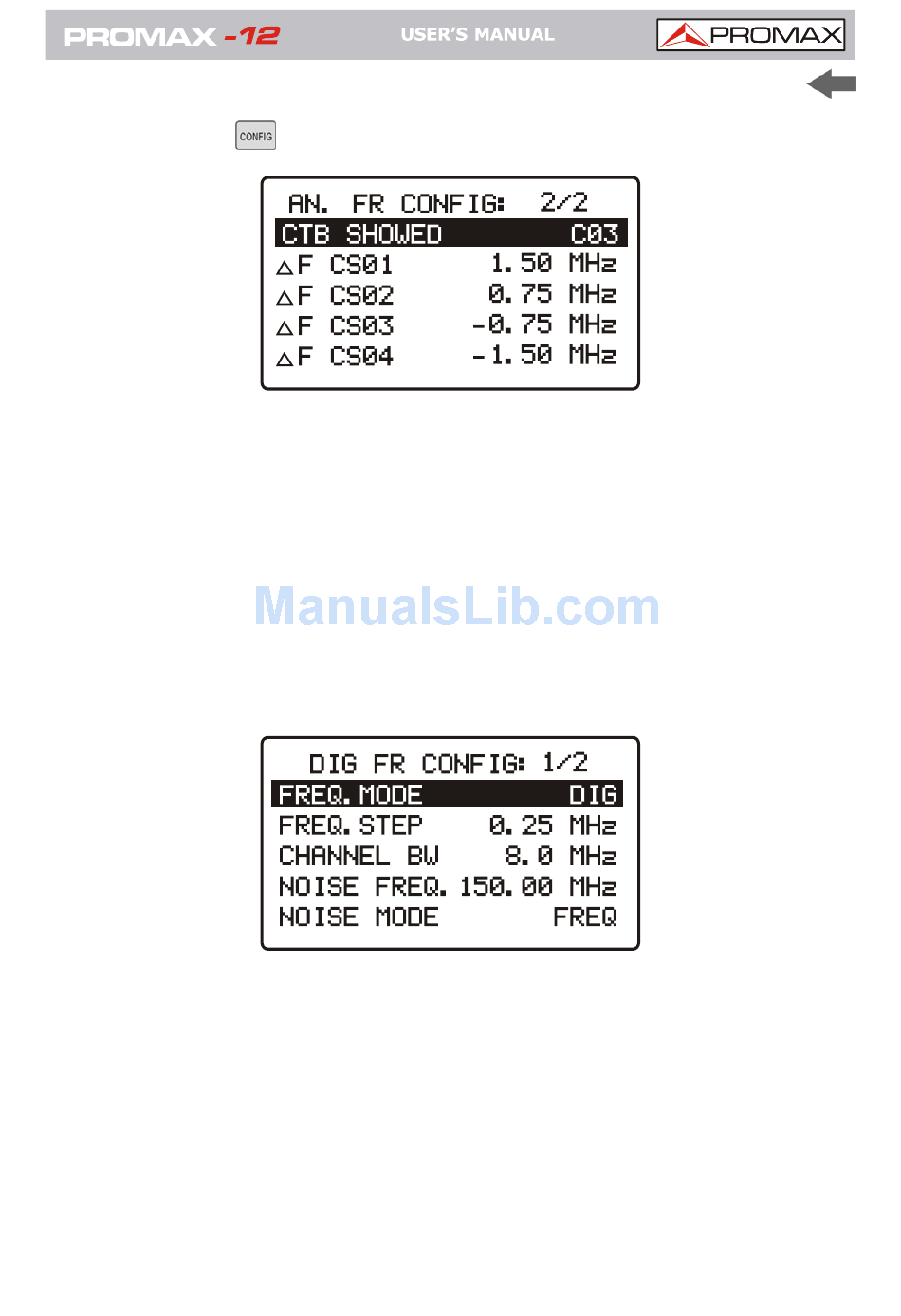

Figure 35. Analogue Configuration Screen 2/2.
The CTB SHOWED parameter allows defining the method of
measurement for the CTB. IN CH (within the channel) is the
suitable method whenever the carrier of the channel in study
can be turned off. If it is not possible, as approach, any
other channel (free) can be defined for the measurement of
the CTB. Parameters
FCS04 allow modifying the frequencies where the CSO is
Δ
measured (the equipment admits values from -2.50 MHz to
2.5 MHz).
Figure 36. Digital Configuration Screen 1/2.
It allows you to change the measurement signal among ANL
(Analogue), DIG (digital) and LEV (Power Level).
It allows you to change the step of frequency. This is put
into practice when you are using the rotary knob to change
frequency.
It allows you to change the channel bandwidth.
It allows you to change the noise frequency.
FCS01, FCS02,
Δ Δ
FCS03 and
Δ
