SERVICE MANUAL
System
Laser: Semiconductor laser
Signal format system:
PAL/NTSC
(except US/Canadian
model)
:
NTSC (US/Canadian
model)
Audio characteristics
Frequency response: DVD VIDEO (PCM
96 kHz): 2 Hz to 44 kHz (±1.0 dB)/DVD
VIDEO (PCM 48 kHz): 2 Hz to 22 kHz
(±0.5 dB)/CD: 2 Hz to 20 kHz (±0.5 dB)
Signal-to-noise ratio (S/N ratio): 115 dB
(AUDIO OUT L/R jacks only)
Harmonic distortion: 0.003 %
Dynamic range: DVD VIDEO: 103 dB/CD:
99 dB
Wow and flutter: Less than detected value
(±0.001% W PEAK)
When you play PCM sound tracks with a
96 kHz sampling frequency, the output
signals from the DIGITAL OUT (OPTICAL)
jack are converted to 48 kHz sampling
frequency.

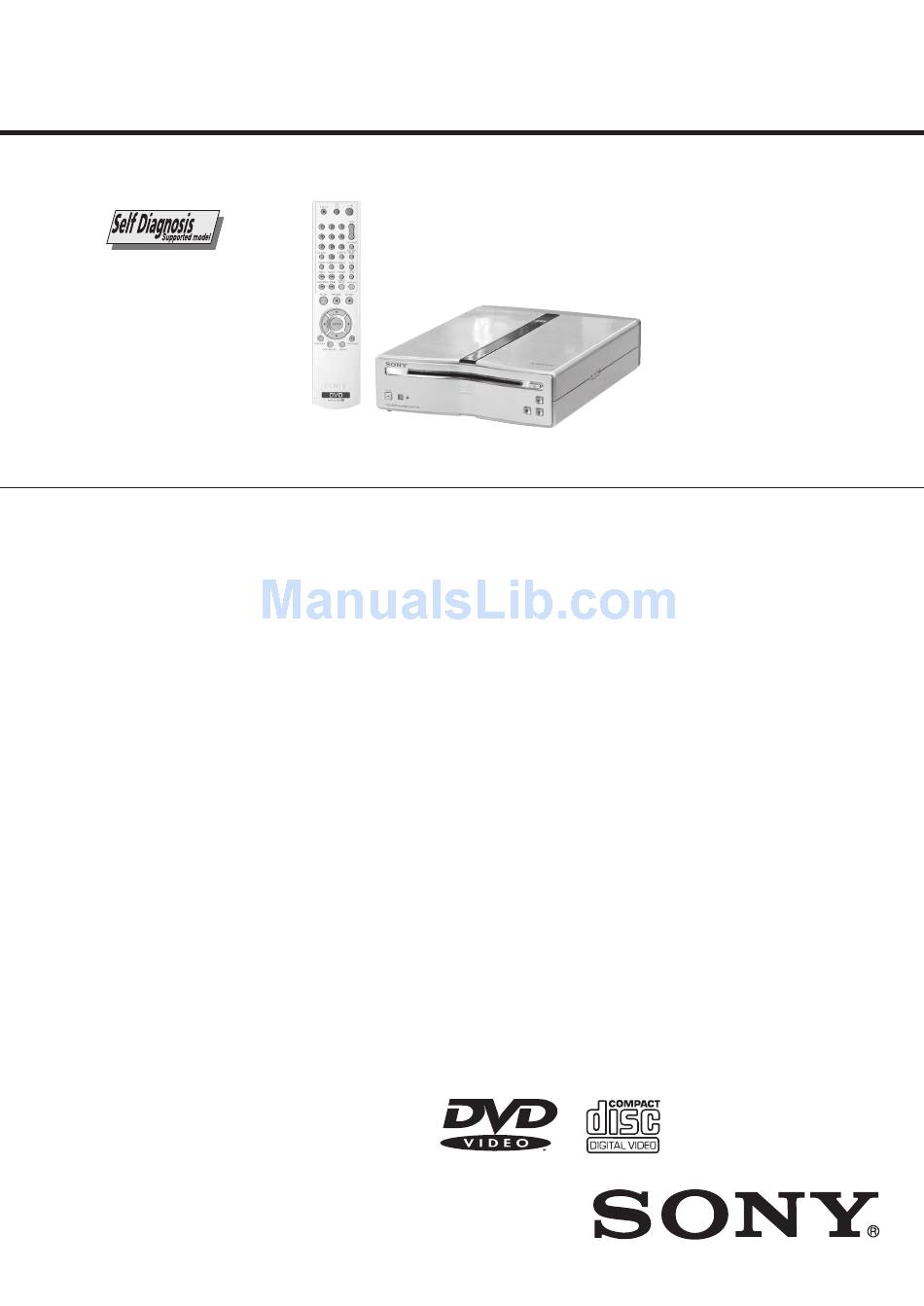

Photo : DVP-F25
RMT-D151E
SPECIFICATIONS
Outputs
(Jack name: Jack type/Output level/Load
impedance)
AUDIO OUT L/R: Phono jack/2 Vrms/
10 kilohms
DIGITAL OUT (OPTICAL): Optical
output jack/-18 dBm (wave length:
660 nm)
COMPONENT VIDEO OUT (Y, C
Phono jack/Y: 1.0 Vp-p/C
, C
B
0.7 Vp-p/75 ohms
VIDEO OUT: Phono jack/1.0 Vp-p/75 ohms
S VIDEO OUT: 4-pin mini DIN/
Y: 1.0 Vp-p/C: 0.3 Vp-p (PAL),
0.286 Vp-p (NTSC)/75 ohms
DVP-F25
RMT-D151A/D151E
Canadian Model
Argentina Model
Mexico Model
Hong Kong Model
Singapore Model
Australian Model
New Zealand Model
General
Power requirements:
US,Canadian,Mexico model:
120V AC, 60 Hz
Other country model:
2
20 to 240 V AC, 50/60 Hz
Power consumption: 9 W
Dimensions (approx.): 196 × 61 × 265 mm
× 2
× 10
3
1
, C
):
(7
/
/
B
R
4
2
:
(wid
th/height/depth) incl. projecting
R
parts
Mass (approx.): 1.8 kg (3 lb 14 oz.)
Operating temperature: 5 ° C to 35 ° C
(41 °F to 95 °F)
Operating humidity: 25 % to 80 %
Supplied accessories
See page 1-3.
Specifications and design are subject to
change without notice.
CD/DVD PLAYER
US Model
AEP Model
UK Model
1
/
in.)
2
