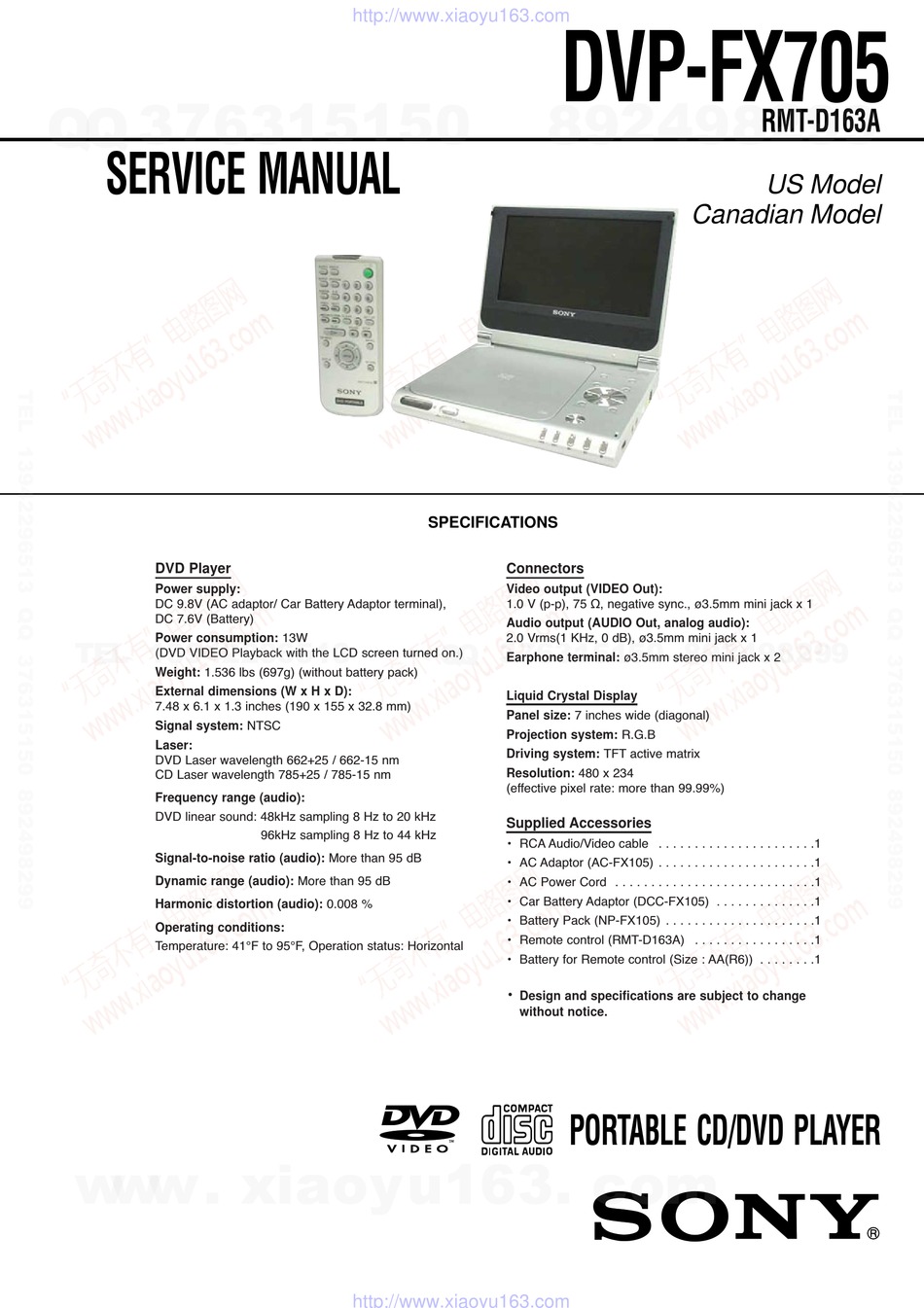

SERVICE MANUAL
DVD Player
Power supply:
DC 9.8V (AC adaptor/ Car Battery Adaptor terminal),
DC 7.6V (Battery)
TE
L 13942296513
Power consumption: 13W
(DVD VIDEO Playback with the LCD screen turned on.)
Weight: 1.536 lbs (697g) (without battery pack)
External dimensions (W x H x D):
7.48 x 6.1 x 1.3 inches (190 x 155 x 32.8 mm)
Signal system: NTSC
Laser:
DVD Laser wavelength 662+25 / 662-15 nm
CD Laser wavelength 785+25 / 785-15 nm
Frequency range (audio):
DVD linear sound: 48kHz sampling 8 Hz to 20 kHz
Signal-to-noise ratio (audio): More than 95 dB
Dynamic range (audio): More than 95 dB
Harmonic distortion (audio): 0.008 %
Operating conditions:
Temperature: 41°F to 95°F, Operation status: Horizontal
www
.
http://www.xiaoyu163.com
96kHz sampling 8 Hz to 44 kHz
x
ao
u163
y
i
http://www.xiaoyu163.com
DVP-FX705
2 9
8
SPECIFICATIONS
Connectors
Video output (VIDEO Out):
1.0 V (p-p), 75 Ω, negative sync., ø3.5mm mini jack x 1
Audio output (AUDIO Out, analog audio):
Q Q
3
6 7
1 3
1 5
2.0 Vrms(1 KHz, 0 dB), ø3.5mm mini jack x 1
Earphone terminal: ø3.5mm stereo mini jack x 2
Liquid Crystal Display
Panel size: 7 inches wide (diagonal)
Projection system: R.G.B
Driving system: TFT active matrix
Resolution: 480 x 234
(effective pixel rate: more than 99.99%)
Supplied Accessories
• RCA Audio/Video cable . . . . . . . . . . . . . . . . . . . . . .1
• AC Adaptor (AC-FX105) . . . . . . . . . . . . . . . . . . . . . .1
• AC Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
• Car Battery Adaptor (DCC-FX105) . . . . . . . . . . . . . .1
• Battery Pack (NP-FX105) . . . . . . . . . . . . . . . . . . . . .1
• Remote control (RMT-D163A) . . . . . . . . . . . . . . . . .1
• Battery for Remote control (Size : AA(R6)) . . . . . . . .1
•
Design and specifications are subject to change
without notice.
PORTABLE CD/DVD PLAYER
co
.
9 4
2 8
RMT-D163A
US Model
Canadian Model
0 5
8
2 9
9 4
2 8
m
9 9
9 9

Advertisement
