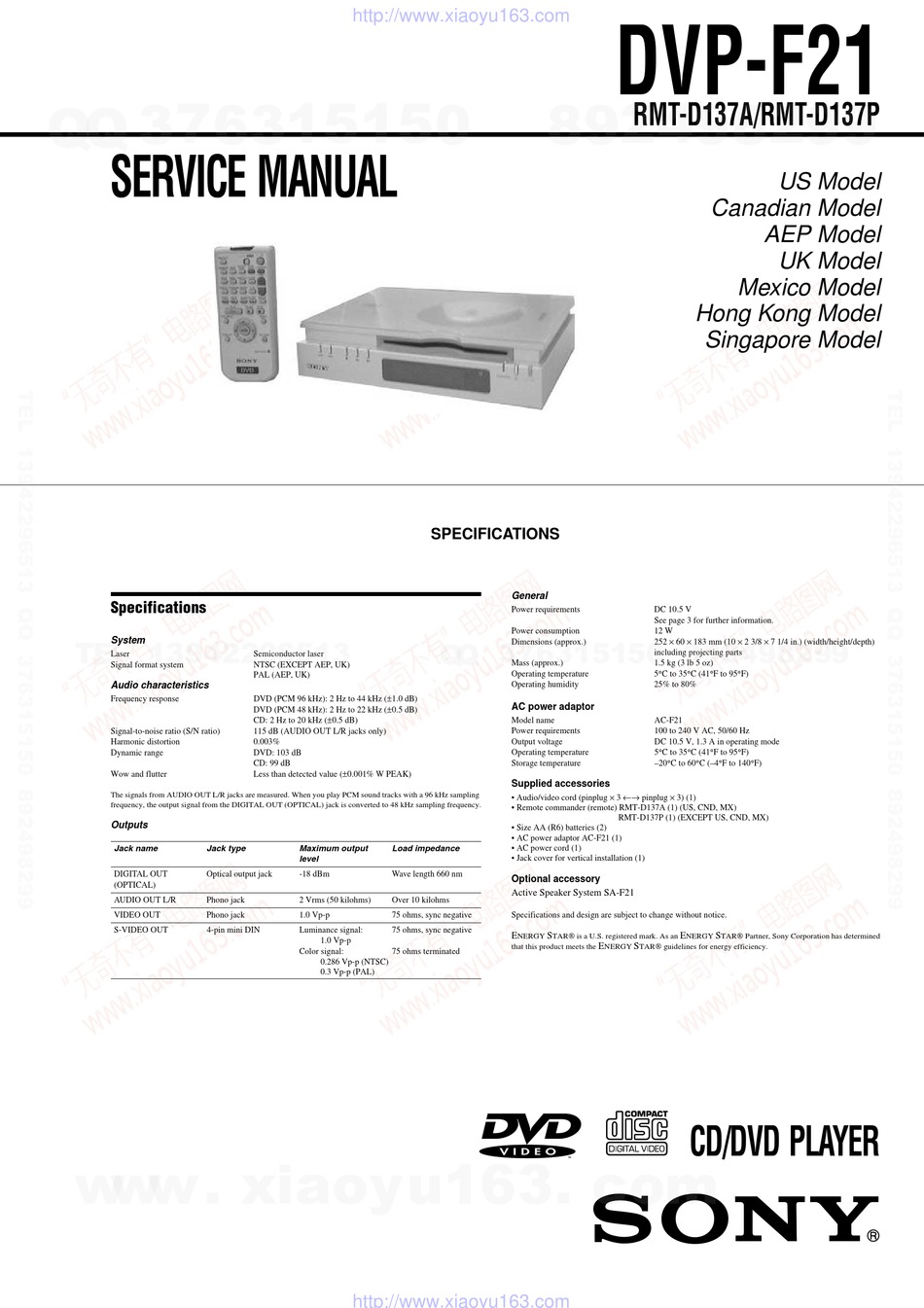

SERVICE MANUAL

Specifications

TE
L 13942296513
System
Laser
Signal format system
Audio characteristics
Frequency response
Signal-to-noise ratio (S/N ratio)
Harmonic distortion
Dynamic range
Wow and flutter
The signals from AUDIO OUT L/R jacks are measured. When you play PCM sound tracks with a 96 kHz sampling
frequency, the output signal from the DIGITAL OUT (OPTICAL) jack is converted to 48 kHz sampling frequency.
Outputs
Jack name
Jack type
DIGITAL OUT
Optical output jack
(OPTICAL)
AUDIO OUT L/R
Phono jack
VIDEO OUT
Phono jack
S-VIDEO OUT
4-pin mini DIN
www
.
http://www.xiaoyu163.com
Semiconductor laser
NTSC (EXCEPT AEP, UK)
PAL (AEP, UK)
DVD (PCM 96 kHz): 2 Hz to 44 kHz (±1.0 dB)
DVD (PCM 48 kHz): 2 Hz to 22 kHz (±0.5 dB)
CD: 2 Hz to 20 kHz (±0.5 dB)
115 dB (AUDIO OUT L/R jacks only)
0.003%
DVD: 103 dB
CD: 99 dB
Less than detected value (±0.001% W PEAK)
Maximum output
Load impedance
level
-18 dBm
Wave length 660 nm
2 Vrms (50 kilohms)
Over 10 kilohms
1.0 Vp-p
75 ohms, sync negative
Luminance signal:
75 ohms, sync negative
1.0 Vp-p
Color signal:
75 ohms terminated
0.286 Vp-p (NTSC)
0.3 Vp-p (PAL)
x
ao
u163
y
i
http://www.xiaoyu163.com
2 9
8
SPECIFICATIONS
General
Power requirements
Q Q
3
Power consumption
6 7
1 3
1 5
Dimensions (approx.)
Mass (approx.)
Operating temperature
Operating humidity
AC power adaptor
Mo
del name
Power requirements
Output voltage
Operating temperature
Storage temperature
Supp
lied accessories
• Audio/video cord (pinplug × 3 ←→ pinplug × 3) (1)
• Remote commander (remote) RMT-D137A (1) (US, CND, MX)
• Size AA (R6) batteries (2)
• AC power adaptor AC-F21 (1)
• AC power cord (1)
• Jack cover for vertical installation (1)
Optional accessory
Active Speaker System SA-F21
Specifications and design are subject to change without notice.
TAR  is a U.S. registered mark. As an
E
S
NERGY
E
that this product meets the
NERGY
co
.
DVP-F21
9 4
2 8
RMT-D137A/RMT-D137P
US Model
Canadian Model
AEP Model
UK Model
Mexico Model
Hong Kong Model
Singapore Model
DC 10.5 V
See page 3 for further information.
0 5
12 W
8
2 9
9 4
2 8
252 × 60 × 183 mm (10 × 2 3/8 × 7 1/4 in.) (width/height/depth)
including projecting parts
1.5 kg (3 lb 5 oz)
5°C to 35°C (41°F to 95°F)
25% to 80%
AC-F21
100 to 240 V AC, 50/60 Hz
DC 10.5 V, 1.3 A in operating mode
5°C to 35°C (41°F to 95°F)
–20°C to 60°C (–4°F to 140°F)
RMT-D137P (1) (EXCEPT US, CND, MX)
TAR  Partner, Sony Corporation has determined
E
S
NERGY
TAR  guidelines for energy efficiency.
S
m
CD/DVD PLAYER
9 9
9 9
