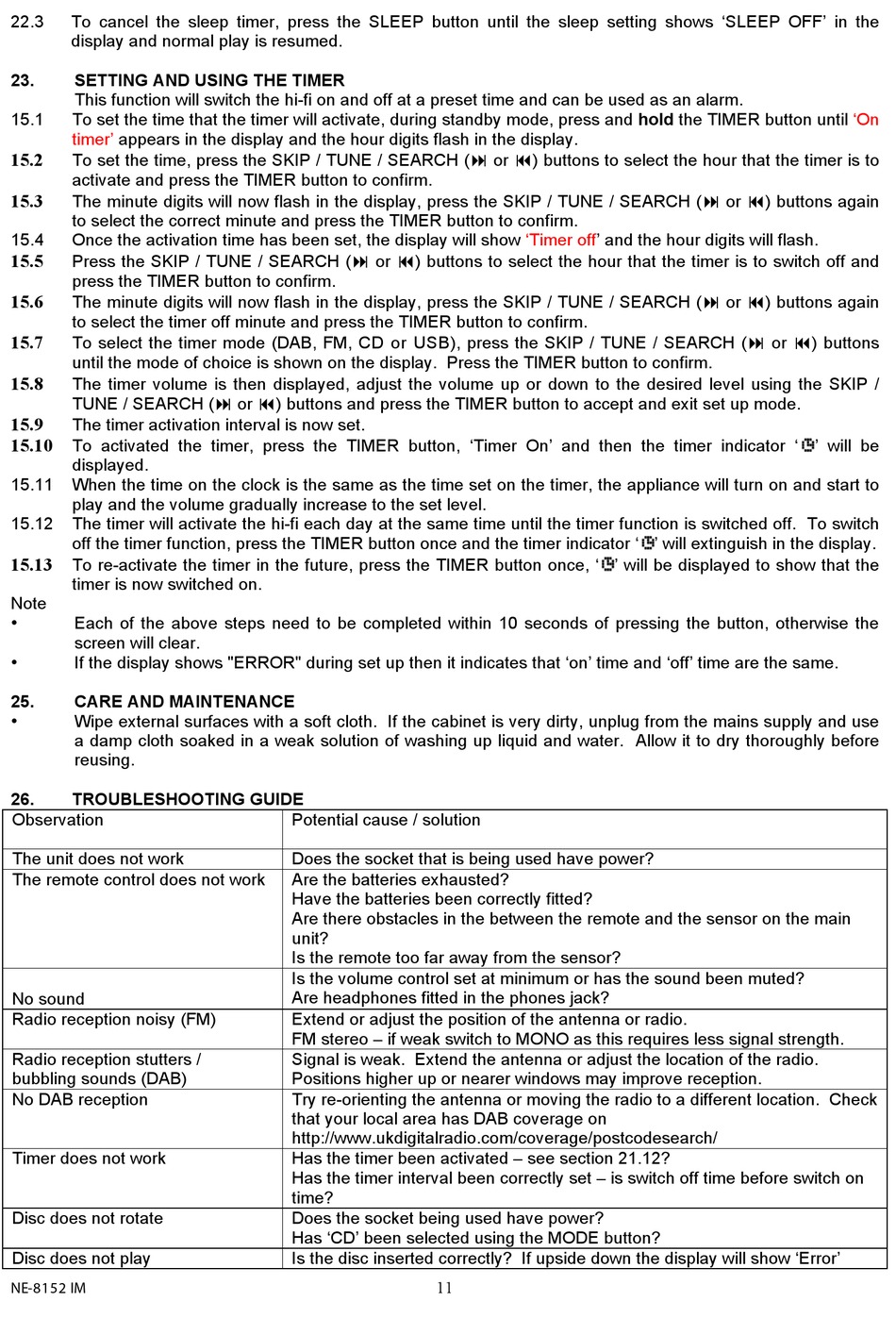

Setting And Using The Sleep Function; Setting And Using The Timer Function; Care And Maintenance; Troubleshooting Guide - TechniSat DigitRadio 360 CD Instruction Manual

22.3 To cancel the sleep timer, press the SLEEP button until the sleep setting shows 'SLEEP OFF' in the
display and normal play is resumed.
23. SETTING AND USING THE TIMER
This function will switch the hi-fi on and off at a preset time and can be used as an alarm.
15.1 To set the time that the timer will activate, during standby mode, press and hold the TIMER button until
timer' appears in the display and the hour digits flash in the display.
15.2
To set the time, press the SKIP / TUNE / SEARCH (
activate and press the TIMER button to confirm.
15.3
The minute digits will now flash in the display, press the SKIP / TUNE / SEARCH (
to select the correct minute and press the TIMER button to confirm.
15.4 Once the activation time has been set, the display will show
15.5
Press the SKIP / TUNE / SEARCH (
press the TIMER button to confirm.
15.6
The minute digits will now flash in the display, press the SKIP / TUNE / SEARCH (
to select the timer off minute and press the TIMER button to confirm.
15.7
To select the timer mode (DAB, FM, CD or USB), press the SKIP / TUNE / SEARCH (
until the mode of choice is shown on the display. Press the TIMER button to confirm.
15.8
The timer volume is then displayed, adjust the volume up or down to the desired level using the SKIP /
TUNE / SEARCH (
15.9
The timer activation interval is now set.
15.10
To activated the timer, press the TIMER button, 'Timer On' and then the timer indicator ' ' will be
displayed.
15.11 When the time on the clock is the same as the time set on the timer, the appliance will turn on and start to
play and the volume gradually increase to the set level.
15.12 The timer will activate the hi-fi each day at the same time until the timer function is switched off. To switch
off the timer function, press the TIMER button once and the timer indicator ' ' will extinguish in the display.
15.13
To re-activate the timer in the future, press the TIMER button once, ' ' will be displayed to show that the
timer is now switched on.
Note
Each of the above steps need to be completed within 10 seconds of pressing the button, otherwise the
•
screen will clear.
If the display shows "ERROR" during set up then it indicates that 'on' time and 'off' time are the same.
•
25.

CARE AND MAINTENANCE

Wipe external surfaces with a soft cloth. If the cabinet is very dirty, unplug from the mains supply and use
•
a damp cloth soaked in a weak solution of washing up liquid and water. Allow it to dry thoroughly before
reusing.
26.

TROUBLESHOOTING GUIDE

Observation
The unit does not work
The remote control does not work
No sound
Radio reception noisy (FM)
Radio reception stutters /
bubbling sounds (DAB)
No DAB reception
Timer does not work
Disc does not rotate
Disc does not play
NE-8152 IM
or
!
or ) buttons and press the TIMER button to accept and exit set up mode.
! "
Potential cause / solution
Does the socket that is being used have power?
Are the batteries exhausted?
Have the batteries been correctly fitted?
Are there obstacles in the between the remote and the sensor on the main
unit?
Is the remote too far away from the sensor?
Is the volume control set at minimum or has the sound been muted?
Are headphones fitted in the phones jack?
Extend or adjust the position of the antenna or radio.
FM stereo – if weak switch to MONO as this requires less signal strength.
Signal is weak. Extend the antenna or adjust the location of the radio.
Positions higher up or nearer windows may improve reception.
Try re-orienting the antenna or moving the radio to a different location. Check
that your local area has DAB coverage on
http://www.ukdigitalradio.com/coverage/postcodesearch/
Has the timer been activated – see section 21.12?
Has the timer interval been correctly set – is switch off time before switch on
time?
Does the socket being used have power?
Has 'CD' been selected using the MODE button?
Is the disc inserted correctly? If upside down the display will show 'Error'
! or " ) buttons to select the hour that the timer is to
'Timer
) buttons to select the hour that the timer is to switch off and
"
11
or
!
off' and the hour digits will flash.
! or
'On
) buttons again
"
" ) buttons again
or ) buttons
! "
