  • Page 1 PW - LAN M0270 ITEN_00...
  • Page 2: Table Of Contents

    INDEX INDEX CONFORMITY DECLARATION OF CONFORMITY (94/9/CE, All. VII) GENERAL WARNINGS SAFETY INSTRUCTIONS FIRST AID RULES GENERAL SAFETY RULES PACKAGING PACKAGE CONTENTS/PRE-INSPECTION MACHINE AND MANUFACTURER IDENTIFICATION TECHNICAL FEATURES OVERVIEW INSTALLATION FIXING TO THE WALL WIRE CONNECTION LED & CONNECTORS GETTING STARTED NAVIGATION NETWORK TAB SYSTEM TAB...
  • Page 3: Conformity

    - Low-Voltage Directive 2006/95/EC The documentation is at the disposal of the competent authority following motivated request at Piusi S.p.A. or following request sent to the email address: doc_tec@piusi.comThe person authorised to compile the technical file and draw up the declaration is Otto Varini as legal representative.
  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS FIRST AID RULES Persons who Disconnect the power source, or use a dry insulator to have suffered protect yourself while you move the injured person electric shock away from any electrical conductor. Avoid touching the injured person with your bare hands until he is far away from any conductor.
  • Page 5: General Safety Rules

    GENERAL SAFETY RULES Essential Wear protective equipment that is: protective • suited to the operations that need to be performed; equipment • resistant to cleaning products. characteristics safety shoes; Personal protective equipment that must be worn close-fitting clothing; protection gloves; safety goggles;...
  • Page 6: Packaging

    DANGER The cable must be adapted to the current capacities of the device. Never touch the plug and socket with wet hands Unsuitable extension cable can be dangerous. In accordance with current regulation only extension cable that are labelled for outdoor use and have a suf- ficient ampacity should be used outdoor The connection between plug and socket must stay away from water.
  • Page 7: Package Contents/Pre-Inspection

    Do not use equipment which you suspect might not be safe. 4.5 MACHINE AND MANUFACTURER IDENTIFICATION FOREWORD PW-LAN comes with an identification plate; this is attached externally and contains the following in- formation: model - lot number / Production year;...
  • Page 8: Technical Features

    TECHNICAL FEATURES Dimensions Length (A) 180 mm Depth (B) 60 mm Height (C) 160 mm Weight 330 g Technical Specifications Voltage 100 - 230 Vac Frequency 50 Hz / 60 Hz Max. power 15 W Protection grade IP54 M0270 EN...
  • Page 9: Overview

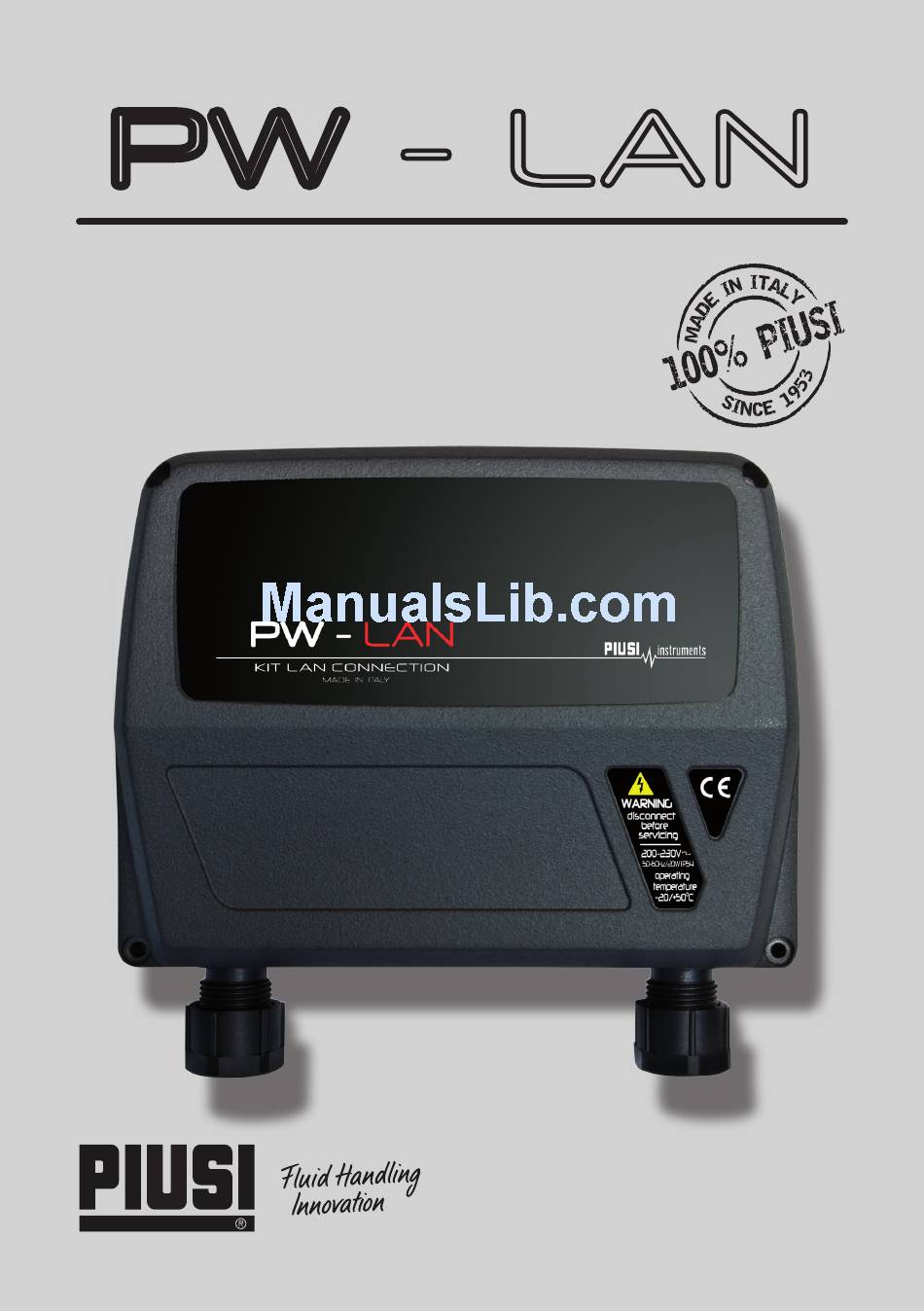

    OVERVIEW Introduction Welcome to PW-LAN – the new solution which allows you to connect Piusi devices to your LAN network. The PW-LAN provides: • Instant conversion from RS485 to Ethernet signal • IP Fallback function • DHCP compatible • 100% compatibility with Piusi Softwares...
  • Page 10: Fixing To The Wall

    7.1 FIXING TO THE WALL FOREWORD Remove the front cover to fix the PW-LAN on the wall To fix on the wall, use No. 2 M4 screws 13.5 7.2 WIRE CONNECTION FOREWORD Removing the frontal case it is possible to make all the necessary wiring .
  • Page 11 Using a certified cable for rs485 you can reach 1200 meters ETHERNET CABLE Use a shielded cable, category 5 or higher. The max. distance that can be reached is 90 metres. The maximum distance is also affected by the existing network architecture WIRED PW-LAN RS485 POWER ETHERNET ATTENTION...
  • Page 12: Led & Connectors

    7.3 LED & CONNECTORS RESET button to restore factory defaults Ethernet connector RS485 connector Power 100/240Vac 50/60 Hz connector LED FLASHING EQUIVALENCE No traffic from RS485 SLOW Traffic from RS485 FLASH DCHP Disabled, Customized IP (different from 192.168.2.10) DHCP Enabled SLOW DCHP Enabled, No IP from Fallback IP...
  • Page 13: Getting Started

    7.4 GETTING STARTED FOREWORD This is the scheme of a typical site structure. ACCESS To access the PW-LAN Configuration Interface, perform the following steps Make sure that your host machine is connected via Ethernet to the Piusi device Configure the Ethernet adapter on your computer with a static IP address on the 192.168.2.x subnet (for example, IP address:...
  • Page 14 M0270 EN...
  • Page 15: Navigation

    - DHCP Client that it means that in the lan network exist a DHCP server that assigns a dynamic IP to the PW-LAN , an address IP of the Gateway and an address DNS to the device - Static that means that the administrator of net assigns a fixed static IP to the PW-LAN.
  • Page 16: System Tab

    1) Case choice Products Piusi 2) Case Other products Configuration Default and choice other products PIUSI Setting others Parameters RS485 PIUSI PRODUCT PIUSI PRODUCT: Preset configuration. Choose one of the prod- ucts in the list. MANUAL CONFIGURATION Manually enter the RS485 parameters. CUSTOM...
  • Page 17: Procedure To Restore

    7.9 PROCEDURE TO RESTORE FACTORY SETTINGS If you are no longer able to access the device and you want to reset the factory settings, a special Reset procedure should be applied. The procedure must be done only by staff experi- ATTENTION enced on the dangers of the electrical power! The staff must wear insulating gloves in order...
  • Page 18: Disposal

    DISPOSAL Foreword If the system needs to be disposed, the parts which make it up must be delivered to companies that specialize in the recycling and disposal of industrial waste and, in particular: Disposing of pack- The packaging consists of biodegradable cardboard which ing materials can be delivered to companies for normal recycling of cel- lulose.
