Erbauer ERB383WCH Original Instructions Manual

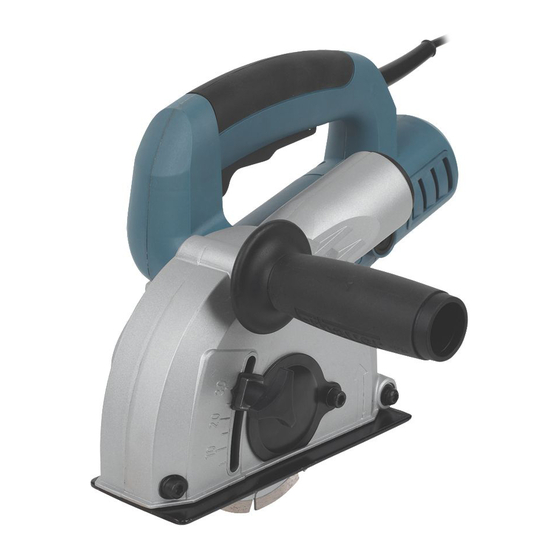

1500w wall chaser
Hide thumbs Also See for ERB383WCH:
Table of Contents

Advertisement

Quick Links

ERB383WCH
1500W WALL CHASER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ERB383WCH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Erbauer ERB383WCH

Summary of Contents for Erbauer ERB383WCH

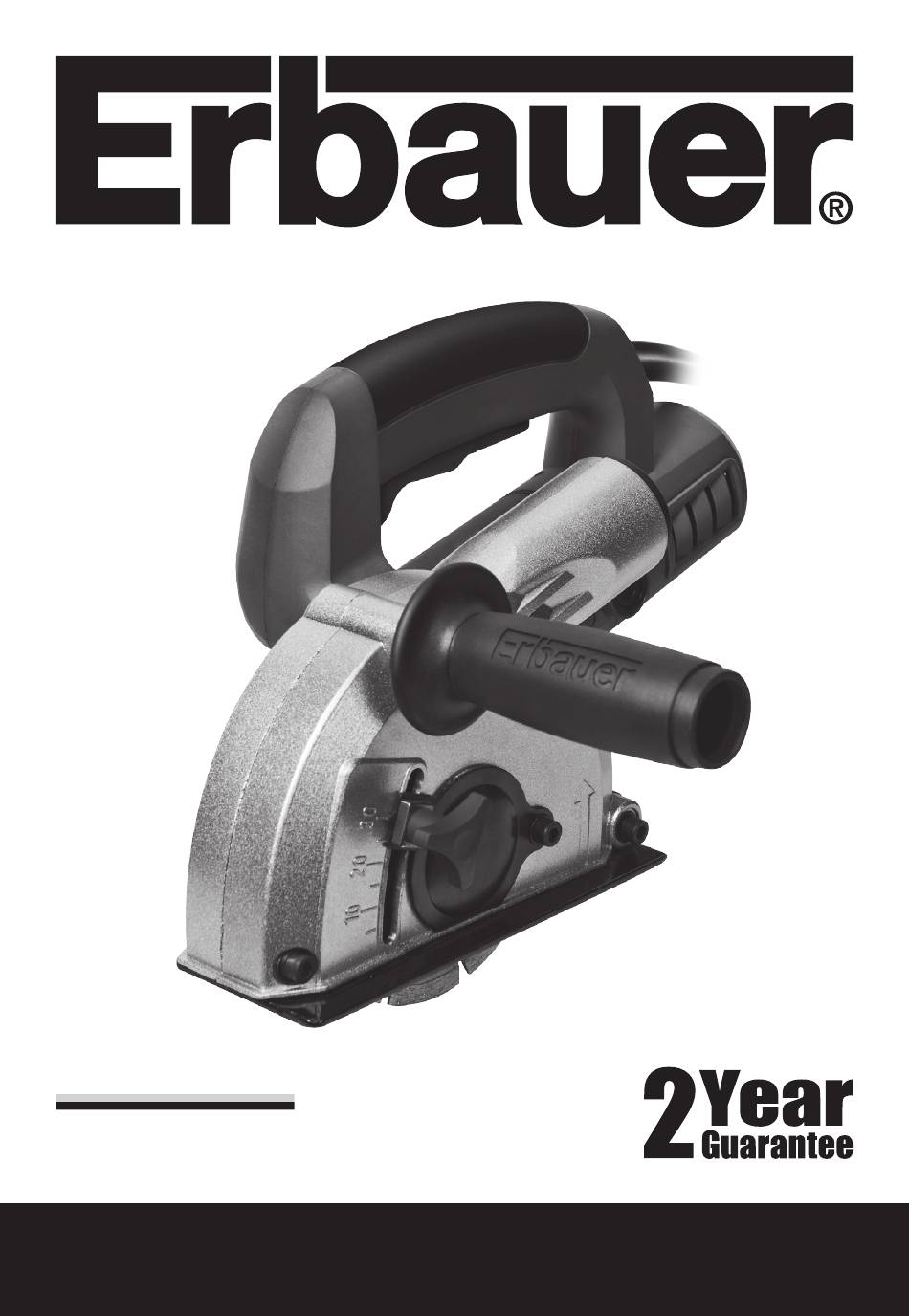

  • Page 1 ERB383WCH 1500W WALL CHASER...
  • Page 2 Original Instructions (Version 2.0)
  • Page 3 Congratulations on your purchase of a quality power tool from Erbauer (UK) Ltd. This product should give you reliable service but for your peace of mind this power tool does carry a 2 year guarantee, the terms of which are detailed below.

  • Page 4: General Power Tool Safety Warnings

    GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings and all instructions. Save all warnings and instructions for future reference. (corded) power tool or battery-operated (cordless) power tool. 1. Work area safety a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
  • Page 5 use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. 3. Personal safety a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool or medication.
  • Page 6 b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.
  • Page 7 ADDITIONAL SAFETY RULES FOR YOUR WALL CHASER a) The guard provided with the tool must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. Position yourself and bystanders away from the plane of the rotating wheel.
  • Page 8 j) Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and shop apron capable of stopping small abrasive or workpiece fragments. cause hearing loss. k) Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment.
  • Page 9 wheel which in turn causes the uncontrolled power tool to be forced binding. workpiece, the edge of the wheel that is entering into the pinch point conditions. procedures or conditions and can be avoided by taking proper precautions as given below. body and arm to allow you to resist kickback forces.

  • Page 10: Additional Safety Rules

    reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take h) Do not restart the cutting operation in the workpiece.
  • Page 11 the correct ampere rating for your power tool and is in a safe electrical condition. 9. Ensure your mains supply voltage is the same as indicated on the rating plate. 10. Your tool is double insulated for additional protection against a possible electrical insulation failure within the tool.
  • Page 12 VIBRATION The European Physical Agents (Vibration) Directive has been brought in to help reduce daily basis and the choice of tool. Further Advice can be found at www.hse.gov.uk Typical weighted vibration used with the current guidance on vibration. Warning: The use the correct accessory for the tool and ensuring it is sharp and in good condition. The tightness of the grip on the handles and if any anti vibration accessories are used.
  • Page 13 Health Surveillance any vibration related diseases at an early stage, prevent disease progression and help Double insulation earthed. Important note with a two-core cable and plug. 1500W WALL CHASER...
  • Page 14 SYMBOLS Double insulation Warning Wear ear protection Wear eye protection Waste electrical products should not be disposed of with household waste. or retailer for recycling advice.
  • Page 15 1500W WALL CHASER...
  • Page 16 ON/ OFF TRIGGER SWITCH SAFETY BUTTON OF SWITCH ATTACHMENT POINT FOR AUXILIARY HANDLE FIXED GUARD CONNECTION TO DUST EXTRACTION GUIDE WHEEL FLANGE CAP LOCK KNOB FLANGE CAP BASE PLATE OUTER FLANGE DISTANCE WASHERS CAP OF CARBON BRUSH (ON BOTH SIDES) SPINDLE LOCKING BUTTON DIAMOND CUTTING DISC CUTTING DIRECTION...

  • Page 17: Technical Data

    TECHNICAL DATA Rated voltage Rated power Rated speed Blade size Cutting depth Cutting width Protection class Weight NOISE INFORMATION A weighted sound pressure A weighted sound power & K ACCESSORIES 125mm Diamond disc 2pcs Spanner for screw loosen/tighten Hex key for blade change Chisel for material removal Auxiliary handle 1500W WALL CHASER...

  • Page 18: Operation

    OPERATION NOTE: Before using the tool, read the instruction book carefully. 1. FITTING CUTTING DISCS (See Fig. 1-11) Flange Warning: Please make sure the blade is lock diamond cutting disc which can cut knob concrete, masonry and paving. Always turn off and unplug the tool before Fig.
  • Page 19 Fig. 5 Fig. 6 Fig. 7 Fig. 8 1500W WALL CHASER...
  • Page 20 Fig. 8 2. ADJUSTING CHANNEL WIDTH width. The thickness of these washers is about the spanner (See Fig. 2), take out the distance width (See Fig. clockwise fully. Fig. 9 3. ADJUSTING CHANNEL DEPTH See Fig. 10) and (See Fig. 11). Set the cutting depth as the scale provided and tighten the knob clockwise to lock.
  • Page 21 5. CONNECTING DUST EXTRACTION (See Fig. adapter, which is designed for collect dust task. Make sure it is tightened securely on the dust cleaner. Fig. 13 6. SWITCHING ON/OFF (See Fig. 14) button to avoid accidental starting. To start the wall with a guide wheel.

  • Page 22: Possible Problems And Solutions

    POSSIBLE PROBLEMS AND SOLUTIONS Problem Possible cause Solution The overheating protection has been activated. out. 1) The overload protection will not run. has been activated. 2) The overheating protection has been activated. The cutting discs are bent Replace the cutting discs. or blunt.

  • Page 23: Maintenance

    MAINTENANCE Remove the plug from the socket before carrying out any adjustment, servicing or maintenance. Your power tool requires no additional lubrication There are no user serviceable parts in your power clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place.

  • Page 24: Plug Replacement

    PLUG REPLACEMENT (UK & IRELAND ONLY) instructions below. IMPORTANT BLUE = NEUTRAL BROWN = LIVE proceed as follows. The wire which is colored blue with N. Warning: approved 13AMP BS1363/A plug and the correct rated fuse. Note: engaging into a socket. Connect Brown L(live) (neutral)
  • Page 25 DECLARATION OF CONFORMITY Erbauer (UK) Ltd BA22 8RT Declare that the product 1500W Wall Chaser ERB383WCH EC Machinery Directive 2006/42/EC 2004/108/EC EC Low Voltage Directive 2006/95/EC 2011/65/EU 2012/19/EU EN 55014-1 EN 55014-2 EN 60745-1 EN 61000-3-2 EN 61000-3-3...
