Summary of Contents for Erbauer ERB096HTG

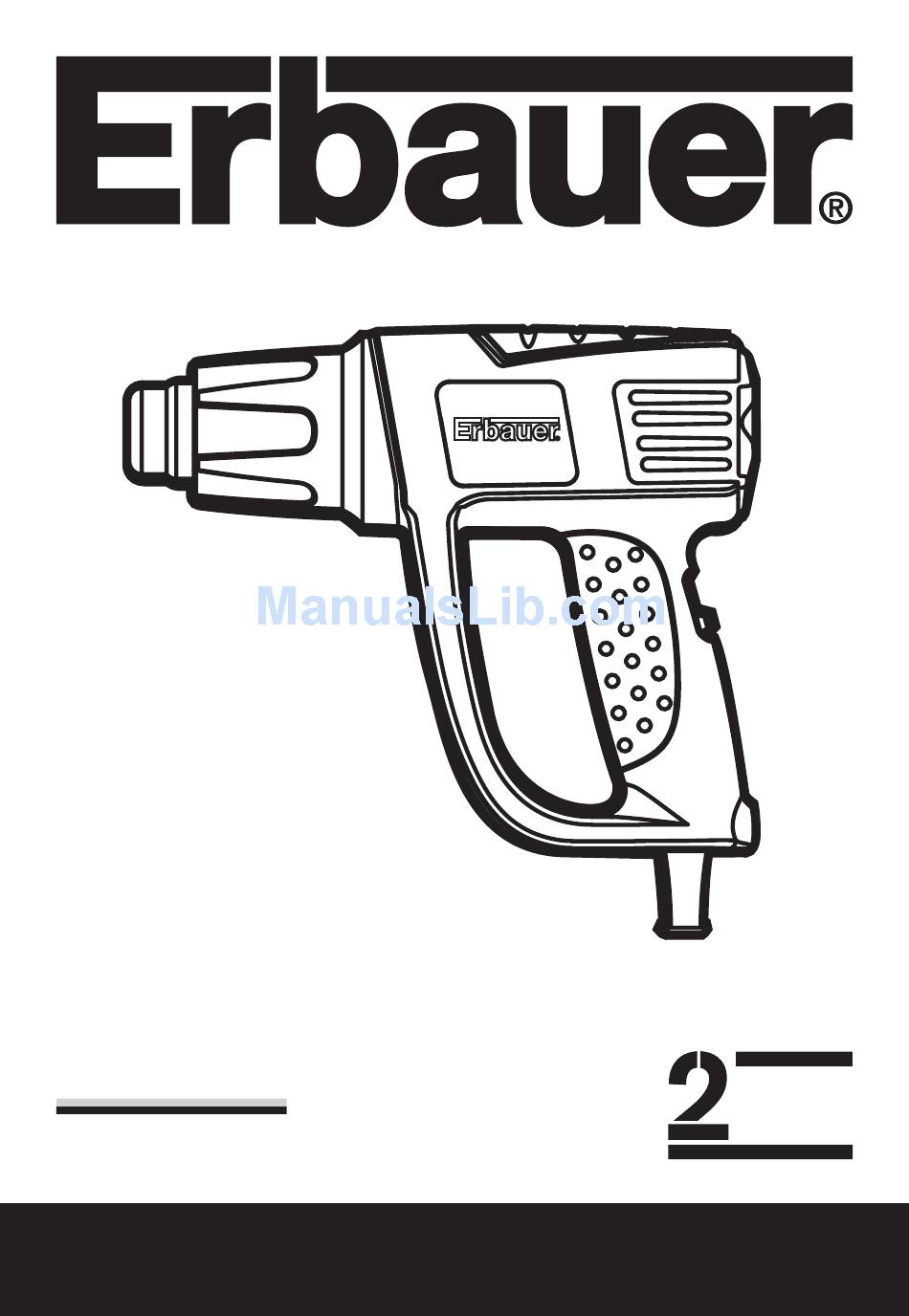

  • Page 1 WARRANTY YEARS ERB096HTG 2000W HEAT GUN...
  • Page 3 Congratulations on your purchase of a quality power tool from Erbauer (UK) Ltd. This product should give you reliable service but for your peace of mind this power tool does carries a 24-month guarantee, the terms of which are detailed below.
  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious in- jury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 5 power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in per- sonal injury.
  • Page 6 ADDITIONAL SAFETY POINTS FOR YOUR HEAT GUN 1 Before connecting the unit to the mains - ensure the unit is switched OFF as it will achieve maximum heat in just 60 seconds. 2 This unit reaches 650 Centigrade - always wear protective gloves and eyewear. 3 Always allow to cool before storing and never touch the heat deflector.
  • Page 7 VIBRATION The European Physical Agents (Vibration) Directive has been brought in to help re- duce hand arm vibration syndrome injuries to power tool users.The directive requires power tool manufacturers and suppliers to provide indicative vibration test results to enable users to make informed decisions as to the period of time a power tool can be used safely on a daily basis and the choice of tool.
  • Page 8 Avoid using tools in temperatures of 10C or less Plan your work schedule to spread any high vibration tool use across a number of days. Health Surveillance All employees should be part of an employer’s health surveillance scheme to help identity any vibration related diseases at an early stage, prevent disease progression and help employees stay in work.
  • Page 9 1 Nozzle 2 Heat protection sleeve 3 Main body 4 Cool air inlet 5 On/off switch / Air flow and temperature regulator 6 Button for setting the air flow 7 Button for setting the temperature 8 LCD display 9 AC mains lead 10 Scraper 11 Glass protection nozzle 12 Flat nozzle...
  • Page 10: Technical Data

    TECHNICAL DATA Rated Voltage 220 - 240 V ~ 50 Hz Power 2000 W Temperature/Flow rate I = 50ºC: 250-500 Ltr /min II = 2: 50ºC-650ºC: 250-500 Ltr /min Machine Weight 0.8 kg Protection Class ACCESSORIES Scraper Glass protection nozzle Flat nozzle Hook nozzle Concentration nozzle...
  • Page 11: Operating Instructions

    OPERATING INSTRUCTIONS Note: Before using the tool, read the instruction book carefully. BEFORE USING THE TOOL Before starting the job it is advisable to test the work piece for the ideal temperature to use. The description below gives an indication of the likely heat settings required but always start with the low heat setting and use the lowest heat set- ting possible to complete the task.
  • Page 12 will continue to run. When the unit has cooled to operating temperature the heating element will switch on again. WARNING; Do not leave the unit unattended at this time! 3. COLD AIR SETTING(I) Slide the on/off switch (5) to the position ‘I’. In this position the airflow can be changed from 250 l/min to 500 l/min.The temperature will remain at 50 C and cannot be changed.
  • Page 13 8 with a flashing arrow. When the required tem- perature is reached the arrow will stop flashing. The required temperature will be displayed. The target temperature can be increased in steps of 10 °C by pressing the “+” side of the temperature button 7 or reduced by pressing the “–”...
  • Page 14 5) SCRAPER(See Fig 8) The scraper is ideal for stripping paint from flat wooden surface and edges. Remember to clean the blade after use with wire wool and lightly oil before storing. 8. REMOVING PAINT Choose the required nozzle and fit onto the heat outlet.
  • Page 15: Maintenance

    11. SHRINK SEATING ELECTRICAL CA- BLES Choose the Hook nozzle and fit over heat outlet. Select a heat-shrinkable sleeve with a diameter matching that of the work piece. Evenly heat the sleeve. 12. BENDING PLASTIC TUBE (See Fig 9) Choose the Hook nozzle and fit over heat outlet. Turn the gun upside down and place on its clip stand so that it is resting on a secure bench with the nozzle pointing upwards, see picture.To...
  • Page 16: Environmental Protection

    ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. For further information visit www.recycle-more.co.uk PLUG REPLACEMENT The fuse in the main plug of your fast charger always is replaced with one of identical rating. Check the voltage given on your fast charger matches the supply voltage.
  • Page 17: Declaration Of Conformity

    Declaration of Conformity We, Importer Erbauer (UK) Ltd BA22 8RT Declare that the product 2000W HEAT GUN ERB096HTG Complies with the essential health and safety requirements of the following directives: Machinery Directive 98/37/EC Low Voltage Directive 2006/95/EC Electromagnetic Compatibility Directive 2004/108/EC...
  • Page 19 2000W HEAT GUN...
