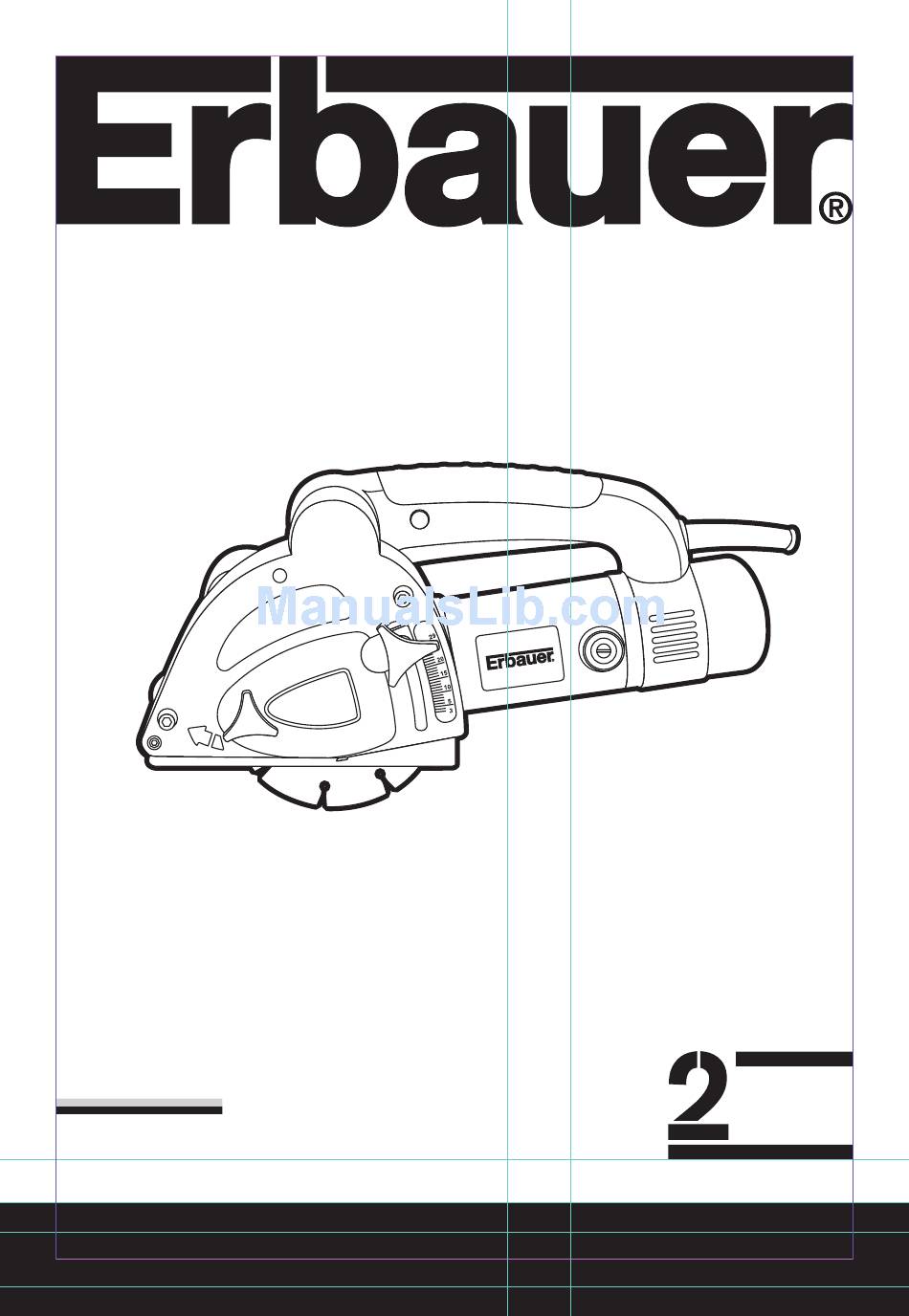

- Page 1 WARRANTY YEARS ERB125Y 1500W WALL CHASER...
- Page 3 Congratulations on your purchase of a quality power tool from Screwfix Direct Ltd. This product should give you reliable service but for your peace of mind this power tool does carry a 24-month guarantee, the terms of which are detailed below. If this product develops a fault within the guarantee period contact Screwfix Direct Ltd on Freephone 0500 41 41 41.
-
Page 4: Safety Instructions
SAFETY INSTRUCTIONS WARNING! Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. SAVETHESE INSTRUCTIONS 1. Work area. a. Keep work area clean and well lit. Cluttered and dark areas invite accidents. - Page 5 on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f.
- Page 6 You are advised to consider the risks associated with the materials you are working with and to reduce the risk of exposure.You should: - Work in a well-ventilated area. -Work with approved safety equipment, such as those dust masks that are specially designed to filter microscopic particles.
-
Page 7: Double Insulation
7. Caution 1) Use of any part or accessory, other than described in these instructions for use, may possibly lead to bodily injury. 2) Do not use blades which are deformed or cracked. 3) Do not use blades made of high speed steel. 4) Do not stop to use the blades by lateral pressure on the disc. - Page 8 10 11 12 7 16 17 18 Fig 1 1 ON/ OFF TRIGGER SWITCH 2 ‘LOCK OFF’ BUTTON 3 ATTACHMENT POINT FOR AUXILIARY HANDLE 4 FIXED GUARD 5 CONNECTION TO DUST EXTRACTION 6 GUIDE WHEEL 7 BOLT FOR FIXING GUARD 8 FLANGE CAP LOCK KNOB 9 FLANGE CAP 10 ADJUSTING CHANNEL DEPTH KNOB...
-
Page 9: Technical Data
12 CHANNEL DEPTH SCALE 13 OUTER FLANGE 14 DISTANCE WASHERS 15 CAP OF CARBON BRUSH (ON BOTH SIDES) 16 SPINDLE LOCKING BUTTON 17 DIAMOND CUTTING DISC 18 CUTTING DIRECTION ARROW 19 AUXILIARY HANDLE 20 CHISEL 21 SPANNER 22 ALLEN KEY TECHNICAL DATA Voltage: 230V~50Hz... -
Page 10: Operation Instructions
OPERATION INSTRUCTIONS WARNING Before using your wall chaser be sure to read this instruction manual carefully! NEVER press the spindle locking button while the machine is running. ALWAYS unplug the tool from the power supply BEFORE carrying out any adjustments or maintenance. - Page 11 Adjusting the groove width (the distance between the two diamond wheels) The width of grooving in the workpiece can be adjusted by changing the number of the space rings as shown in the table Groove width:29.8mm Groove width:25.5mm Groove width:21.2mm Groove width:16.9mm Groove width:12.6mm Groove width:8.3mm...
- Page 12 Finally lower the flange cap and re-tighten the flange cap lock knob and the adjusting channel depth knob.(see fig12) 3. Adjusting the groove depth You can adjust the depth of groove simply by loosening the adjusting channel depth knob and lowering or raising the base plate to the desired position .
- Page 13 button to prevent unintentional starting. To switch on simply depress the safety lock of button and then depress the ON/OFF trigger. To switch off release the ON/OFF trigger.(see fig 8. Using the Tool The machine can be used to cut grooves (Channels) in all manner of materials.
- Page 14 Fig 16 Fig 20 Fig 17 Fig 21 Fig 18 Fig 22 Fig 19 Fig 23...
- Page 15 Fig 28 Fig 24 Fig 29 Fig 25 Fig 26 Fig 27 1500W WALL CHASER...
-
Page 16: Maintenance
MAINTENANCE Problem Possible cause Solution The electric motor 1)The overheating 1) Wait several minutes until becomes hot and protection has been the machine has cooled down, cuts out. activated. then re-start the machine. 2)The motor is defective. 2)Take the machine to your dealer for inspection and / or repair. -
Page 17: Environmental Protection
ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. PLUG REPLACEMENT The fuse in the main plug of your power tool should always be replaced with one of identical rating. -
Page 18: Declaration Of Conformity
Houndstone Business Park Yeovil BA 22 8RT Declare that the product 1500W WALL CHASER ERB125Y Complies with the essential health and safety requirements of the following directives: 89/336/EEC, 93/68/EEC – EMC Directive. 73/23/EEC, 93/68/EEC – Low Voltage Directive 98/37/EC – Machinery Directive. - Page 19 1500W WALL CHASER...
