Adtec RD-71 Quick Start Manual

Thank you for your purchase of the Adtec RD-71 Receiver/Decoder. This
product is sold with optional demodulator hardware packages. Configurations and
indicators relevant to those add-on package are noted here. If you purchased this
product without a demodulator, please disreguard settings noted with an asterisks.
Quick View Status
For information on the core systems of the IRD, use
the down arrorw on the front panel to scroll through
these quick view menus.
Decoder Status Input TMR Encryption
DECODING ASI TMR:20.000M CAS:Free to Air
SVC: 00001 "Serv. Name" "Serv. Provider"
Service ID Service Name Service Provider
CODEC Chroma Bit Depth Delay Mode
COD: H.264 CHR: 422 BITD:08 DLYM: NORMAL
VRT: 18.012Mb/s RES:1920X1080 FR:59p
Video Rate Resolution Frame Rate
Video PID PCR PID PMT PID Aspect Ratio
VID:441 PCR:441 PMT:440 ARA:16X9
Type Bitrate
Audio 1-8
1:MU 384k 3:MU 384k 5:MU 384k 7:MU 384k
2:MU 384k 4:MU 384k 6:MU 384k 8:MU 384k
Audio PIDS 1- 8
Audio 1:11300 3:11400 5:11500 7:11600
PIDS 2:11300 4:11400 6:11500 8:11600
Input Mode/FEC Rcv Level Link Margin
RF1 32APSK9/10 Lvl: -52.0dB LMar:20.5dB
LOCKED DVB-S2 Sym:29.970Ms Es/No:29.8dB
Lock Status Type Symbol Rate Eb(s)/No
RTP Detected RTP Error Count Bu er
RTP: Y RTP-Err: 1234567 Bu er:1234ms
FEC: Y FecLoss: 1234567 FecCorr: 1234567
FEC Detected FEC Packet Loss FEC Corrections
Reset:
Should you need to reset your device, you can do
so via the front panel by pressing the MODE,
ESCAPE and RIGHT ARROW keys simultaneously.
Front Panel Menus:
Use Mode Button to move Use select to enter into edit
MODE
through top layer menus.
mode and
SELECT
Use arrows for navigation
save selection.
in submenus.
Special Keys:
Use the F2 button as a decimal.
F2
Adtec Digital US Sales +1-615-256-6619 International Sales +1-904-394-0389
RD-71
10-bit / 1080P Integrated Receiver Decoder
Services
LED Status ASI RF1 RF2
Decode
Select Service
Off - Decoder is idle
On - Decoder is active
Select First
ASI/IP/RF
Off - No services detected
On - Services detected
Lock 1 / Lock 2
Off - Tuner is not locked
On - Tuner is locked
IP Out
Off - IP Egress is idle
On - IP Egress is active
Bars
Off - B/T/ID options are disabled
On - B/T/ID are enabled
A1 - A8
Off - No Audio Decoding
On - Audio Decoding
Blinking - Fail to decode or pass
audio
Alarm
Off - No system alarms
On - System alarm
BISS
Off - Decryption config is OFF
On - Decryption config is ON
Busy
Off - No network activity
On - Network traffic present
Link
Model Indicators:
Off - No network detected
On - Connection active
enter to
ENTER
Decode ASI IP RF
Lock 1
RD-71
10-bit / 1080P MultiCODEC
Receiver / Decoder
A5
A1 A2 A3 A4
www.adtecdigital.com
RF Rx*
IP Rx
LB
IP << RF1 - RF2 >> Rx IP
Tuner State Rx Port
Downlink
SSM Address
Connector
Local Oscillator
Manual LO Latency
L-Band Time Out
Acquisition Range Error Rec.
S2X Rollo
LNB Polarity
LNB Tone
Modulation Type
Symbol Rate
ISI
RF Stats
LB demodulator
No demodulator
Lock 2
IP Out
Bars Alarm BISS DECODING ASI TMR:20.000M CAS:Free to Air
SVC: 00001 "Service Name" Service Provider
Link Busy
A8
A7
A6
Video Audio
Output Menu Audio Assign Order TimeCode Menu
Genlock Menu Audio Sync Mode AFD Menu
<< AUDIO 1-8 >>
CC Menu
Audio PID
Teletext Menu
O set
Dolby D Mode
SDI Matrix
ANALOG VOL.
(Audio 1-2 only)
SELECT
ENTER

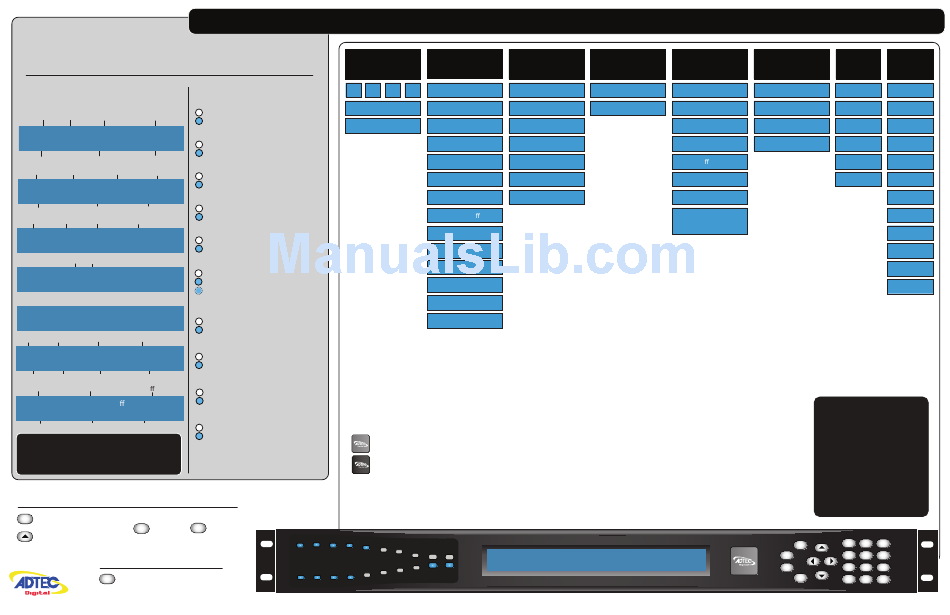

Quick Start Guide
VBI CAS System
Mode Login
Clear SW Duration
Backlight
Encrypt. SW
User ID 1 Network Menu
User ID 2 Time Menu
NTP Menu
TS Out Decrypt.
Alarm Menu
SNMP Menu
COM2
Name
Firmware
Feature Menu
Units ship with the front panel
logged in by default. If you become
logged out and are prompted for a
password, use the following key
sequence for access.
Press <Select> when panel displays
'User Login -- logged out'
Press <Up arrow>
Press <Select>
Press <Enter>
Press <Right arrow>
Press <Enter>
1 2abc 3def
MODE
4ghi 5jkl 6mno
7pqrs 8tuv 9wxyz
ESCAPE
F1 0 F2
2015 Adtec Digital
