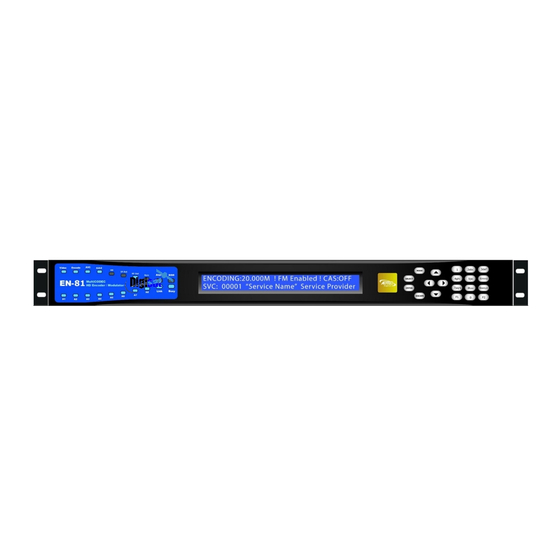

Adtec EN-81 Quick Start Manual

81
Multi-CODEC Encoder / Modulator
Thank you for your purchase of the Adtec
EN-81 Encoder. This product is sold with optional
modulator hardware packages. Configurations and
indicators relevant to those add-on packages are
noted here. If you purchased this product without a
modulator, please ignore settings noted with an
asterisks (*).
The most recent firmware releases are available
on our support website, www.adtecdigital.com.
Advanced users can find direct API command help
as part of the on-board web application, Help Tab.
Quick View Status
For information on the core systems, use the down
arrorw on the front panel to scroll through these
quick view menus.
Encoder Activity TMR Fault Mode Status Encryption
ENCODING:20.000M ! FAULT MODE! CAS:OFF
SVC: 00001 "Service Name" Service Provider
Service ID Service Name Service Provider
Input: Resolution Frame Rate Source
I/ RES: 1920X1080 59i INP: SDI
O/RES: 1920X1080 59i B/T/ID:OFF/OFF/OFF/OFF
Output: Resolution Frame Rate
Bars Status
Video PID PCR PID Codec Chroma
VID: 481 PCR:481 COD:H.264 CHR:420
VRT:60000000b/s ENT:CABAC A/F:OFF
Video Rate Entropy Mode Auto Fill
Audio Status
1:MU 384k 3:MU 384k 5:MU 384k 7:MU 384k
2:MU 384k 4:MU 384k 6:MU 384k 8:MU 384k
Audio PIDS 1- 8
Audio 1:11300 3:11400 5:11500 7:11600
PIDS 2:11300 4:11400 6:11500 8:11600
IP status RTP FEC Connector Transports 1 - 4
1: SEND ON BUR GIGE 3: OFF OFF OFF GIGE
2: OFF OFF OFF GIGE 4: OFF OFF OFF GIGE
Modulator Status Mod FEC Power RollO
TX:Enabled 32APSK_9/10 Pwr:-30dB RO:25%
Freq:1291MHz DVB-S2 Sym:15.00Ms Pilot:On
Frequency Mode Symbol Rate Pilot
Adtec Digital US Sales +1-615-256-6619 International Sales +1-904-394-0389
Services * RF Tx IPTx
TS Mux Rate Transmit << 1 - 4 >>
Program Number Type Mode
Service Name Mode Tx IP Address
Service Provider Frequency (MHz) Tx Port
Tables Power (dBm) DVB per IP
Splice PID Active Spectrum Inversion RTP
ASI Receive Mode Fec Frame FEC Mode
ASI Mode Roll O FEC L
Carrier ID Menu Pilot FEC D
Bars, Tones, ID Menu Rate Priority FEC TOS Bits
Symbol Rate TOS
Interface Rate TTL
Carrier Mode Tx Connector
10 MHz Clock
10 MHz Clock Comb.
AVC
HD
IP Out
RF Out
Bars
81
MultiCODEC
HD Encoder / Modulator
A8
A7
A6
A5
Encoder LED Status
Video
Off - If modulator is installed, no video is
detected or ASI Receive mode is enabled.
On - Video is detected.
Blink - No video is detected and fault mode
is active.
Encode
Off - Device is not encoding. Idle State
On - Device is encoding.
AVC
Off - MPEG 2 is selected for encode.
On - MPEG 4 (H264) is selected for
encode.
www.adtecdigital.com
Video Audio
Input Sampling Frequency Transport Stream ID
SDI Mode SDI Clock Source
CODEC ECC Words
Entropy Coding << 1 -8 >>
Chroma Input
Video Rate (b/s) Mode
Auto ll Type
Latency Rate
Latency Trim Level
Analog Aud. Level
Fault Mode
(1-2 Only)
Fault Resolution Sync
Aspect Ratio Musicam Mode
AFD IFB
GOP Type
SDI Pair
GOP Structure
GOP Size
SD Video Mode
3D-Sync Mode
ENCODING:20.000M ! FAULT MODE! CAS:OFF GOOD 20.000M ASI 00001 AdtecDigital
1920x1080 29i AC MU MU MU -- -- -- -
SVC: 00001 "Service Name" Service Provider
* RF Out
4:2:2
Off - Modulator is not transmitting.
Off - Encoding chroma type 4:2:0.
On - Modulator is transmitting.
On - Encoding chroma type 4:2:2.
Blink - Modulator is in test mode.
HD
Bars
Off - Encoding standard definition.
Off - B/T/ID options are disabled.
On - Encoding high definition.
On - B/T/ID are enabled.
IP Out
Off - Transport of IP via Ethernet or
A1 - A8
GigE is idle.
Off - Audio encoder cfg. is off.
On - Transport of IP via Ethernet or
On - Audio encoder cfg. is set to
GigE is active.
encode or passthru.

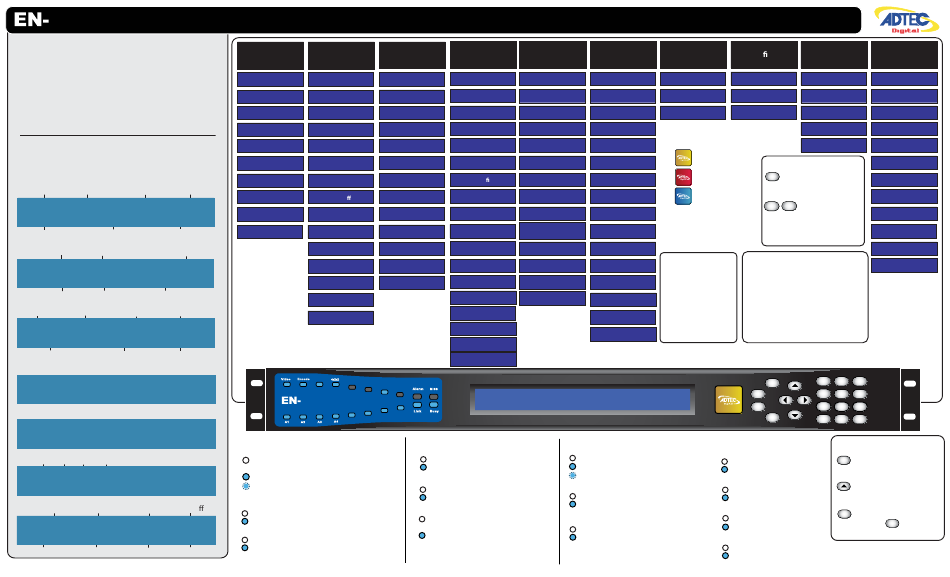

Quick Start Guide
PIDs VBI Pro le
Source Select
PMT PID Closed Caption Save
PCR PID VITC Menu Delete
Video PID
Model Indicators:
Audio 1 PID
L-Band modulator
Audio 2 PID Special Keys:
IF modulator
F2
Audio 3 PID
Use the F2 button as a decimal.
No modulator
Audio 4 PID
F1
Audio 5 PID
Press the F1 and F2
buttons simultaneously to jump
Audio 6 PID to Modulator Line-up Mode.
**Detail on reverse.
Audio 7 PID
Units ship with the front panel logged in
Reset:
Audio 8 PID
by default. If you become logged out and
Should you need to
are prompted for a password, use the
reset your device, you
Teletext PID following key sequence for access.
Press <Select> when panel displays
can do so via the front
'User Login -- logged out'
VITC PID
panel by pressing the
Press <Up arrow>
MODE, ESCAPE and
Press <Select>
AMOL PID
Press <Enter>
RIGHT ARROW keys
Press <Right arrow>
simultaneously.
Splice PID Press <Enter>
MODE
SELECT
ENTER
ESCAPE
System LED Status
Alarm
Off - No system alarms
On - System alarm
BISS
Off - No encryption set
On - Encryption active
Busy
Off - No network activity
On - Network traffic present
Link
Off - No network detected
On - Network communication active
CAS System
Mode Login
Clear Session Word Duration
Encrypt Session Word Backlight Dim Delay
User ID 1 Network Menu
User ID 2 Time Menu
NTP Menu
Alarm
SNMP Menu
F2
COM 2
Feature Menu
Name
Firmware Version
3def
1 2abc
4ghi 6mno
5jkl
7pqrs 8tuv 9wxyz
F1
0 F2
Front Panel Menus:
Use Mode Button to move
MODE
through top layer menus.
Use arrows for navigation
in submenus.
Use select to enter into edit
SELECT
mode and enter to save
ENTER
selection.
2013 Adtec Digital
