Getting Started
Thank you for your purchase of the Adtec edje-5110. This quick
start guide should help you with your initial setup. Further instructions
are available via the manual integrated into the on-board software. You
can view it by looking for the HELP tab once your unit is powered up and
you are connected to the web-application.
This manual and the most recent firmware are available on our support
website, www.adtecinc.com. Advanced users can also find direct API
command help as part of the on-board web application.

Front Panel LEDs:

System LED Status

Busy
Power is OFF
No Network Traffic
Power is ON
Network Traffic Present
Alarm
Aux
No System Alarm
Not Currently Used
Minor Alarm
Major Alarm
Link
No Link Detected
Link Active

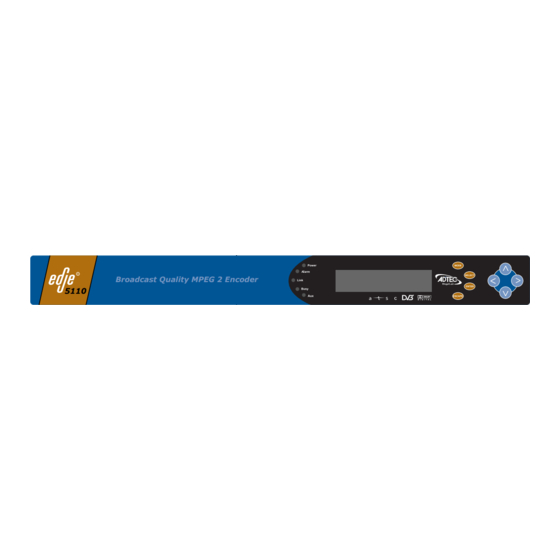

Broadcast Quality MPEG 2 Encoder
5110
Adtec Digital has adopted zero-con guration networking
technology, streamlining the setup and con guration processes for our
products. The use of this technology enables automatic discovery of Adtec
devices and services on an IP network. Used in tandem with the new
web-based control and con guration applications, we can now provide
one-click access to any device.
By using the built-in Bonjour® locator in the Apple® Safari® browser or
the plug-ins readily available for Internet Explorer® or Firefox® browsers,
users can locate all of the Adtec devices on a network via serial number or
custom name. Browse, Click, Control - it's that simple.
Adtec Digital Technical Support: 615.256.6619 www.adtecinc.com
Standard Definition MPEG2 Encoder
See back for more details.
* Optional Feature
06.09.2011

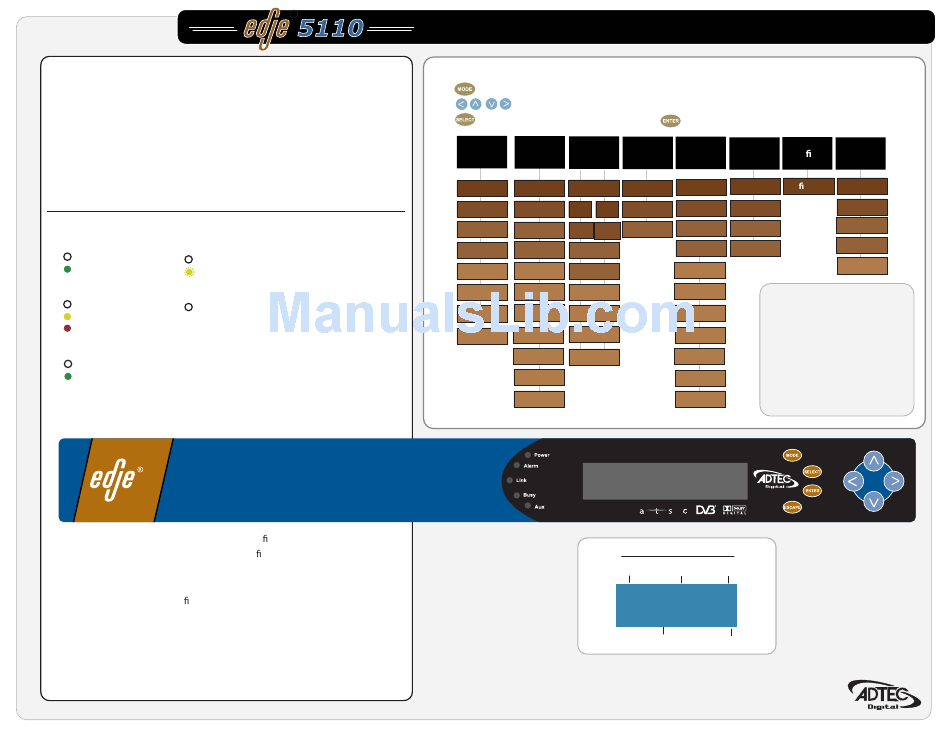

Front Panel Menus:

Use Mode Button to move through top layer menus.
Use arrows for navigation in submenus.
Use select to enter into edit mode and
Encoder
System
Transmit
Video
Audio
Login
Mux Rate
Status
Sample Freq.
Duration
Rate
A1
A2
Vid. AutoFill
Network
Chroma *
Mode Mode
IP Destination 1-4
Time
Input
Sync
NTP
GOP
Input
Alarm
GOP Str.
Mode
COM2
GOP Size
Type
Firmware
Hue
Bitrate
Bright.
Volume
Contr.
Satur.
Front Panel Status
Video Resolution Frame Rate Video Bit Rate
720 x 480 29i 15.00M
1MU 192K 2DD 192K 48
Audio Input 1 & 2
Quick Start Guide
enter to save selection.
PIDS
Pro le
Encrypt. *
Table
Mode
Pro le 1-10
PCR
Table
Clear Word
Prog. No.
VBI Source
Encrypt Word
Map PID
Closed Cap.
User ID 1
Vid. PID
Service Name
UserID 2
Aud.1 PID
Aud. 2 PID
Units ship with the front panel
logged in by default. If you become
TS ID
logged out and are prompted for a
password, use the following key
AMOL
sequence for access.
Press <Select> when panel displays
Splice
'User Login -- logged out'
Press <Up arrow>
VITC Mode
Press <Select>
Press <Enter>
Press <Right arrow>
VITC PID
Press <Enter>
Sampling Rate
