Summary of Contents for Yealink 300628

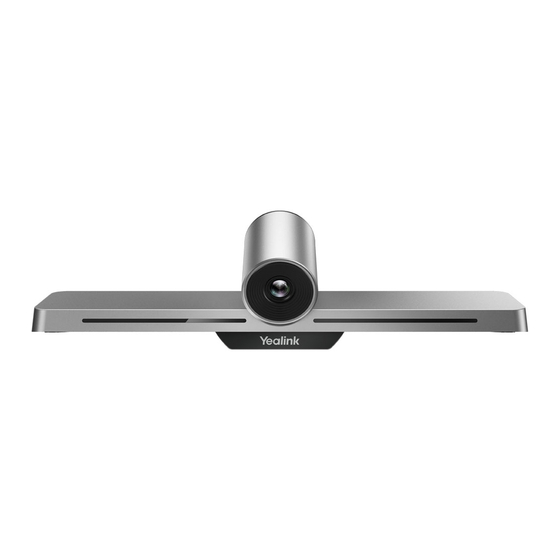

- Page 1 Yealink Network Technology CO., LTD Yealink VC200 Video Conferencing Endpoint Quick Start Guide V32.3 Applies to firmware version 80.32.0.3 or later...
-
Page 2: Package Contents
We recommend that you use the accessories provided or approved by Yealink. The use of unapproved third-party accessories may result in reduced performance. Use the Yealink original PoE adapter (54V/0.56A) to charge the endpoint only. The use of the third-party PoE adapter may cause the damage to the endpoint. - Page 3 Mount on a Wall You can purchase a bracket to mount your endpoint on a wall. The recommended height is 1.6m above the ground. Hole depth: 30mm Hole diameter: 6mm T4×30 screws Expansion bolts 1/4”-20 UNC screw Mount onto a TV Stand or a Tripod You need to purchase a TV stand or a tripod separately.
-
Page 4: Sharing Content
Audio MINI DP HDMI 1.2m 1.2m Mini-DP Cable HDMI Cable VC Hub/Phone port on VC200 codec Wireless Sharing WPP20 Wireless Presentation Pod For more information on WPP20 wireless presentation pod, refer to Yealink WPP20 Wireless Presentation Pod Quick Start Guide. - Page 5 CP960 Conference Phone Connections You can purchase CP960 conference phone separately, it can act as the audio input or output device. CP960 VC Hub/Phone port on VC200 codec Ethernet Cable VCH50 Codec Audio MINI DP HDMI If you do not need the VCH50 video conferencing hub to share content, You can connect PSE of CP960 conference phone to the VC Hub/Phone port directly.
- Page 6 3. Select the desired platform from the pull-down list of Platform Type. 4. Configure the desired platform and log in. Traditional Deployment If you deploy endpoint in the head office, make sure it is reachable from public network. If you deploy endpoint in the branch office, use intelligent traversal to deploy it or just follow the same steps as for the head office.
-
Page 7: Troubleshooting
Troubleshooting Connectivity Testing After installation and deployment, you can test the endpoint by dialing the Yealink Demo Room (117.28.251.50 or 117.28.234.45 ). If you can’t dial out successfully, please contact your IT administrator to check the network. - Page 8 “Easy collaboration, high productivity.” The company’s high-quality UC terminal solutions enhance the work efficiency and competitive advantages of its customers in over 100 countries. Yealink is the world’s second-largest SIP phone provider and is number one in the China market.
