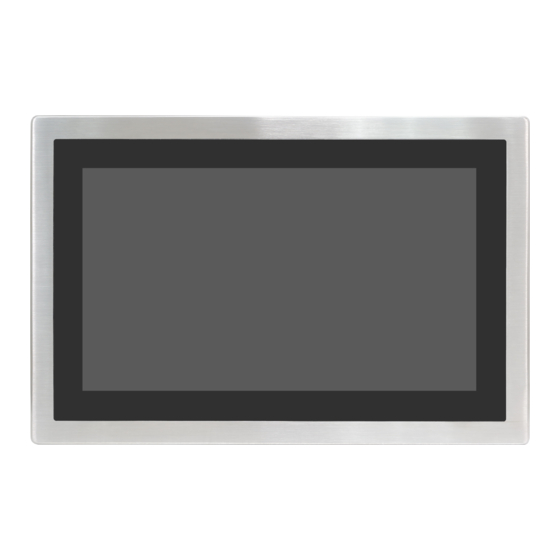

15”, 15.6”, 19”, and 21.5” full ip66 stainless steel designed with m12 waterproof connector of panel pc series.
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AEx-8XXP(H)
15", 15.6", 19", and 21.5" Full IP66 Stainless Steel Designed with M12 waterproof
connector of Panel PC Series.
User Manual
Release Date
Revision
Jan. 2018
V1.0
®2018 Aplex Technology, Inc.
All Rights Reserved.
Published in Taiwan
Aplex Technology, Inc.
15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan
URL:
http://www.aplextec.com/zh/home.php
Tel: 886-2-82262881
Fax: 886-2-82262883

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AEx-815P and is the answer not in the manual?

Questions and answers

Related Manuals for Aplex AEx-815P

Summary of Contents for Aplex AEx-815P

  • Page 1 Panel PC Series. User Manual Release Date Revision Jan. 2018 V1.0 ®2018 Aplex Technology, Inc. All Rights Reserved. Published in Taiwan Aplex Technology, Inc. 15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan URL: http://www.aplextec.com/zh/home.php...

  • Page 2: Revision History

    Revision History Reversion Date Description 2017/11/24 For Preliminary Release 2018/01/02 Official version AEx-8XXP(H) Series User Manual...

  • Page 3: Warning!/Caution

    This information in this document is subject to change without notice. In no event shall Aplex Technology Inc. be liable for damages of any kind, whether incidental or consequential, arising from either the use or misuse of information in this document or in any related materials.

  • Page 4: Packing List

    ATEX Instruction Guide SAFETY INSTRUCTIONS Read these instructions carefully, and look at the equipment to become familiar with the device before trying to install, operate, or maintain it. The following special messages may appear throughout this documentation or on the equipment to warn of potential hazards or to call attention to information that clarifies or simplifies a procedure.

  • Page 5: Safety Precautions

    Notice Under certain extreme circumstances, the label may generate an ignition-capable level of electrostatic charge. Therefore the equipment shall not be installed in a location where the external conditions are conducive to the build-up of electrostatic charge on the label. In addition, the label shall only be cleaned with a damp cloth.

  • Page 6: Table Of Contents

    Table of Contents Revision History…………………………………………………………………………………………………….1 Warning!/Caution………………..……………........…………………………….…2 Packing List…………………………………….……………………………………………………………………..3 Safety Precautions…………………………………………………………………….…..……………………..4 Chapter 1 Getting Started 1.1 Features………………………..………………………...…………………………..7 1.2 Specifications…………………...………………………………………………….7 1.3 Dimensions………………………..…………………………………………..….9 1.4 Brief Description of AEx-8XXP(H)………………………….……….……11 1.5 VESA Mounting…………………………………………………………………12 1.6 Panel Mounting…………………………………………………………………12 Chapter 2 Hardware 2.1 Motherboard Introduction……………………...……………..………..13 2.2 Specifications…………………………..…………………………………………13 2.3 Jumpers and Connectors Location……………………………………...17 2.4 Jumpers Setting and Connectors…………………………………..……18 Chapter 3 BIOS Setup...
  • Page 7 Chapter 5 Touch Screen Installation 5.1 Windows 8.1/10 Universal Driver Installation……..………………63 5.2 Software Function…………….…………………………………….……..67 Figures Figure 1.1: Dimensions of AEx-815P(H)……..…………………..………………..9 Figure 1.2: Dimensions of AEx-816P…………..…………………..………………..9 Figure 1.3: Dimensions of AEx-819P(H)……..…………………..………………..10 Figure 1.4: Dimensions of AEx-821P…………..…………………..………………..10 Figure 1.5: Front View of AEx-8XXP(H).…………………………………….…….….11 Figure 1.6: Rear View of AEx-8XXP(H)……..…………………………………….….11...

  • Page 8: Getting Started

    Full IP66 grade with M12 waterproof connector  DC 9~36V wide range power input  Projective capacitive touch  316 Stainless steel design 1.2 Specifications AEx-815P(H) AEx-816P AEx-819P(H) AEx-821P System Onboard Intel Celeron N2930 1.83GHz Processor Chipset Memory Onboard 8GB DDR3L IO Port 1 x M12 for 2 x USB2.0 with metal waterproof CAP...
  • Page 9 Contrast Ratio 800: 1 700: 1 1000: 1 5000: 1 Viewing Angle 160(H) / 150(V) 160(H) / 140(V) 170(H) / 160(V) 178(H) / 178(V) Backlight Lifetime 50,000 hrs 50,000 hrs 50,000 hrs 50,000 hrs Power Power Input DC 9~36V Power Consumption MAX: 22.2W MAX: 24.7W MAX: 33.3W...

  • Page 10: Dimensions

    1.3 Dimensions Figure 1.1: Dimensions of AEx-815P(H) Figure 1.2: Dimensions of AEx-816P AEx-8XXP(H) Series User Manual...

  • Page 11: Figure 1.3: Dimensions Of Aex-819P(H)

    Figure 1.3: Dimensions of AEx-819P(H) Figure 1.4: Dimensions of AEx-821P AEx-8XXP(H) Series User Manual...

  • Page 12: Brief Description Of Aex-8Xxp(H)

    1.4 Brief Description of AEx-8XXP(H) Series AEx-8XXP(H) are panel PC series models for ATEX certification, which comes with full waterproof with IP66 level designed. It is powered by Intel Celeron N2930 processor and supports 8GB DDR3L onboard memory. It comes with a 15”, 15.6”, 19”, and 21.5”...

  • Page 13: Vesa Mounting

    1.5 VESA Mounting The AEx-8XXP(H) series is designed to be VESA mounted as shown in Picture. Just carefully place the unit through the hole and tighten the given screws from the rear to secure the mounting. Figure 1.7: AEx-8XXP(H) Series VESA Mounting 1.6 Panel Mounting There are six holes located along the four sides of the panel PC.

  • Page 14: Chapter 2 Hardware

    Chapter 2 Hardware 2.1 Motherboard Introduction SBC-7111 is a 4" industrial motherboard developed on the basis of Intel Bay trail-I/M Processors, which provides abundant peripheral interfaces to meet the needs of different customers. Also, it features dual GbE ports, 4-COM ports and one Mini PCIE configuration, one VGA port, one HDMI port, one LVDS interface.
  • Page 15 BIOS AMI/UEFI Storage 1 x SATAII Connector (7Pin, option) 1 x SATAII Connector (7Pin + 15Pin) 1 x SD Slot (USB2 to SD) Ethernet 2 x PCIe Gbe LAN by Intel 82574L USB 3.0 Hub(USB5534): 2 x USB 3.0/USB 2.0 (type A)stack ports (E2_USB5/E2_USB6) 1 x USB 2.0 for Touch controller (E2_USB7) 1 x USB 2.0 Pin header for CN1 (E2_USB8) USB 2.0 Hub(USB2514)
  • Page 16 1 x 4-pin power input connector (DC_IN2/DC12V) Switches and LED 1 x Power on/off switch (BT1/BT2/P_SW/CN2/Cn3) Indicators 1 x Reset (CN2) 1 x Power LED status (CN1) 1 x HDD LED status (CN2) 1 x Buzzer External I/O port 2 x COM Ports (COM1/COM2) 2 x USB 3.0/2.0 Ports (stack) 2 x RJ45 GbE LAN Ports 1 x HDMI Port...

  • Page 17: Figure 2.1: Motherboard Dimensions

    (units :mm) Figure 2.1: Motherboard Dimensions AEx-8XXP(H) Series User Manual...

  • Page 18: Jumpers And Connectors Location

    2.3 Jumpers and Connectors Location Figure 2.2: Jumpers and Connectors Location- Board Top Figure 2.3: Jumpers and Connectors Location- Board Bottom AEx-8XXP(H) Series User Manual...

  • Page 19: Jumpers Setting And Connectors

    2.4 Jumpers Setting and Connectors 1. U2: (FCBGA1170), onboard Intel Bay trail-I/M Processors. Model Processor Number Cores/Threads Remarks SBC-7111-N2930-4G SBC-7111-N2930-4G-SW N2930 1.83 up to 4 / 4 4.5/7.5W SBC-7111-N2930P-4G 2.16GHz SBC-7111-N2930-2G SBC-7111-N2930P-CN3V-2G SBC-7111-N2930-8G SBC-7111-E3845-4G E3845 1.91GHz 4 / 4 option 2.
  • Page 20 Pin# Signal Name VBAT Ground 6. DC_IN1: (5.08mm Pitch 1x3 Pin Connector), DC9~36V System power input connector. Pin# Power Input DC+6V~36V Ground Model DC_IN1 SBC-7111-N2930-4G 180°Connector SBC-7111-N2930-4G-SW 180°Connector SBC-7111-N2930-2G 180°Connector SBC-7111-N2930-8G 180°Connector SBC-7111-E3845-4G 180°Connector SBC-7111-N2930P-4G 45°Connector SBC-7111-N2930P-CN3V-2G 45°Connector 7. DC_IN2 (option): (2.0mm Pitch 1x4 wafer Pin Header) DC12V System power input connector.
  • Page 21 ● ● ○ SBC-7111-E3845-4G ○ ● ○ SBC-7111-N2930P-CN3V-2G SBC-7111-N2930-4G-SW ○ ● ● 9. FAN1(option): (2.54mm Pitch 1x3 Pin Header), Fan connector, cooling fans can be connected directly for use. You may set the rotation condition of cooling fan in menu of BIOS CMOS Setup.
  • Page 22 VGA hot plug setting: VGA1 (Pin Header) Function Pin4-Pin6 (Close) VGA Simulation Disabled Pin4-Pin6 (Open) VGA Simulation Enabled Use the 2.0mm jumper cap to close pin4 and pin6 11. HDMI1: (HDMI 19P Connector), High Definition Multimedia Interface connector. 12. JP6: (2.0mm Pitch 2x2 Pin Header), LVDS jumper setting.
  • Page 23 Pin# Signal Name +DC12V +DC12V Ground Ground BKLT_EN_OUT BKLT_CTRL 15. CN1: (1.25mm Pitch 2x20 Connector, DF13-40P), for 18/24-bit LVDS output connector, fully supported by Parad PS8625(DP to LVDS), the interface features dual channel 24-bit output. Low Voltage Differential Signaling, A high speed, low power data transmission standard used for display connections to LCD panels.
  • Page 24 16. JP4 (Reserve): (2.0mm Pitch 2x2 Pin Header). Function Close 3-4 (default) Open 1-2 (default) Close 3-4 (option) Hardware Enabled 17. TCH1: (2.0mm Pitch 1x6 wafer Pin Header), internal Touch controller connector. Pin# Signal Name SENSE GND_EARCH Touch Interface Setting EC(U44) Data TCH1(PM6000) Option A...
  • Page 25 Function S_232 Pin# (switch) RS232 (Default) ON: Pin1, Pin2, Pin3, Pin4, Pin5 RS422 (option) OFF: Pin1, Pin2, Pin3, Pin4, Pin5 RS485 (option) OFF: Pin1, Pin2, Pin3, Pin4, Pin5 20. S_422: (Switch), COM1 setting, it provides selectable RS232 or RS422 or RS485 serial signal output.
  • Page 26 RS422 (option) Pin# Signal Name 422_RX+ 422_RX- 422_TX- 422_TX+ Ground BIOS Setup: Advanced/F81216SEC Super IO Configuration/Serial Port 1 Configuration 【RS-422】 RS485 (option) Pin# Signal Name 485- 485+ Ground BIOS Setup: Advanced/F81216SEC Super IO Configuration/Serial Port 1 Configuration 【RS-485】 22. JP2: (2.0mm Pitch 2x3 Pin Header), COM2 jumper setting, pin 1~6 are used to select signal out of pin 9 of COM2 port.
  • Page 27 23. COM2: (Type DB9M),Rear serial port, standard DB9 Male serial port is provided to make a direct connection to serial devices. Pin# Signal Name DCD# (Data Carrier Detect) RXD (Received Data) TXD (Transmit Data) DTR (Data Terminal Ready) Ground DSR (Data Set Ready) RTS (Request To Send) CTS (Clear To Send) JP2 select Setting (RI/5V/12V)
  • Page 28 ○ SBC-7111-E3845-4G ○ SBC-7111-N2930-2G SBC-7111-N2930-8G ○ 26. SATA2(option): (SATA 7Pin), SATA Connectors, one SATA connector are provided, with transfer speed up to 3.0Gb/s. Model SATA2 (Connectors) SBC-7111-N2930-4G ○ SBC-7111-N2930-4G-SW ○ ○ SBC-7111-N2930P-4G ○ SBC-7111-N2930P-CN3V-2G ○ SBC-7111-E3845-4G SBC-7111-N2930-2G ○ SBC-7111-N2930-8G ○ 27.
  • Page 29 Signal Name Pin# Pin# Signal Name GND_AUD LINE-OUT-L LINE-OUT-R FRONT_JD LINE1_JD LINE_IN-L LINE-IN-R MIC-IN-L MIC-IN-R GND-AUD MIC1_JD 32. LINE_OUT1: (Diameter 3.5mm Jack), HD Audio port, an onboard Realtek ALC662-VD codec is used to provide high quality audio I/O ports. Line Out can be connected to a headphone or amplifier.
  • Page 30 RJ-45 Ethernet ports are provided. Used intel 82574L chipset, LINK LED (green) and ACTIVE LED (yellow) respectively located at the left-hand and right-hand side of the Ethernet port indicate the activity and transmission state of LAN. Model RJ45(LAN1) RJ45(LAN2) SBC-7111-N2930-4G ●...
  • Page 31 COM5/COM6 BIOS Setup： Advanced/IT8518Super IO Configuration/Serial Port 1 Configuration【RS-485】 Advanced/IT8518Super IO Configuration/Serial Port 1 Configuration【RS-422】 Advanced/IT8518Super IO Configuration/Serial Port 2 Configuration【RS-485】 Advanced/IT8518Super IO Configuration/Serial Port 2 Configuration【RS-422】 37. EC_GPIO1(option): (2.0mm Pitch 1X10 Pin Header)For expand connector, it provides eight GPIO. Pin# Signal Name Ground...
  • Page 32 PS/2 KB PS2_KBCLK PS2_KBDATA PS/2 KB COM4_RI COM4_DCD- COM4 COM4 COM4_TXD COM4_RXD (UART) (UART) COM4_DTR RICOM4_RTS- COM4_DSR COM_CTS- Ground Ground COM3_RI COM3_DCD- COM3 COM3 COM3_TXD COM3_RXD (UART) (UART) COM3_DTR DSRCOM3_RTS- COM3_DSR DTRCOM3_CTS- GPIO23 SOC_GPIO23 ICH_GPIO22 GPIO12 GPIO25 SOC_GPIO25 ICH_GPIO24 GPIO24 Ground Ground PCIE_TX0_DN...

  • Page 33: Bios Setup

    Chapter 3 BIOS Setup 3.1 Operations after POST Screen After CMOS discharge or BIOS flashing operation, press [Delete] key to enter CMOS Setup. After optimizing and exiting CMOS Setup, the POST screen displayed for the first time is as follows and includes basic information on BIOS, CPU, memory, and storage devices.

  • Page 34: Main Settings

    3.3 Main Settings System Time: Set the system time, the time format is: Hour : 0 to 23 Minute : 0 to 59 AEx-8XXP(H) Series User Manual...

  • Page 35: Advanced Settings

    Second : 0 to 59 System Date: Set the system date, the date format is: Day: Note that the ‘Day’ automatically changes when you set the date. Month: 01 to 12 Date: 01 to 31 Year: 1998 to 2099 3.4 Advanced Settings 3.4.1 ACPI Settings Enable ACPI Auto Conf: [Disabled]...
  • Page 36 [Enabled] [Disabled] ACPI Sleep State: [S3 (Suspend to RAM) ] [Suspend Disabled] Lock Legacy Resources: [Disabled] [Enabled] 3.4.2 F81216SEC Super IO Configuration Super IO chip F81216SEC Serial Port 1 Configuration UART1 Mode Selection： [RS-232] [RS-485] [RS-422] Serial Port 2 Configuration Change Settings [Auto] Serial Port 3 Configuration...
  • Page 37 3.4.5 Serial Port Console Redirection COM0 Console Redirection [Disabled] [Enabled] Console Redirection Settings Legacy Console Redirection Legacy Console Redirection settings Serial Port for Out-of-Band Management/ Windows Emergency Management Services (EMS) Console Redirection [Disabled] [Enabled] Console Redirection Settings 3.4.6 CPU Configuration Socket 0 CPU Information Intel(R) Atom(TM) CPU E3845 @ 1.91GHz CPU Signature...
  • Page 38 Limit CPUID Maximum: [Disabled] [Enabled] Execute Disable Bit: [Enabled] [Disabled] Intel Virtualization Technology: [Enabled] [Disabled] Power Technology [Energy Efficient] [Disabled] [Custom] 3.4.7 PPM Configuration CPU C State Report [Enabled] [Disabled] Max CPU C-state [C7] [C6] [C1] SOix [Disabled] [Enabled] 3.4.8 Thermal Configuration Parameters 3.4.9 IDE Configuration Serial-ATA(SATA) [Enabled]...
  • Page 39 SATA ODD Port [No ODD] [Porto ODD] [Port1 ODD] [Disabled] SATA Mode [AHCI Mode] [IDE Mode] Serial-ATA Port 0 [Enabled] [Disabled] SATA Port0 Hotplug [Disabled] [Enabled] Serial-ATA Port 1 [Enabled] [Disabled] SATA Port1 Hotplug [Disabled] [Enabled] SATA Port0 Not Present SATA Port1 Not Present 3.4.10 Miscellaneous Configuration...
  • Page 40 High Precision Timer [Enabled] [Disabled] Boot Timer with HPET Timer [Disabled] [Enabled] PCI Express Dynamic Clock Gating [Disabled] [Enabled] OS Selection Use the OS Selection option to select an operating system for the system. Note: Users must go to this item to select the OS mode before installing corresponding OS driver, otherwise problems will occur when installing the driver.
  • Page 41 LPSS I2C #5 Support [Enabled] LPSS I2C #6 Support [Enabled] LPSS I2C #7 Support [Enabled] [Disabled] Touch Pad [Disabled] I2C touch Device Address LPSS HSUART #1 Support [Disabled] LPSS HSUART #2 Support [Disabled] LPSS PWM #1 Support [Enabled] LPSS PWM #2 Support [Enabled] LPSS SPI Support [Enabled]...
  • Page 42 [Do not launch] Other PCI devices [UEFI] [Do not launch] [Legacy] 3.4.15 SDIO Configuration 3.4.16 USB Configuration USB Configuration USB Module Version 8.11.02 USB Devices: 1 keyboard, 1 Mouse，2 Hubs Legacy USB Support: [Enabled] [Disabled] XHCI Hand-off: [Enabled] [Disabled] EHCI Hand-off: [Disabled] [Enabled] USB Mass Storage Driver Support...

  • Page 43: Chipset Settings

    3.4.17 Platform Trust Technology 3.4.18 Security Configuration 3.5 Chipset Settings 3.5.1 Host Bridge ►Intel IGD Configuration ►IGD – LCD Control Force Lid Status [On] [Off] [Auto] ALS Support [Disabled] IGD Flat Panel [Auto] Pannel Scaling [Auto] ►Memory Frequency and Timing ►Graphics Power Management Control Memory Information Total Memory...
  • Page 44 Max TOLUD [Dynamic] [2GB] [2.25GB] [2.5GB] [2.75GB] [3GB] 3.5.2 South Bridge ►Azalia HD Audio ►USB Configuration USB OTG Support [Disabled] USB VBUS [On] XHCI Mode [Smart Auto] USB2 Link Power Management [Enabled] USB 2.0(EHCI) Support [Enabled] USB EHCI debug [Disabled] USB Per Port Control [Enabled] USB Port 0...

  • Page 45: Security Settings

    3.6 Security Settings 3.6.1 Administrator Password 3.6.2 User Password Type the password with up to 20 characters and then press Enter key. This will clear all previously typed CMOS passwords. You will be requested to confirm the password. Type the password again and press Enter key.

  • Page 46: Boot Settings

    will be disabled. You will have direct access to BIOS setup without typing any password after system reboot once the password is disabled. Once the password feature is used, you will be requested to type the password each time you enter BIOS setup. This will prevent unauthorized persons from changing your system configurations.

  • Page 47: Save & Exit Settings

    [Enabled] Fast Boot [Disabled] [Enabled] Boot Option Priorities Boot Option #1 Sets the system boot order Hard Drive BBS Priorities [SATA PM:*** … ] Boot Option #1 SATA PM:***… ****** Disabled 3.8 Save & Exit Settings Save Changes and Exit Save &...
  • Page 48 Discard Changes and Ext Exit Without Saving Quit without saving? [Yes] [No] Save Changes and Reset Save & reset Save Configuration and reset? [Yes] [No] Discard Changes and Reset Reset Without Saving Reset without saving? [Yes] [No] Save Changes Save Setup Values Save configuration? [Yes] [No] Discard Changes...

  • Page 49: Chapter 4 Installation Of Drivers

    Chapter 4 Installation of Drivers This chapter describes the installation procedures for software and drivers under the windows 8.1 & 10. The software and drivers are included with the motherboard. The contents include Intel/VGA chipset driver, Audio driver, Com Driver, and TXE(Win) Driver Installation instructions are given below.

  • Page 50: Intel(R) Atomtm Soc Chipset

    4.1 Intel(R) AtomTM SoC Chipset To install the Intel chipset driver, please follow the steps below. Step 1. Select Intel (R) AtomTM SoC Chipset from the list Step 2. Here is welcome page. Please make sure you save and exit all programs before install.
  • Page 51 Step 3. Read the license agreement. Click Accept to accept all of the terms of the license agreement. Step 4. Click Install to begin the installation. AEx-8XXP(H) Series User Manual...
  • Page 52 Step 5. Click Finish to exit the wizard. AEx-8XXP(H) Series User Manual...

  • Page 53: Intel(R) Vga Chipset

    4.2 Intel(R) VGA Chipset To install the Intel (R) VGA Chipset, please follow the steps below. Step 1. Select Intel(R) VGA Chipset from the list. Step 2. . Click Next. AEx-8XXP(H) Series User Manual...
  • Page 54 Step 3. Choose automatically run function and Click Next to setup program. Step 4. Read the license agreement. Click Yes to accept all of the terms of the license agreement. AEx-8XXP(H) Series User Manual...
  • Page 55 Step 5. Click Next to continue. Step 6. Click Next to continue. AEx-8XXP(H) Series User Manual...
  • Page 56 Step 7. Select Yes, I want to restart this computer now. Click Finish, then remove any installation media from the drives. AEx-8XXP(H) Series User Manual...

  • Page 57: Realtek Alc662 Hd Audio Driver Installation

    4.3 Realtek ALC662 HD Audio Driver Installation To install the Realtek ALC662 HD Audio Driver, please follow the steps below. Step 1. Select Realtek AL662 HD Audio Driver from the list Step 2. Click Next to continue. AEx-8XXP(H) Series User Manual...
  • Page 58 Step 3. Click Yes, I want to restart my computer now. Click Finish to complete the installation. AEx-8XXP(H) Series User Manual...

  • Page 59: Com Driver

    4.4 Com Driver To install the Com Driver, please follow the steps below. Step 1. Select Com Driver from the list Step 2. Select setup language you need. Click Next to continue. AEx-8XXP(H) Series User Manual...
  • Page 60 Step 3. Click Next to begin the installation. Step 4. Choose Yes, I want to restart my computer now. Click Finish to complete the installation. AEx-8XXP(H) Series User Manual...

  • Page 61: Intel_Txe(Win) Driver

    4.5 Intel_TXE(Win) Driver To install the Intel_TXE(Win) Driver, please follow the steps below. Step 1. Select Intel_TXE(Win) Driver from the list Step 2. Click Next to continue. AEx-8XXP(H) Series User Manual...
  • Page 62 Step 3. Read the license agreement. Choose Accept and click Next to accept all of the terms of the license agreement. Step 4. Click Next to continue. AEx-8XXP(H) Series User Manual...
  • Page 63 Step 5. Click Finish to complete the installation. AEx-8XXP(H) Series User Manual...

  • Page 64: Chapter 5 Touch Screen Installation

    Chapter 5 Touch Screen Installation This chapter describes how to install drivers and other software that will allow your touch screen work with different operating systems. 5.1 Windows 8.1/10 Universal Driver Installation for PenMount 6000 Series Before installing the Windows 8.1/10 driver software, you must have the Windows 8.1/10 system installed and running on your computer.
  • Page 65 Step 2. Click Next to continue. Step 3. Read the license agreement. Click I Agree to agree the license agreement. AEx-8XXP(H) Series User Manual...
  • Page 66 Step 4. Choose the folder in which to install PenMount Windows Universal Driver. Click Install to start the installation. Step 5. Wait for installation. Then click Yes to continue. AEx-8XXP(H) Series User Manual...
  • Page 67 Step 6. Click Finish to complete the installation. AEx-8XXP(H) Series User Manual...

  • Page 68: Software Function

    5.2 Software Functions Upon rebooting, the computer automatically finds the new 6000 controller board. The touch screen is connected but not calibrated. Follow the procedures below to carry out calibration. 1. After installation, click the PenMount Monitor icon “PM” in the menu bar. 2.
  • Page 69 Calibrate This function offers two ways to calibrate your touch screen. ‘Standard Calibration’ adjusts most touch screens. ‘Advanced Calibration’ adjusts aging touch screens. Standard Calibration Click this button and arrows appear pointing to red squares. Use your finger or stylus to touch the red squares in sequence.
  • Page 70 Step 2.Click “Standard Calibration” to start calibration procedure NOTE: The older the touch screen, the more Advanced Mode calibration points you need for an accurate calibration. Use a stylus during Advanced Calibration for greater accuracy. Please follow the step as below: AEx-8XXP(H) Series User Manual...
  • Page 71 Step 3. Select Device to calibrate, then you can start to do Advanced Calibration. NOTE: Recommend to use a stylus during Advanced Calibration for greater accuracy. Plot Calibration Data Check this function and a touch panel linearity comparison graph appears when you have finished Advanced Calibration.
  • Page 72 Setting Touch Mode This mode enables and disables the mouse’s ability to drag on-screen icons – useful for configuring POS terminals. Mouse Emulation – Select this mode and the mouse functions as normal and allows dragging of icons. Click on Touch – Select this mode and mouse only provides a click function, and dragging is disables.
  • Page 73 Edge Compensation You can use Edge Compensation to calibrate more subtly. About This panel displays information about the PenMount controller and driver version. AEx-8XXP(H) Series User Manual...
  • Page 74 Multiple Monitors Multiple Monitors support from two to six touch screen displays for one system. The PenMount drivers for Windows 8.1/10 support Multiple Monitors. This function supports from two to six touch screen displays for one system. Each monitor requires its own PenMount touch screen control board, either installed inside the display or in a central unit.
  • Page 75 4. Touching all screens completes the mapping and the desktop reappears on the monitors. 5. Select a display and execute the “Calibration” function. A message to start calibration appears. Click OK. 6. “Touch this screen to start its calibration” appears on one of the screens. Touch the screen.
  • Page 76 About This panel displays information about the PenMount controller and this driver version. PenMount Monitor Menu Icon The PenMount monitor icon (PM) appears in the menu bar of Windows 8.1/10 system when you turn on PenMount Monitor in PenMount Utilities. PenMount Monitor has the following function Control Panel Open Control Panel Windows...
  • Page 77 Configuring the Rotate Function 1. Install the rotation software package. 2. Choose the rotate function (0°, 90°, 180°, 270°) in the 3rd party software. The calibration screen appears automatically. Touch this point and rotation is mapped. NOTE: The Rotate function is disabled if you use Monitor Mapping. AEx-8XXP(H) Series User Manual...
