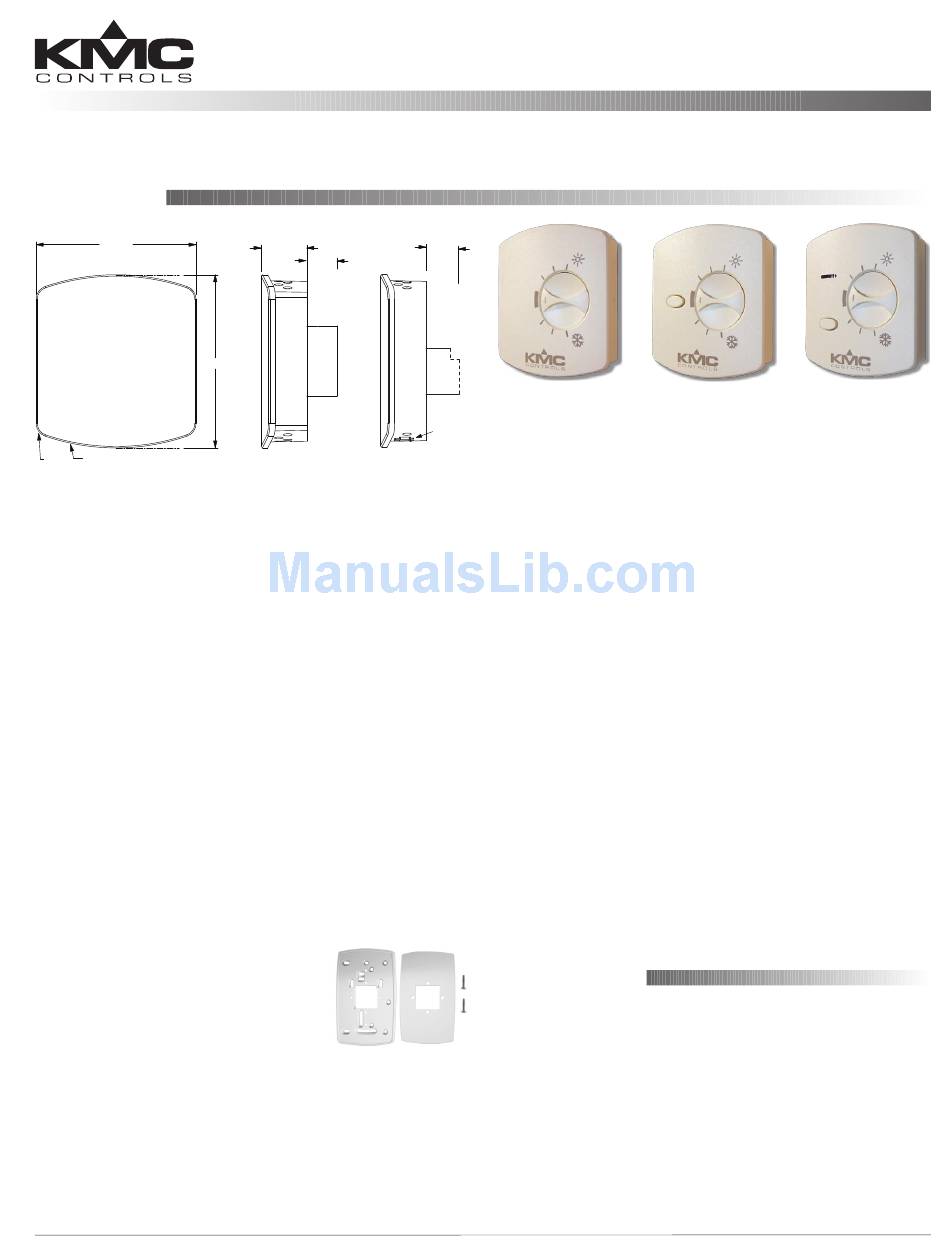

KMC Controls STE-6014 Installation Manual

Mounting
All dimensions are in inches
2.250
2.438
R .187
R 3.094
Location and Cover Removal
Install the sensor on an inside wall where it can sense
the average room temperature and be away from
direct sunlight, heat sources, windows, air vents,
and air circulation obstructions (curtains, furniture,
etc.). It can be mounted on a hollow wall or (with a
universal backplate HMO-6036) to a 2 x 4 inch handy
box.
The cover is held to the black, back panel by three,
small, round pegs that fit in the holes of the cover.
The bottom peg is on a tab and snaps into the center
bottom hole.
1. With a small Phillips screwdriver or hex wrench,
press in and hold the tab button that snaps into
the center hole on the bottom cover.
2. Carefully pull or pry the back panel from the
front cover.
Handy Box Installation (Recommended)
1. Mount a universal backplate
HMO-6036 to the handy box
using the two screws provided.
2. Remove the cover from the
back panel.
3. Attach the back panel to the backplate using the
two screws provided.
4. Attach the cable to the terminal block or jack
according to the appropriate wiring diagram on
the next page.
5. Replace the cover.
STE-6014/6017/6018/6019/6020 Room Temperature Sensors
Room Temperature Sensors (with Rotary Dials)
Installation Guide
.643 .475
max.
.422
Modular
RJ-45
Jack
Clamp
Four-pin
(Screw-type)
EIA-485
Terminals
PC Data
Port
STE-6019/6020 STE-6014/6017/6018
STE-6014
NOTE: Before July 2008, these models had
numbered °F or °C dials.
Hollow Wall Installation
1. Remove the cover from the back panel.
2. Using the back panel as a template, drill two holes
for mounting screws (7/64 inches or 3 mm in di-
ameter and 1.4 inches, 1-13/32 inches, or 35.6 mm
apart) and cut a center hole (size needed is depen-
dent on model) for the terminal block or jack.
3. Attach the back panel to the wall using two
#6 self-threading screws. (Plastic anchors are
recommended, and the size of the holes will then
need adjusting.)
4. Attach the cable to the terminal block or jack
according to the appropriate wiring diagram on
the next page.
5. Replace the cover.
Accessories
HMO-6036
KMD-569x
KMD-5624
KMD-5576
1
STE-6014/6017/6018/6019/6020
STE-6017/6019 STE-6018/6020
Universal Backplate
STE-6010/6014/6015/6016/ 6017/
6018 to Controller Cable with RJ-
45 to RJ-11 Connectors (-5693 = 25
ft.; -5694 = 50 ft.; -5695 = 75 ft.)
PC Data Port (EIA-485) Cable
EIA-485 to USB Communicator
Installation Guide
