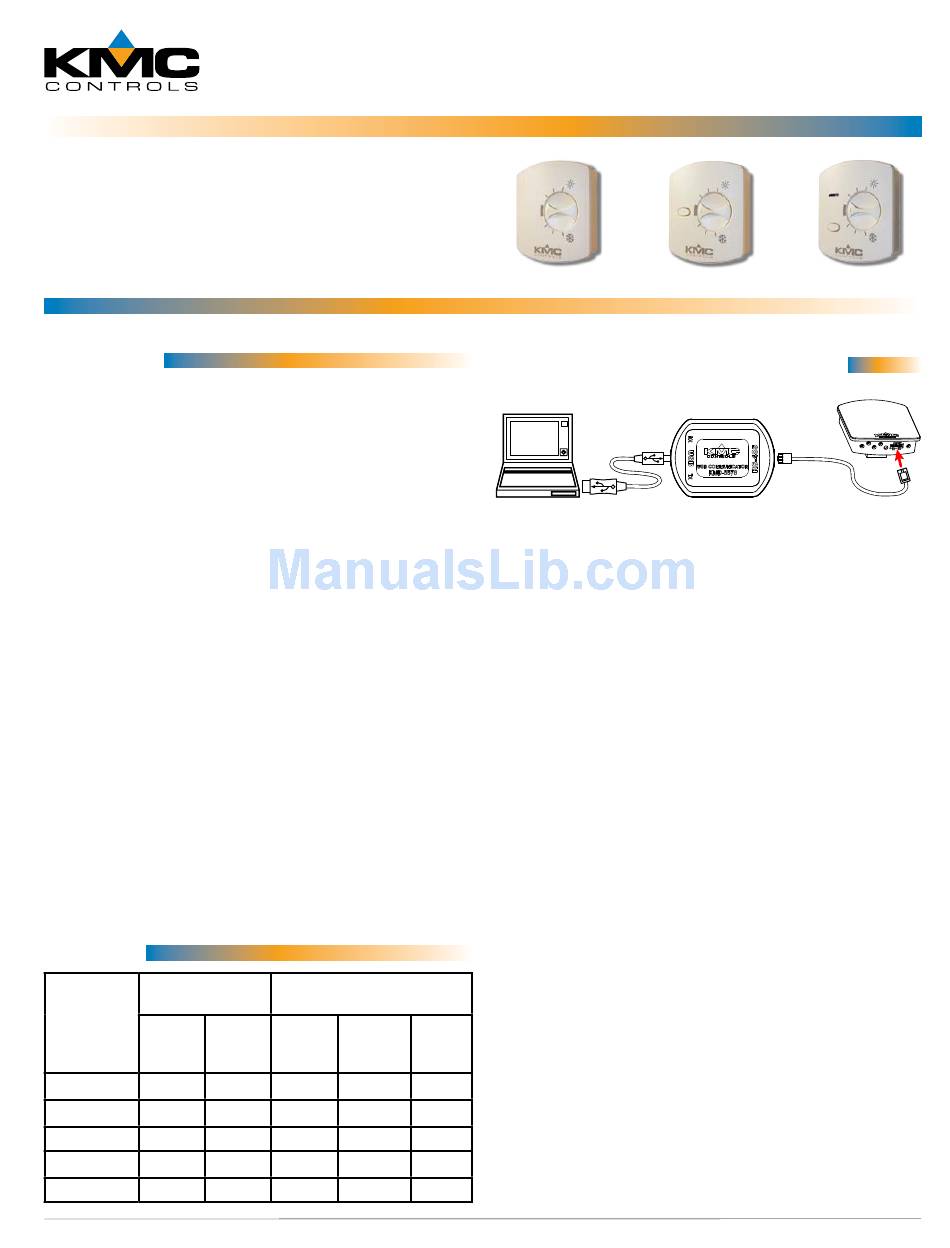

KMC Controls STE-6014 Application Manual

Room temperature sensors (with rotary dials)
Hide thumbs Also See for STE-6014:
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual

Application Guide

Contents
Models ...........................................................................1
PC Port Network Connection .........................................1
Controller Configuration ................................................2
Overview ....................................................................2
BACstage Software .....................................................2
TotalControl Software ................................................6
WinControl Software..................................................7
Mounting Considerations ...............................................9
Troubleshooting .............................................................9
Accessories ....................................................................9
Specifications .................................................................9
Important Notices ..........................................................9
NOTE: For more product information, see the
6000 Series Room Temperature Sensors/
Transmitters Data Sheet
Controls web site.
NOTE: For mounting and wiring information,
see the
STE-6014/6017/6018/6019/6020
Installation
Guide.

Models

Interface
Features
Model
Number
Override
Status
Button
Indicator
STE-6014
STE-6017
X
STE-6019
X
STE-6018
X
STE-6020
X
STE-6014/6017/6018/6019/6020 Room Temperature Sensors
Room Temperature Sensors (with Rotary Dials)
on the KMC
Cable
Connections
LED
Screw
RJ-45
Clamp
Connector
Terminals
X
X
X
X
X
X
X
STE-6014

PC Port Network Connection

At the bottom of the STE-6014/6017/6018 case is
an EIA-485 (formerly RS-485) computer port. This
port provides a temporary connection to the digital
network for network setup or troubleshooting.
To use the port to connect to a computer, a means of
converting the EIA-485 signal to a USB or EIA-232
(formerly RS-232) signal will be needed. The exact
connection depends on the computer and the opera-
tor workstation software. (See also the instructions
included with those devices and software.)
STE-
• For USB (to WinControl or BACstage), use a
KMD-5576 USB Communicator (see the illustra-
tion above).
• For EIA-232 to BACstage, use a third-party
interface.
• For EIA-232 to WinControl, use a KMD-5559
CommTalk and KMD-5624 cable (or equivalent
interface).
To access the network through the STE's sensor:
1. Connect the keyed, flat end of the KMD-5624
interface cable (included with the KMD-5576 but
not the KMD-5559) to the port on the sensor.
EIA-485
Data
2. Connect the other end of the cable to the interface
Port
device that converts the EIA-485 signal into an
X
EIA-232 or USB signal.
X
3. Connect the suitable cable from the interface
device to the computer's serial or USB port. Install
X
any required software and configure the port as
necessary.
1
STE-6014/6017/6018/6019/6020
STE-6017/6019
STE-6018/6020
KMD-5576
KMD-5624
Cable
Application Guide, AN0412B Rev. B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STE-6014 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KMC Controls STE-6014

Summary of Contents for KMC Controls STE-6014

  • Page 1: Table Of Contents

    Overview ..............2 KMD-5624 BACstage Software .............2 Cable BAC-A1616BC BACnet Building Controller ....6 At the bottom of the STE-6014/6017/6018 case is TotalControl Software ..........6 an EIA-485 (formerly RS-485) computer port. This WinControl Software..........7 port provides a temporary connection to the digital Mounting Considerations ..........9...

  • Page 2: Controller Configuration

    56.1 13.4 56.4 13.6 13. Click End Edit. 56.7 13.7 14. Click Yes for “Send Update Notification Now?” 57.1 13.9 15. Click OK. 57.4 14.1 57.7 14.3 58.1 14.5 58.4 14.7 STE-6014/6017/6018/6019/6020 Room Temperature Sensors Application Guide, AN0412B Rev. B...
  • Page 3 14. Click OK. 25.4 32.2 77.8 90.0 25.9 32.2 78.6 90.0 26.3 32.2 79.4 90.0 26.8 32.2 80.3 90.0 NOTE: These tables are different from the ones used in the STE-6012/6016! STE-6014/6017/6018/6019/6020 Room Temperature Sensors Application Guide, AN0412B Rev. B...
  • Page 4 X38=20.3 X81=32.2 X124=32.2 X39=69.2 X82=90.0 X125=90.0 X39=20.7 X82=32.2 X125=32.2 X40=69.8 X83=90.0 X126=90.0 X40=21.0 X83=32.2 X126=32.2 X41=70.4 X84=90.0 X127=90.0 X41=21.3 X84=32.2 X127=32.2 X42=71.0 X85=90.0 X128=90.0 X42=21.7 X85=32.2 X128=32.2 X43=71.6 X86=90.0 X43=22.0 X86=32.2 STE-6014/6017/6018/6019/6020 Room Temperature Sensors Application Guide, AN0412B Rev. B...
  • Page 5 9. Click Edit. 18. Click Yes for “Execute Program Now?” 10. Type in a name in the Description field and/or 19. Click Close. Name field. 20. Click OK. 11. Click Autorun. STE-6014/6017/6018/6019/6020 Room Temperature Sensors Application Guide, AN0412B Rev. B...

  • Page 6: Bac-A1616Bc Bacnet Building Controller

    No Device and the as described in the Tables section of the BAC- Lookup Table for the STE-6014 Rotary BBC table. A1616ABC Building Controller Installation and 2. For the Fahrenheit scale, the multiplier is 1.8 and Operation Guide.

  • Page 7: Wincontrol Software

    12.2 11. Click End Edit. 0.32 14.4 12. Click OK. 0.77 16.7 1.14 18.9 1.47 21.1 1.74 23.3 1.97 25.6 2.16 27.8 2.31 30.0 2.42 32.2 5.00 32.2 15. Click OK. STE-6014/6017/6018/6019/6020 Room Temperature Sensors Application Guide, AN0412B Rev. B...
  • Page 8 Control > Control Basic. AN0504F Programming Override Timers 11. Click Edit. section of the the Digital Designer’s Guide (SP-022). 12. Type in a name in the Description field and/or Label field. STE-6014/6017/6018/6019/6020 Room Temperature Sensors Application Guide, AN0412B Rev. B...

  • Page 9: Mounting Considerations

    KMC Controls, Inc. makes no representations or Considerations section above.) warranties with respect to this document. In no event shall KMC Controls, Inc. be liable for any damages, Accessories direct or incidental, arising out of or related to the use of this document.

This manual is also suitable for:

Ste-6017Ste-6018Ste-6019Ste-6029
