KMC Controls NetSensor KMD-1162 Installation And Operation Manual

Temperature sensor

Advertisement

Quick Links

Contents
Specifications ............................................................... 2
Network Cable Preparation .......................................... 4
Rough-in preparation ................................................... 5
Installing the NetSensor ................................................ 5
Operation .................................................................... 6
Maintenance ................................................................ 7
Revision A
Revision A
Installation and
Operation Guide
NetSensor
KMD-1162
Temperature sensor
®
903-019-03A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NetSensor KMD-1162 and is the answer not in the manual?

Questions and answers

Summary of Contents for KMC Controls NetSensor KMD-1162

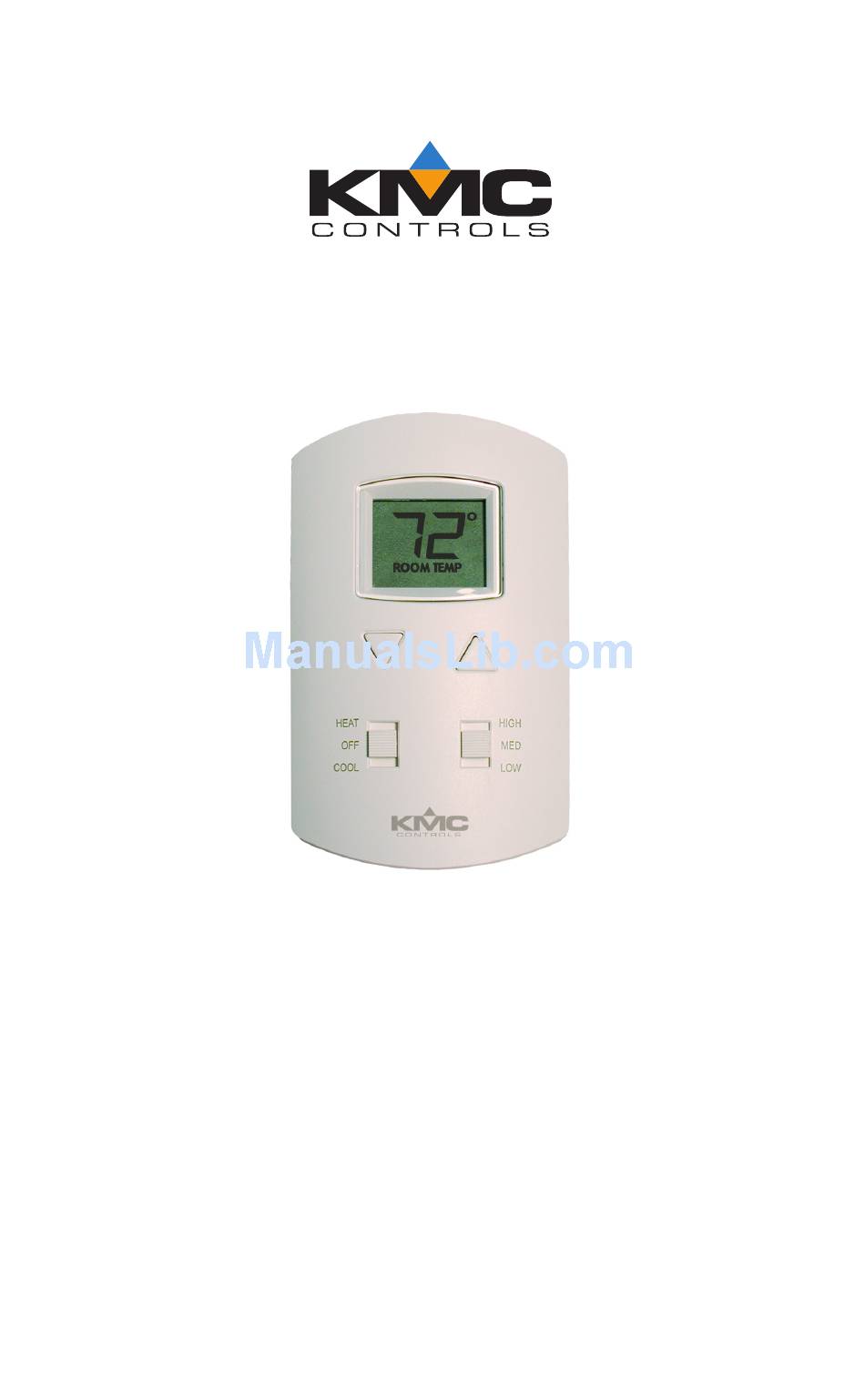

  • Page 1 Installation and Operation Guide ® NetSensor KMD-1162 Temperature sensor Contents Specifications ............... 2 Network Cable Preparation .......... 4 Rough-in preparation ........... 5 Installing the NetSensor ..........5 Operation ..............6 Maintenance ..............7 Revision A Revision A 903-019-03A...
  • Page 2: Specifications

    KMD–1162 Installation and Operation KMC Controls Specifications Display LCD, 2-character, 7-segment, 056. in. high. Compatibility KMD-5800 series controllers KMD-7000 series controllers BAC-5800 series BACnet controllers BAC-7000 series BACnet controllers Connection Connector type RJ–12 connects data and power to compatible controllers Cable length Maximum 75 feet (22.9 meters)
  • Page 3 KMD–1162 Installation and Operation White HMO–1161W Replacement allen screw HPO–0044 Network cables 25 feet (7.6 meters) KMD–5690 50 feet (15.2 meters) KMD–5691 75 feet (22.9 meters) KMD–5692 Interface Cable KMD–5624 Gasket HPO–1161 Sensor type and accuracy Type 10k thermistor Accuracy ±2°...
  • Page 4: Network Cable Preparation

    Network Cable Preparation Connecting a NetSensor to a KMC controller requires a six-wire cable with RJ-12 connectors on each end. Use either the KMC Controls ready-to-use cables or make cables to length when the NetSensor is installed. Cables made to length must meet the following requirements: ◆...
  • Page 5: Rough-In Preparation

    Caution To prevent mounting screw heads from touching the circuit board in the NetSensor, use only the mounting screws supplied by KMC Controls. Using screws other than the type supplied will damage the NetSensor. Installing the NetSensor 1. Turn the Allen screws in the base of the NetSensor clockwise until they clear the cover.
  • Page 6: Operation

    KMD–1162 Installation and Operation KMC Controls 3. Fasten the mounting base to the backplate or the outlet box with the Allen screws toward the floor. 4. Insert the RJ-12 cable coming from the base into the NetSensor. 5. Place the top of the NetSensor over the top of the mounting base and swing it down over the Allen screw brackets.
  • Page 7: Maintenance

    KMD–1162 Installation and Operation Changing the setpoint Pressing either the up or down setpoint buttons changes the display from room temperature mode to setpoint mode. Pressing either button once displays the current setpoint for three seconds; each additional press increments or decrements the setpoint temperature by one degree Fahrenheit.
  • Page 8 KMC Controls, Inc. makes no representations or warranties with respect to this manual. In no event shall KMC Controls, Inc. be liable for any damages, direct or incidental, arising out of or related to the use of this manual.
