KMC Controls STW-6010 Installation Manual

Mounting

Select a location
Install the sensor on an inside wall where it can
sense the average room temperature. Avoid locations
with direct sunlight, heat sources, windows, air
vents, and air circulation or obstructions such as
curtains, furniture, etc.
Mount the sensor in an area with a minimum
◆ ◆
illumination of 200 lux for three to four hours
everyday. The light source can be either artifical
or daylight. The health and safety at work act
requires a minimum illumination of 500 lux for
office workplaces.
The long term illumination should not exceed
◆ ◆
1000 lux.
Avoid recessed areas that are not sufficiently
◆ ◆
illuminated throughout the day.
When using collimated artificial light the angle
◆ ◆
of incidence on the solar cell should be not too
steep.
The sensors can be mounted with the solar cell
◆ ◆
toward a window but not in direct sunlight.
Even occasional direct sunlight can lead to false
temperature values.
Consider the future use of the room and avoid
◆ ◆
locations that may be used for filing cabinets,
shelf units, or other large obstructions.
In closed spaces with several walls, the maximum
◆ ◆
range may be less than 33 ft (10 m). In open areas,
place the sensor no farther away than 98 ft. (30 m)
from the receiver or gateway. See the publication
Planning Guide For Wireless Sensor Networks for
details.
Wireless Temperature and Humidity Sensors
Installation Guide
Remove the sensor body from the back panel
The sensor body is held to the black, back panel by
three, small, round pegs that fit in the holes of the
sensor body. The bottom peg is a spring tab and
snaps into the center bottom hole.
1. With a small Phillips screwdriver or hex wrench,
2. Carefully pull or pry the back panel from the
Install the optional battery
A single CR1225 lithium coin battery may be
installed for locations that do not have enough
sustained light to maintain sensor operation.
3. Remove the sensor body from the back panel.
4. Position the CR1225 battery with the plus (+)
5. Slide the battery into the battery holder.
6. Install the sensor.
Specifications and design subject to change without notice.

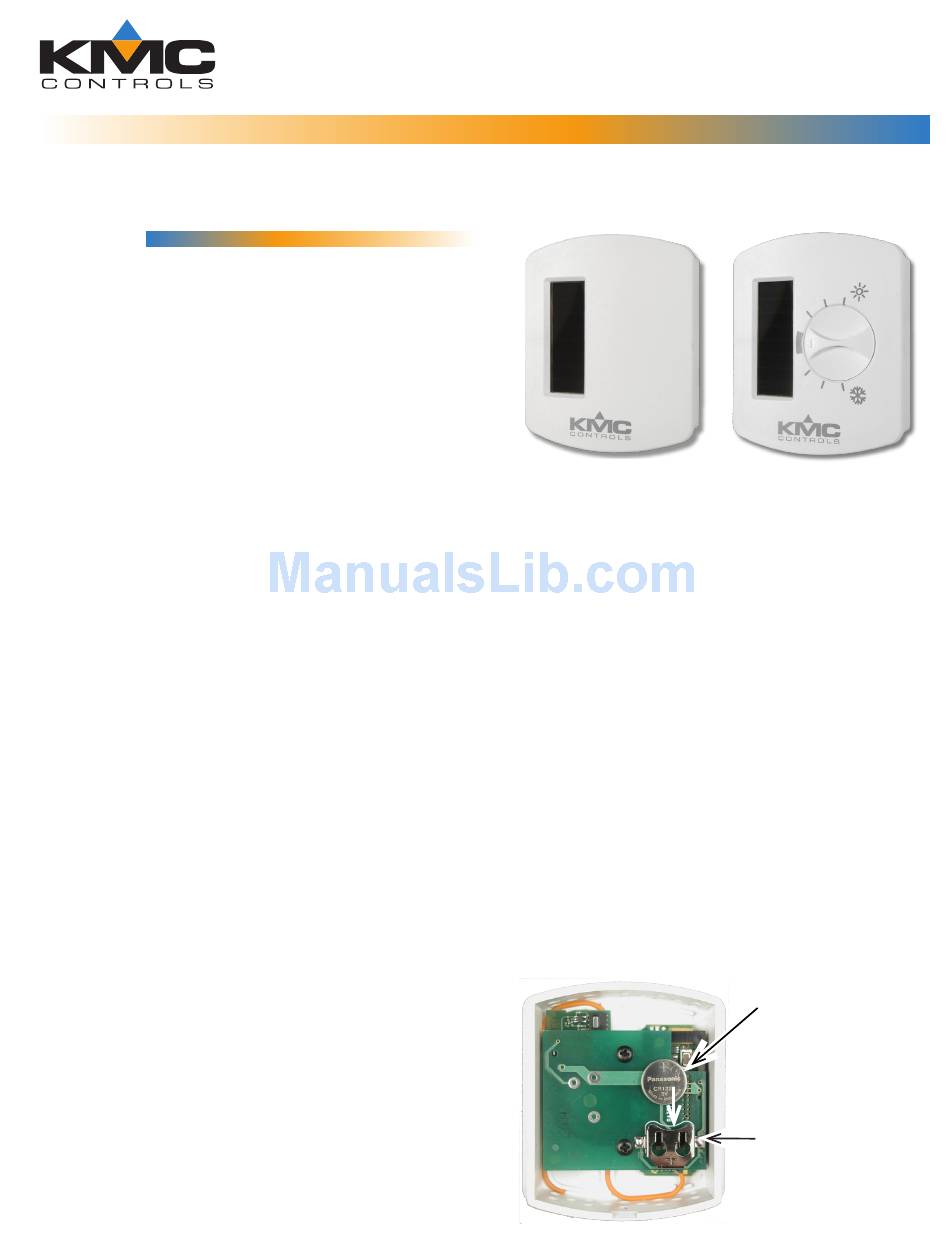

STW-6010, STW-6014, THW-1102
STW-6010 and THW-1102
press in and hold the tab button that snaps into
the center hole on the bottom cover.
sensor body.
symbol visible.
STW-6014
CR1225 lithium
coin battery
Battery holder
