KMC Controls SSS-1000 Series Installation Manual

Mounting

1. Determine the duct's flow direction and install the
SSS-1000 based on the unit's flow arrow imprint.
NOTE: The sensor must be mounted with the
arrow pointing in the direction of the air
flow.

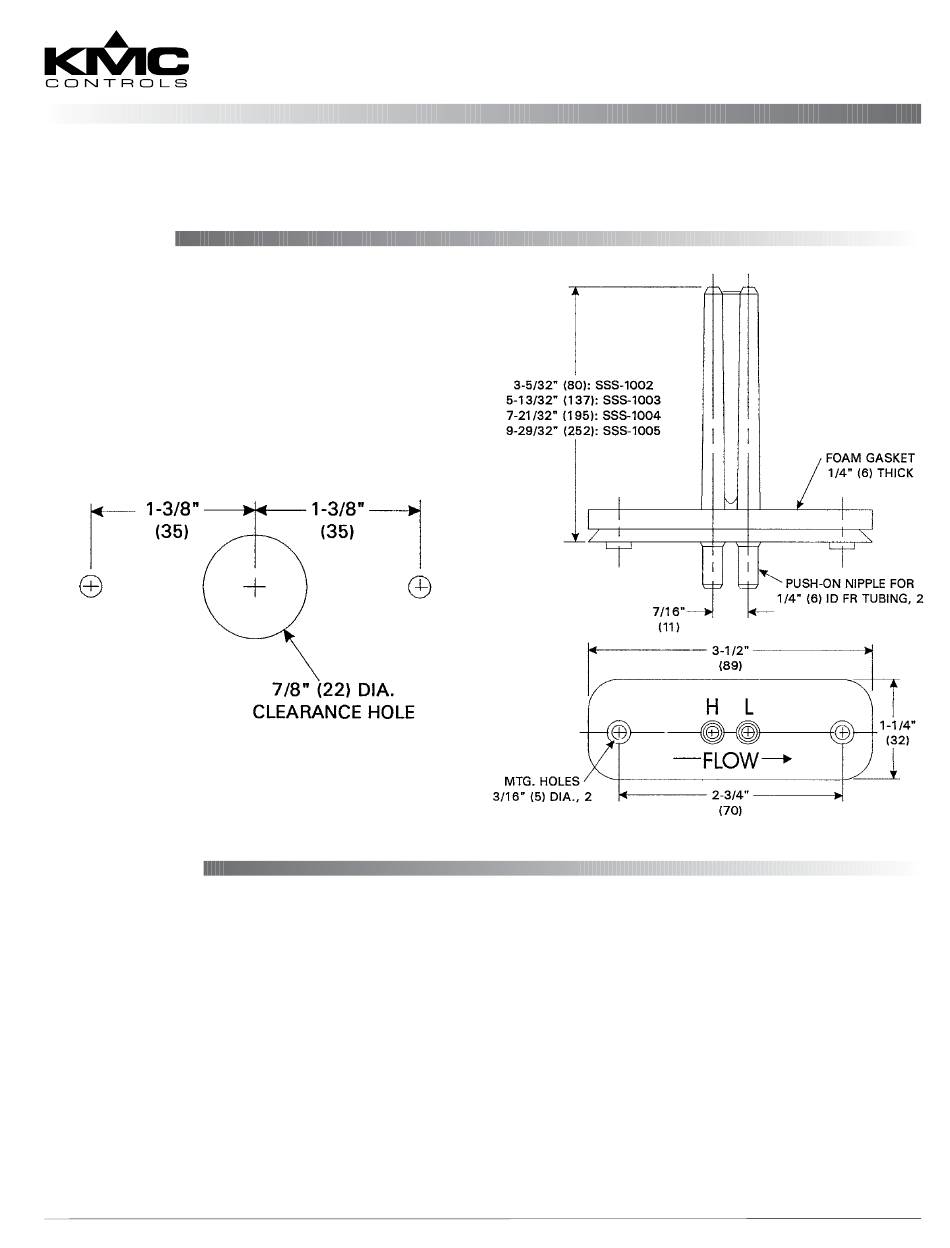

2. Cut a 7/8" hole in the duct to accept the unit.
3. Attach using two self-tapping screws inserted in
the 3/16" mounting holes.

Connections

Connections use 3/8" OD polyethylene tubing. Check
that there are no sharp bends in the tubing at any
connection. Bends and creases may leak as tubing
ages.
1. Connect the Port "H" to the "High" input on the
VAV controller.
2. Connect the Port "L" to the "Low" input on the VAV
controller.
SSS-1000 Series
Installation Guide
NOTE: With CSC-3000 series, CSP-4000/5000
1
Differential Pressure Flow Sensors
series, KMD-7000 series, and BAC-
7000 series controllers, use a 3/8" to 1/4"
barb union adapter and appropriate
polyethylene tubing to the sensor and
controller. For maximum accuracy in the
CSP-5000 series, KMD-7000 series, and
BAC-7000 series controllers, the 3/8" OD
tubing between the sensor and the adapter
should be as short as possible, and the
1/4" OD tubing from the adapter to the
controller should be 24" long (on both the
High and the Low sides).
