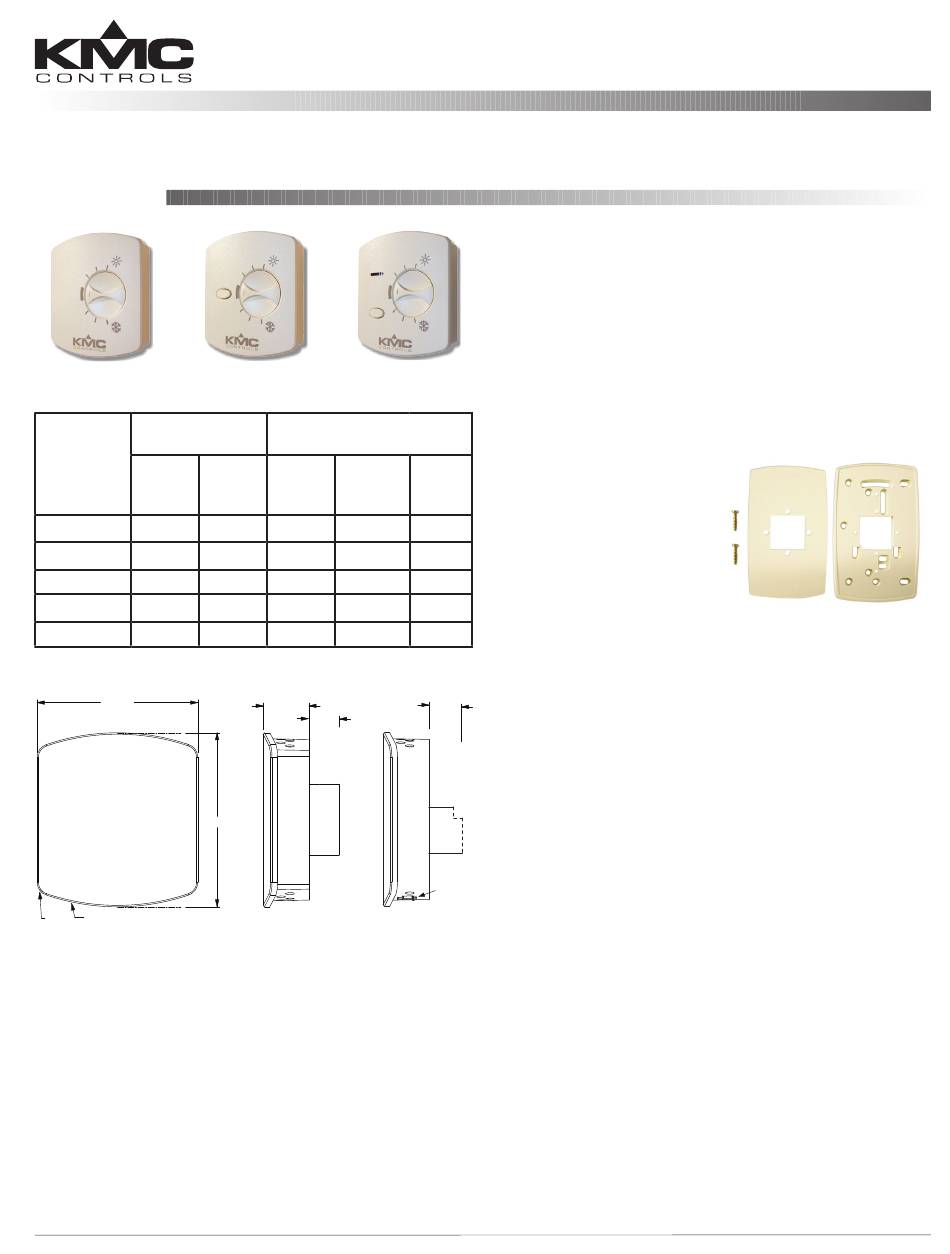

KMC Controls STE-6014-10 Installation Manual

Mounting
STE-6014 STE-6017/6019
Interface
Features
Model
Number
Override
Button
Indicator
STE-6014-10
STE-6017-10 X
STE-6019-10 X
STE-6018-10 X
STE-6020-10 X
All dimensions are in inches
2.250
2.438
R .187 R 3.094
Location and Cover Removal
Install the sensor on an inside wall where it can sense
the average room temperature and be away from
direct sunlight, heat sources, windows, air vents,
and air circulation obstructions (curtains, furniture,
etc.). It can be mounted on a hollow wall or (with
a universal backplate HMO-6036/6036W) to a 2 x 4
inch handy box.
The cover is held to the black, back panel by three,
small, round pegs that fit in the holes of the cover.
The bottom peg is on a tab and snaps into the center
bottom hole.
STE-6014/6017/6018/6019/6020 Room Temperature Sensors
Room Temperature Sensors (with Rotary Dials)
Installation Guide
STE-6018/6020
Cable
Connections
LED Screw
RJ-45
Status Clamp
Connector
Terminals
X
X
X
X X
X X
.643
.422
Clamp
(Screw-type)
Terminals
STE-6019/6020 STE-6014/6017/6018
1. With a small Phillips screwdriver or hex wrench,
press in and hold the tab button that snaps into
the center hole on the bottom cover.
2. Carefully pull or pry the back panel from the
front cover.
Handy Box Installation (Recommended)
1. Mount a universal backplate HMO-6036 or HMO-
6036W to the handy box
using the two screws
provided.
EIA-485
Data
2. Remove the cover from
Port
the back panel.
X
3. Attach the back panel to
X
the backplate using the
two screws provided.
X
4. Attach the cable to the
terminal block or jack
according to the appropriate wiring diagram on
the next page.
.475
5. Replace the cover.
max.
Modular
Hollow Wall Installation
RJ-45
Jack
1. Remove the cover from the back panel.
2. Using the back panel as a template, drill two holes
Four-pin
for mounting screws (7/64 inches or 3 mm in di-
EIA-485
PC Data
ameter and 1.4 inches, 1-13/32 inches, or 35.6 mm
Port
apart) and cut a center hole (size needed is depen-
dent on model) for the terminal block or jack.
3. Attach the back panel to the wall using two
#6 self-threading screws. (Plastic anchors are
recommended, and the size of the holes will then
need adjusting.)
4. Attach the cable to the terminal block or jack
according to the appropriate wiring diagram on
the next page.
5. Replace the cover.
