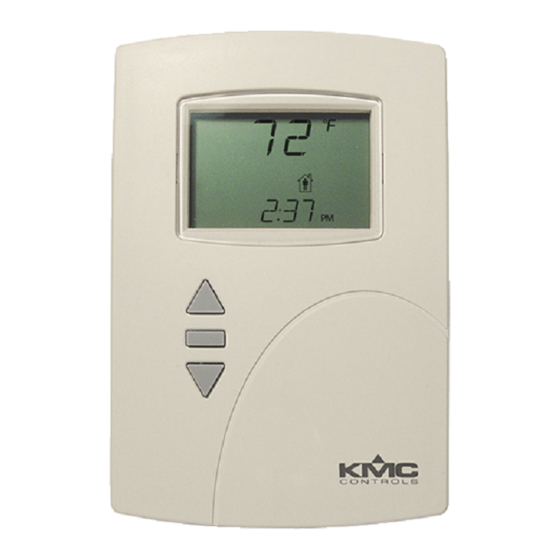

KMC Controls Conquest STE-90 Series Installation Manual

INTRODUCTION
Complete the following steps to mount a KMC
Conquest STE-9000 Series Digital NetSensor
and connect it to a Conquest BAC-59xx/9xxx
Controller.
STE-92xx/95xx
STE-90xx/93xx
with Motion Sensor
KMCConquest
Automation Hardware
NOTE: See the Conquest NetSensors STE-
9000 Series Digital Room Sensors
data sheet and the
Guide at kmccontrols.com
specifications and other information.
SELECT MOUNTING LOCATION
See the Room Sensor and Thermostat Mounting
Location and Maintenance Application Guide
cautions, troubleshooting, and best practices.
NOTE: Complete rough-in-wiring at each
location before installing a sensor.
KMC Controls, 19476 Industrial Drive, New Paris, IN 46553
STE-9000 Series NetSensors
STE-9xxxW-NDL
(no display)
TM
Conquest Selection
for
NOTICE
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE DEVICES
REMOVE BACKPLATE
1. Turn the hex screw
sensor until the screw clears the cover.
NOTE: The hex screw
2. Pull the cover off the backplate.
CONNECT ETHERNET CABLE
3. Feed the Ethernet patch cable
Conquest controller through the center of the
backplate
NOTE: The Ethernet patch cable should be a
for
/ 877.444.5622
Installation Guide
clockwise into the
1
2
backplate.
4 .
maximum of 150 feet (45 meters).
/ Fax: 574.831.5252 / www.kmccontrols.com
1
should remain in the
2
from the
3
4
3
