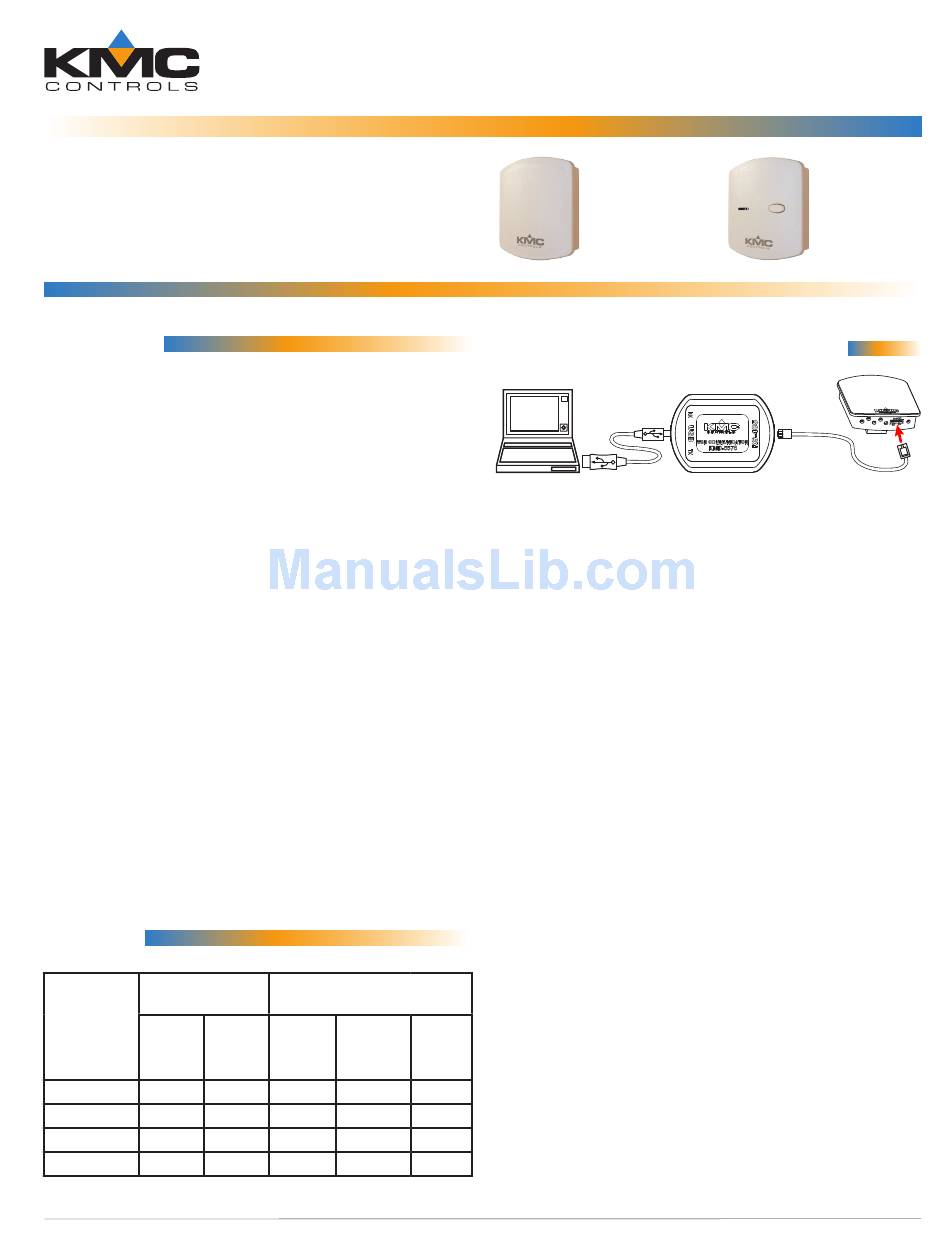

Application Guide

Contents
Models ...........................................................................1
PC Port Network Connection .........................................1
Controller Configuration ................................................2
Overview ....................................................................2
BACstage Software .....................................................2
TotalControl Software ................................................3
WinControl Software..................................................3
Mounting Considerations ...............................................4
Troubleshooting .............................................................4
Specifications .................................................................5
Accessories ....................................................................5
Important Notices ..........................................................5
NOTE:
For more product information, see the STE-
6000 Series Room Temperature Sensors/
Transmitters Data
Controls web site.
NOTE:
For mounting and wiring information, see
the STE-6010/6011/6013/6015 Installation
Guide.

Models

Interface
Features
Model
Number
Override
Status
Button
Indicator
STE-6010-10
STE-6011-10
STE-6013-10
X
STE-6015-10
X
STE-6010/6011/6013/6015 Room Temperature Sensors
Sheet on the KMC
Cable
Connections
LED
Screw
RJ-45
Clamp
Connector
Terminals
X
X
X
X
X
X
Room Temperature Sensors
STE-6010/6011

PC Port Network Connection

At the bottom of the STE-6010/6015 case is an EIA-
485 (formerly RS-485) computer port. This port
provides a temporary connection to the digital
network for network setup or troubleshooting.
To use the port to connect to a computer, a means of
converting the EIA-485 signal to a USB or EIA-232
(formerly RS-232) signal will be needed. The exact
connection depends on the computer and the opera-
tor workstation software. (See also the instructions
included with those devices and software.)
• For USB (to WinControl or BACstage), use a
KMD-5576 USB Communicator (see the illustra-
tion above).
• For EIA-232 to BACstage, use a third-party
interface.
• For EIA-232 to WinControl, use a KMD-5559
CommTalk and KMD-5624 cable (or equivalent
interface).
To access the network through the sensor's port:
1. Connect the keyed, flat end of the KMD-5624
interface cable (included with the KMD-5576 but
not the KMD-5559) to the port on the sensor.
2. Connect the other end of the cable to the interface
EIA-485
device that converts the EIA-485 signal into an
Data
EIA-232 or USB signal.
Port
3. Connect the suitable cable from the interface
X
device to the computer's serial or USB port. Install
any required software and configure the port as
necessary.
X
1
STE-6010/6011/6013/6015
STE-6013/6015
KMD-5576
KMD-5624
Cable
Application Guide, AN0412A
