Crestron CE-600 Quick Start Manual

CE-600
The CE-600 Open Presentation Space workplace technology solution includes a
Crestron AM-200 AirMedia Presentation System 200, sensors, and the cables required
® ®
to provide conference room capabilities and room schedule information.
A V
B r
i d g
e

Preparation

1

Verify Contents

Check the table below for the system's package contents before starting
installation. The following items are included:
QUANTITY ITEM
AM-200, AirMedia
1
System 200
1 CBL-HD-6, 6' HDMI
CBL-USB-A-BMICRO-6, 6' USB A
1
to Micro B Cable
IRP2, IR Emitter Probe
1
with Terminal Block Connector
ZUMMESH-AVBRIDGE, Wireless Control
1
Integration Module
ZUMMESH-PIR-OCCUPANCY-BATT,
1 Zūm™ Wireless Battery-Powered
Occupancy Sensor

Additional Requirements

A video display (sold separately) must be connected to the HDMI OUTPUT port
on the AM-200.

Optional Accessory

A TSW-series touchscreen and/or wireless keypad can be added for system
control. For details, refer to the AM-200/300 product manual at
www.crestron.com/manuals.
1
QUICKSTART DOC. 8312A (2051278)
Workplace Technology Solution – Open Presentation Space
2
W i
r e
l e s
O c
D i c u s
s p S e
p a
l a y n s
n c
o r
y
R S
- 2
3 2
H D
M I
U S
A M
B
- 2
N
L A
0 0
C A
T 5
e
PART NUMBER
® Presentation
6509936
® Cable 6503565
6508229
6500126
6507997
6507983
www.crestron.com
04.18 Specifications subject to
change without notice.

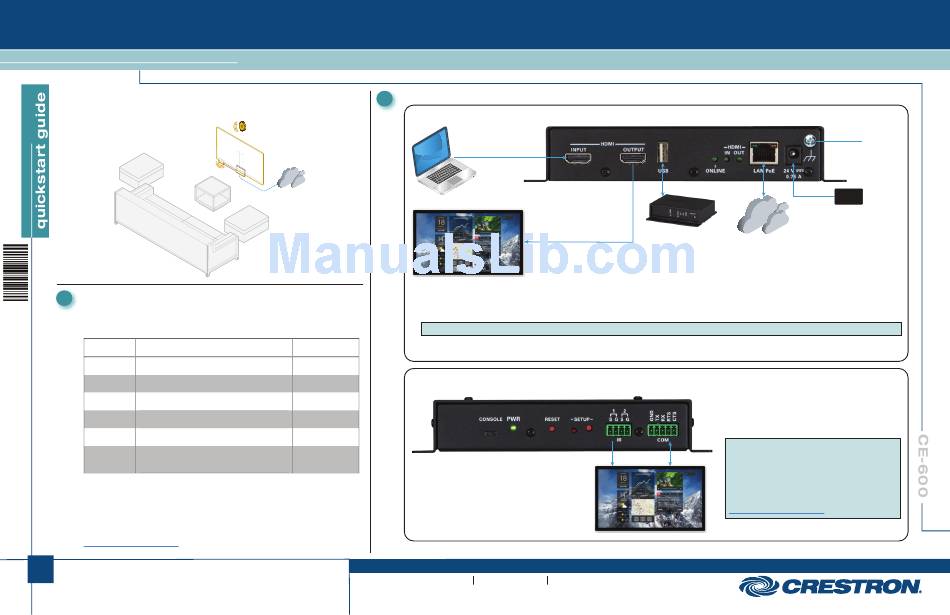

Connect the System

AM-200 (Top View)


 Connect an HDMI cable (sold separately) to the HDMI INPUT port and to the source device's HDMI output port.
 Connect the CBL-HD-6 cable to the HDMI OUTPUT port and to the display device's HDMI input port.
 Connect the CBL-USB-A-BMICRO-6 cable to the USB port and to the COMPUTER port on the ZUMMESH-AVBRIDGE.
 Connect a CAT5e cable (sold separately) to the LAN PoE port and to the corporate LAN.
NOTE: The AM-200 can receive power from the included power pack or from PoE supplied to the LAN PoE port.
 Connect the PW-2407WU power pack (included with the AM-200) to the 24V 0.75A port.
 Connect the AM-200 to earth ground.
AM-200 (BottomView)
888.273.7876 201.767.3400
 
N
L A
 Connect the IRP2 emitter probe to the IR1 port
and to the display device.
 Connect a serial cable (sold separately) to the
COM port and to the display device.
NOTE: The IR1 and COM ports should only be
connected if the display device does not respond
 
to CEC commands via the HDMI connection. If
using the IR1 and COM ports, set the display
device model in the AM-200's web-based setup
pages. For details, refer to the AM-200/AM-300
product manual (Doc. 8254) at
www.crestron.com/manuals.


