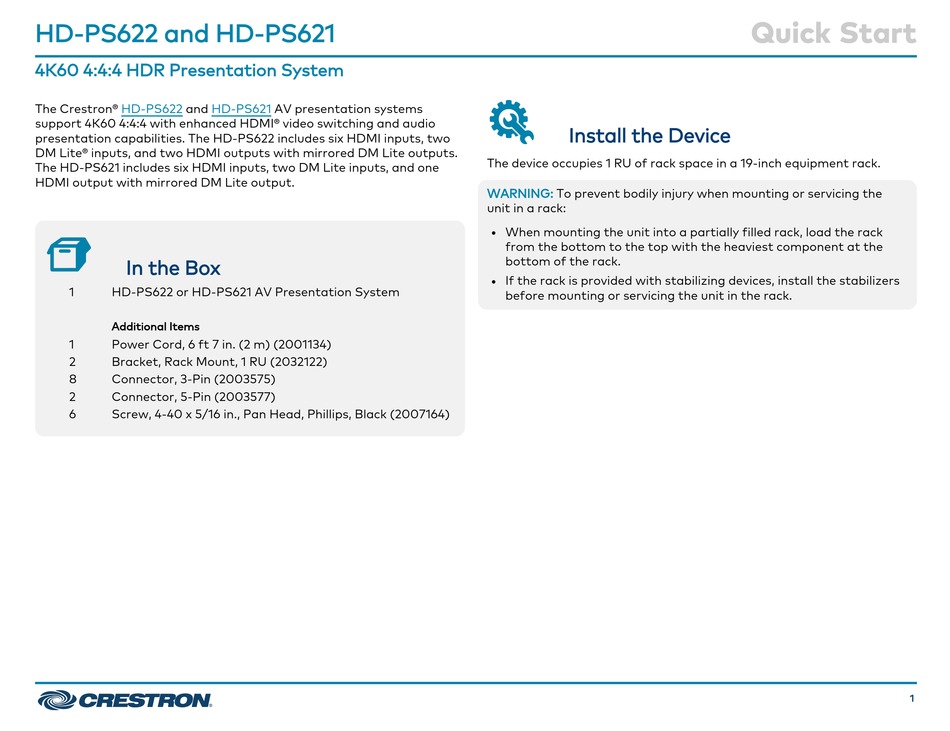

HD-PS622 and HD-PS621
4K60 4:4:4 HDR Presentation System
The Crestron®
HD-PS622
and
HD-PS621
support 4K60 4:4:4 with enhanced HDMI® video switching and audio
presentation capabilities. The HD-PS622 includes six HDMI inputs, two
DM Lite® inputs, and two HDMI outputs with mirrored DM Lite outputs.
The HD-PS621 includes six HDMI inputs, two DM Lite inputs, and one
HDMI output with mirrored DM Lite output.
In the Box
1
HD-PS622 or HD-PS621 AV Presentation System
Additional Items
1
Power Cord, 6 ft 7 in. (2 m) (2001134)
2
Bracket, Rack Mount, 1 RU (2032122)
8
Connector, 3-Pin (2003575)
2
Connector, 5-Pin (2003577)
6
Screw, 4-40 x 5/16 in., Pan Head, Phillips, Black (2007164)
AV presentation systems
Install the Device
The device occupies 1 RU of rack space in a 19-inch equipment rack.
WARNING:
To prevent bodily injury when mounting or servicing the
unit in a rack:
When mounting the unit into a partially filled rack, load the rack
l
from the bottom to the top with the heaviest component at the
bottom of the rack.
If the rack is provided with stabilizing devices, install the stabilizers
l
before mounting or servicing the unit in the rack.
Quick Start
1
Advertisement
Table of Contents
Related Manuals for Crestron HD-PS622
Summary of Contents for Crestron HD-PS622
- Page 1 4K60 4:4:4 with enhanced HDMI® video switching and audio Install the Device presentation capabilities. The HD-PS622 includes six HDMI inputs, two DM Lite® inputs, and two HDMI outputs with mirrored DM Lite outputs. The device occupies 1 RU of rack space in a 19-inch equipment rack.
- Page 2 Quick Start HD-PS622 and HD-PS621 4K60 4:4:4 HDR Presentation System Rack Mounting Safety Precautions To mount the device into a rack: Elevated Operating Ambient Temperature: If installed in a closed or 1. Attach the two included rack mount brackets to the device using the multi-unit rack assembly, the operating ambient temperature of the six included 4-40 x 5/16 in.
-
Page 3: Quick Start

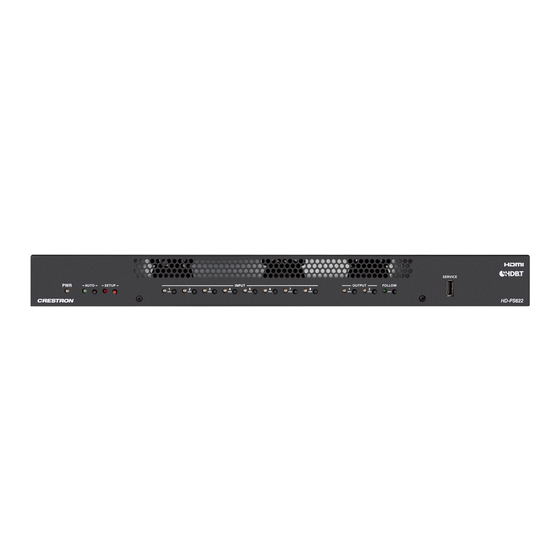

HD-PS622 and HD-PS621 Quick Start 4K60 4:4:4 HDR Presentation System Connect the Device Connect the front and rear panels of the device as required for the application. Front Panel Connection (HD-PS622 Shown) - Page 4 Quick Start HD-PS622 and HD-PS621 4K60 4:4:4 HDR Presentation System Rear Panel Connections (HD-PS622 Shown)
- Page 5 Open HD-RX-4K-410-C-E, HD-RX-4K-410-C-E-SW4, HD-RX-4K-510-C-E, and HD-RX-4K-510-C-E-SW4) is provided for the extension of audio and video signals only. The HD-PS622 or HD-PS621 web interface does not support configuration of connected HD-RX-201-C-E receivers or DMPS Lite switchers. Those devices require a separate LAN connection and must be configured using the web interface of each device.
-
Page 6: Upgrade The Firmware
3. Claim the device to the XiO Cloud service as described in the XiO Cloud User Guide. NOTE: By default, the IP address of an HD-PS622 or HD-PS621 device Select the device from the cloud interface to view its status and is assigned by a DHCP server on the network. If a DHCP server does settings. - Page 7 Quick Start HD-PS622 and HD-PS621 4K60 4:4:4 HDR Presentation System Observe the LED Indicators Visit the Product Page Refer to the following table for information about the LED indicators on Scan the QR code to visit the product page. the device.
- Page 8 Certain Crestron products contain open source software. For specific information, visit www.crestron.com/opensource. Crestron, the Crestron logo, DM Lite, DMPS Lite, and XiO Cloud are either trademarks or registered trademarks of Crestron Electronics, Inc. in the United States and/or other countries. HDBaseT and the HDBaseT Alliance logo are either trademarks or registered trademarks of the HDBaseT Alliance in the United States and/or other countries.
