Summary of Contents for Skyrc Q200neo

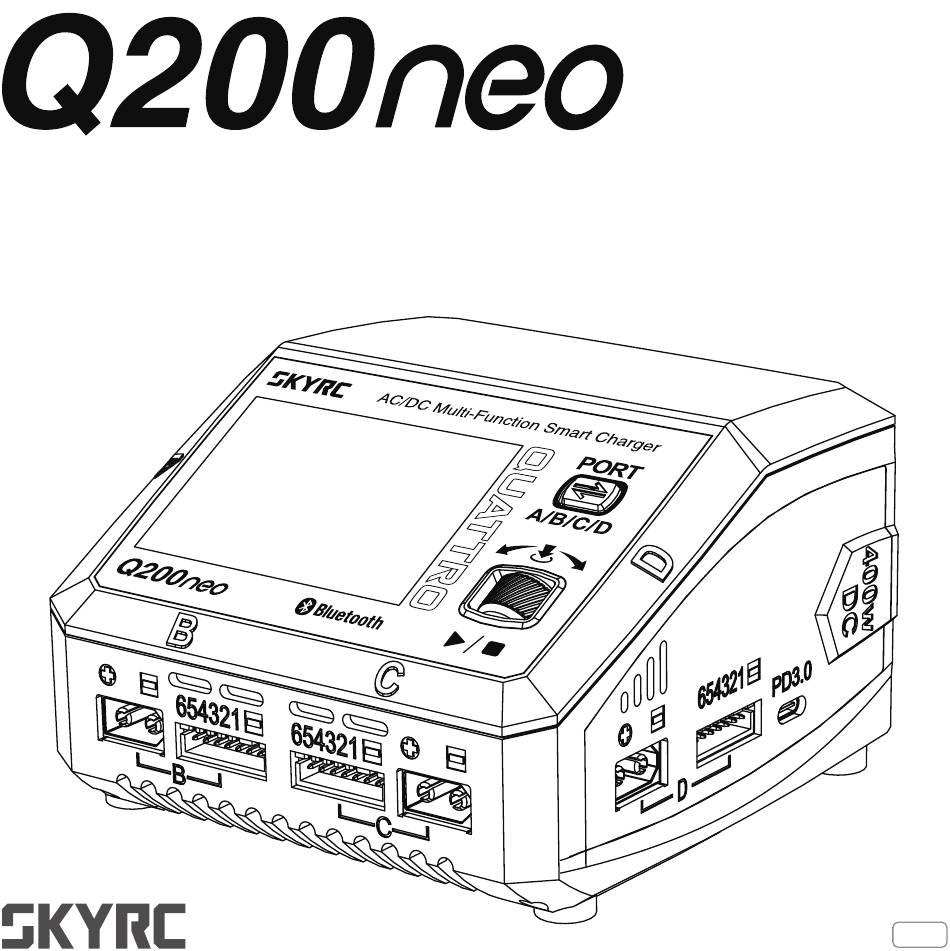

- Page 1 SKYRC Q200neo Instruction Manual AC/DC Multi-Function Smart Charger Instruction Manual SK-100197 V1.0 SKYRC Q200neo...
-
Page 2: Table Of Contents
SKYRC Q200neo Instruction Manual Introduction Package Meet Q200neo Specification Warning Standard Battery Parameters Explanation of Buttons Program Flow Chart Power and Battery Connection Charging Lithium Battery Program(LiPo/LiFe/Lilon/LiHV) NiMH/NiCd Battery Program Pb Lead-Acid Battery Program Charger Master SkyCharger app Control DC Power USB Type-C PD/QC3.0 Output... -
Page 3: Introduction

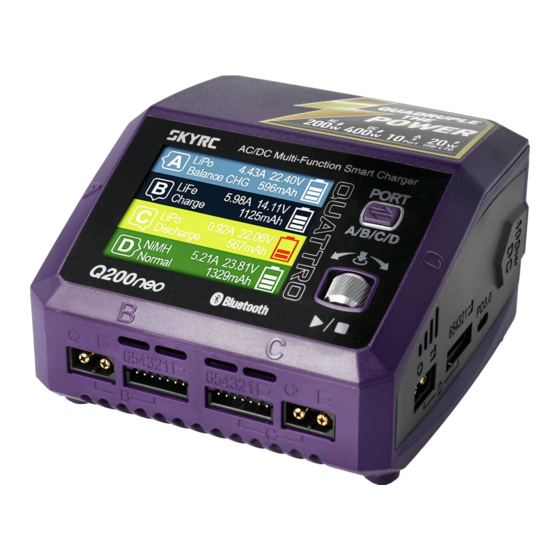

SKYRC Q200neo Instruction Manual Introduction Introducing the SkyRC Q200neo AC/DC Multi-Function Smart Charger, an enhanced version of the Q200. With four independent ports and compatibility with various RC batteries, it adapts to different chemistries. It can act as a quad-output digital power, offering adjustable voltage (1.0V-30V), and current (0.1A-10.0A) per output. -
Page 4: Meet Q200Neo
SKYRC Q200neo Instruction Manual Meet Q200neo Switch Between Port A,B,C, and D LCD Display Scroll to select the parameters and confirm Balance Port Balance Port XT60 Output Socket XT60 Output Socket AC Input 100-240V DC Input 10-30V XT60 Output Socket... -
Page 5: Specification
SKYRC Q200neo Instruction Manual Specification Item Option Specification Model Q200neo 100-240V (50/60Hz) Input Voltage 10.0-30.0V Input Current 30.0A Total 200W One Port: 100W Max Two Ports: 100W*2 Three Ports: 66W*3 Four Ports: 50W*4 PD3.0: 20W Max Power distribution priority: Type-C>A>B>C>D... - Page 6 SKYRC Q200neo Instruction Manual Item Option Specification LiPo/LiFe/LiIon/LiHV 1-6S Battery Types NiMH/NiCd 2-15S 3S/6S/12S LiPo/LiFe/LiIon/LiHV Balance CHG, Charge, Discharge, Storage Working Modes NiMH/NiCd Normal, Discharge, Re-Peak, CYCLE_D_C, CYCLE_C_D Charge, AGM Charge, Cold Charge, Discharge Voltage 1.0-30.0V DC Power Supply Current 0.1-10.0A...
-
Page 7: Warning
SKYRC Q200neo Instruction Manual Warning Q200neo is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the charger by a person responsible for their safety. -
Page 8: Standard Battery Parameters
SKYRC Q200neo Instruction Manual Standard Battery Parameters LiPo Lilon LiFe LiHV NiMH NiCd Nominal voltage 3.7V/cell 3.6V/cell 3.3V/cell 3.8V/cell 1.2V/cell 1.2V/cell 2.0V/cell Max. charge 4.2V/cell 4.1V/cell 3.65V/cell 4.35V/cell 1.5V/cell 1.5V/cell 2.4V/cell voltage Storage voltage 3.8V/cell 3.7V/cell 3.3V/cell 3.85V/cell Allowable fast ≦... -
Page 9: Explanation Of Buttons
SKYRC Q200neo Instruction Manual Explanation of Buttons Port Swtich Button Switch Between Ports A,B,C,and D Scroll Button Navigate through Ports A,B,C,and D in the home menu Short-press to enter into parameters setting and confirm your selection. Scroll the wheel to select different menus or adjust parameters. -
Page 10: Program Flow Chart
SKYRC Q200neo Instruction Manual Program Flow Chart LiPo/6S/Discharge LiFe/4S/Charge NiMH/8S/Normal DC Power LiPo/6S/Balance CHG 3.43V 3.51V 4.05V 22.06 23.81 19.57 14.11 22.42 3.42V 3.52V 4.05V 5.98 0.92 4.21 4.95 4.43 96.8 3.42V 3.56V 4.05V 3.42V 3.56V 4.05V 3.56V 1125mAh 567mAh... - Page 11 SKYRC Q200neo Instruction Manual Note: This flow chart provides an example for one port, and the charts for the four ports (Ports A, B, C, and D) are identical CHARGE SETTING CHARGE SETTING CHARGE SETTING Battery Type LiPo Battery Type...
-
Page 12: Power And Battery Connection
SKYRC Q200neo Instruction Manual Power and Battery Connection 1. Connect to power source There are two options of inputs for SkyRC Q200neo: AC 100-240V or DC 10-30V. AC 100-240V 12V DC Battery *12V DC Battery or 10-30V DC Power Supply 2. -
Page 13: Charging
SKYRC Q200neo Instruction Manual 2) NiMH/NiCd or Pb Battery Connection Charging Various operations are applicable depending on the battery type. This chart illustrates which operations are relevant for different types of batteries. Battery Working Description Type Mode This mode is to balance charge the lithium battery based on the charging rate Balance the user set. - Page 14 SKYRC Q200neo Instruction Manual Battery Working Description Type Mode This mode is to charge the NiMH/NiCd battery based on the charging rate Charge selected. This mode is to discharge the NiMH/NiCd battery based on the discharging rate Discharge selected. NiMH...
-
Page 15: Lithium Battery Program(Lipo/Life/Lilon/Lihv)
SKYRC Q200neo Instruction Manual Lithium Battery Program(LiPo/LiFe/Lilon/LiHV) The following flowchart is a reference to set the program manually. Scroll to select the port and short-press to confirm. Enter CHARGE Select Condition CH A CHARGE SETTING CH A CHARGE SETTING SETTING... -
Page 16: Nimh/Nicd Battery Program
SKYRC Q200neo Instruction Manual NiMH/NiCd Battery Program Scroll to select the port and short-press to confirm. ENTER CHARGE Select Condition CH A CHARGE SETTING CH A CHARGE SETTING SETTING Battery Type NiMH Battery Type NiMH -3mV Scroll to Condition, call out Battery Cell 6S(7.2V) -
Page 17: Pb Lead-Acid Battery Program
SKYRC Q200neo Instruction Manual Pb Lead-Acid Battery Program Scroll to select the port and short-press to confirm. ENTER CHARGE Select Condition CH A CHARGE SETTING CH A CHARGE SETTING SETTING Battery Type NiMH Battery Type Scroll to Condition, call out the Battery Cell 6S(12.0V) -
Page 18: Charger Master
On the top left panel, choose the expected work mode to initiate the program. SkyCharger app Control With the built-in Bluetooth 5.0, Users can easily control the Q200neo charger through the SkyCharger app. The firmware can be upgraded over the OTA(On the Air). -
Page 19: Dc Power
Select the options of DC Power: adjust the output voltage and current. Select Start to activate the DC Power working mode. When acting as a digital power supply, Q200neo can regulate its output voltage or output current at a constant level. Constant Current(CC) Mode and Constant Voltage(CV) Mode can switch automatically as follows: If R load >... -
Page 20: Usb Type-C Pd/Qc3.0 Output
SKYRC Q200neo Instruction Manual the battery's capacity, then switches to CV mode to top off the charge while preventing overcharging. Optimized for Various Loads: Some loads require a specific voltage to operate correctly, while others need a particular current. A CC/CV power supply can adapt to these needs, providing a stable and suitable power output under various load conditions. -
Page 21: Voltage Calibration (For Expert User Only)
SKYRC Q200neo Instruction Manual Voltage Calibration (For expert user only) You can calibrate the voltage directly on the charger with a 6S LiPo battery. For more information, please contact us at info@SkyRC.com Charge Settings On the main interface, press the Scroll Wheel to enter Charge Setting: switch between ports A,B,C... -
Page 22: System Setting
SKYRC Q200neo Instruction Manual System Setting On the main interface, hold the Start button for two seconds to enter the System Setting. Menu Option Definition Safety Timer Customize a period for program protection. Max.Capacity Customize the protection of capacity. Trickle Charge Enable/disable trickle charge. -
Page 23: Firmware Upgrade
Firmware Upgrade To recover from a firmware upgrade failure, please follow these steps: 1. Press and hold the Scroll Wheel, then connect the power cord; Q200neo will power on with a blue screen notice. 2. Connect Q200neo to your computer via a Type-C USB cable;... -
Page 24: Errors And Warnings
SKYRC Q200neo Instruction Manual Errors and Warnings In the event of a fault, the charger will display an error message and sound an alarm. Error Message Explanation Error: DC Input Low! DC input voltage is lower than preset! Error: DC Input High! -
Page 25: Conformity Declaration
SKYRC Q200neo Instruction Manual Conformity Declaration SkyRC Q200neo satisfies all relevant and mandatory CE directives and FCC Part 15 Subpart B. Test Standards Title Result Household and similar electrical appliances - Safety -Part 1: General EN 60335-1 Conform requirements Household and similar electrical appliances – Safety – Part2-29: Particular... -
Page 26: Warranty And Service
This charger is designed and approved exclusively for use with the types of battery stated in this Instruction Manual. SkyRC accepts no liability of any kind if the charger is used for any purpose other than that stated. We are unable to ensure that you follow the instructions supplied with the charger, and we have no control over the methods you employ for using, operating, and maintaining the device. - Page 27 SKYRC Q200neo Instruction Manual SKYRC Q200neo...
- Page 28 SKYRC Q200neo Instruction Manual The manual is subject to change without notice; please refer to our website for the latest version! Manufactured by SKYRC TECHNOLOGY CO., LTD. www.skyrc.com 2023 SkyRC Trchnology Co., Ltd. All Rights Reserved [Version 1.0] SKYRC Q200neo...
