7. Carefully tilt the screen assembly away from the
front panel until you cannot open it any further.
NOTE! The hinges will detach from the back panel
but they are still connected with the two black
screws on the bottom of the hinges.
8. Use a protective foam or cloth over the touch
screen.
9. Carefully lift up the front panel from the base
assembly.
10. Carefully rotate the front panel towards the screen
assembly and place it on the protective foam or
cloth.
M1 HD - Revision A, 05-16-2017

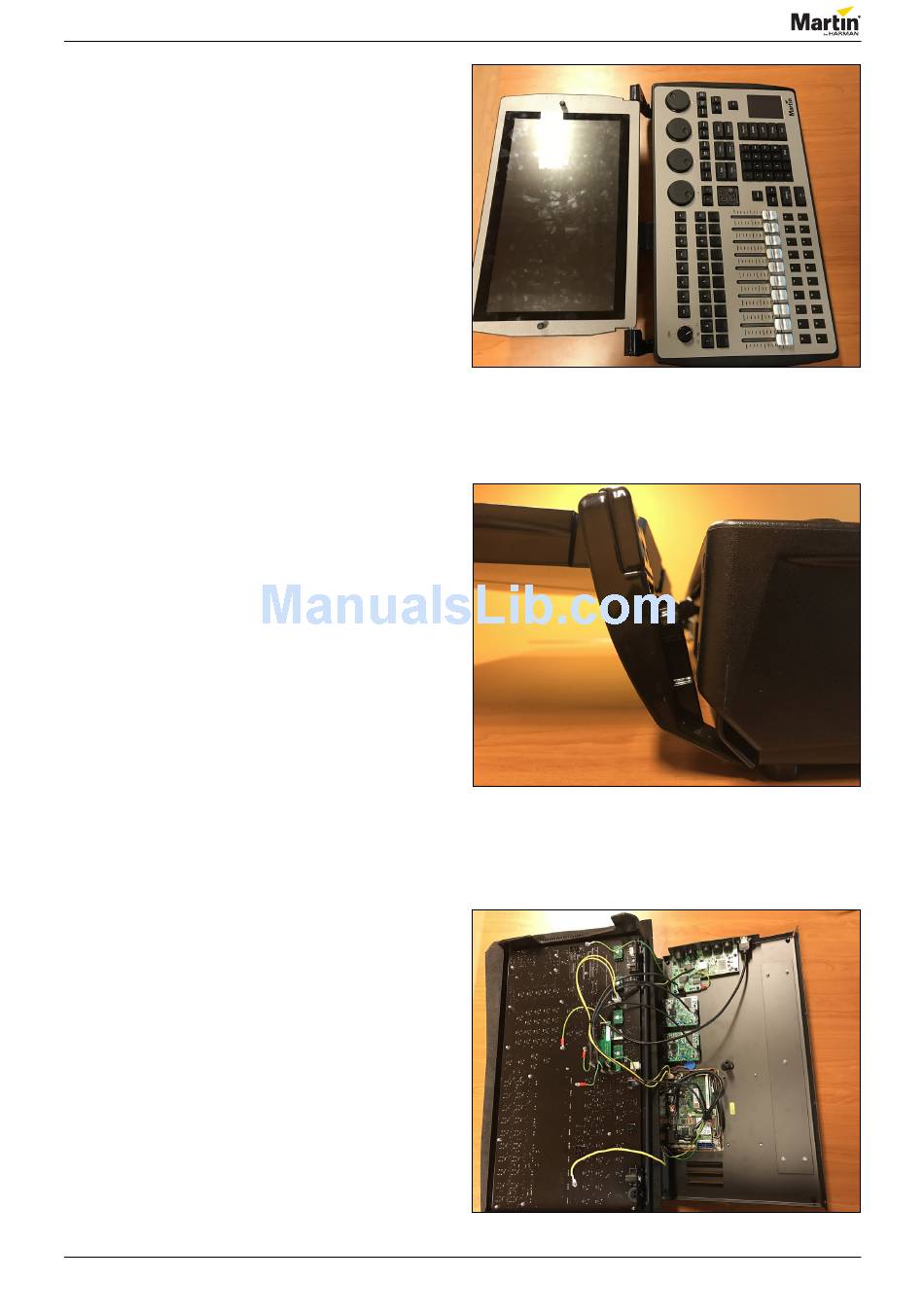

Figure 17: Tilting the screen assembly
Figure 16: Tilting the screen assembly
Figure 18: Lifting up the front panel
