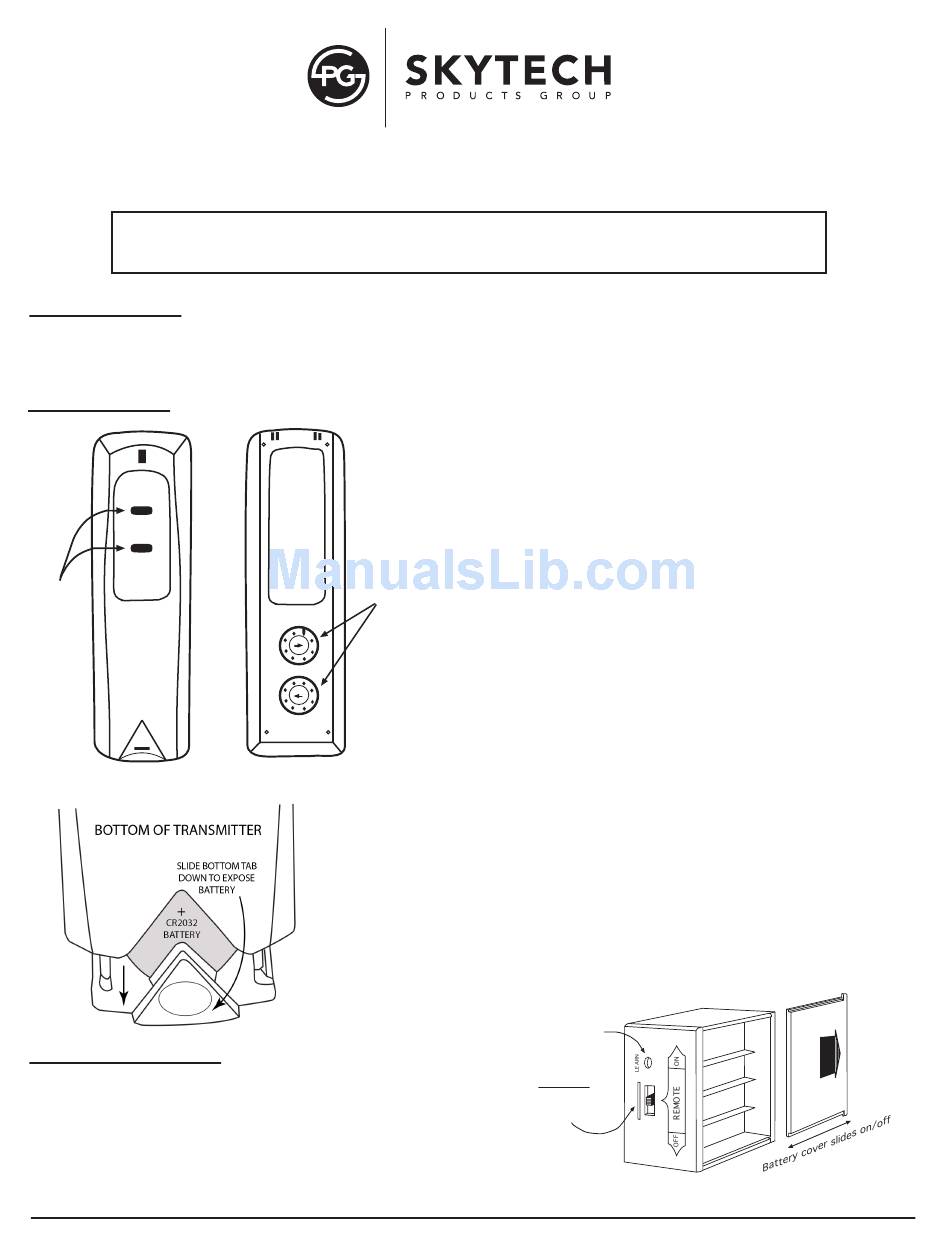

Skytech FG-105 Installation And Operation Instruction Manual

INSTALLATION AND OPERATION INSTRUCTIONS
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS

INTRODUCTION

This remote control system was developed to provide safe, reliable, and user-friendly remote control system for gas
heating appliances. It is a dry contact switch system that can be operated manually from the transmitter. The system
operates on one of 255 manually adjustable dials (security codes) on the transmitter and receiver.

TRANSMITTER

ON
OFF
ON/OFF
BUTTONS
FRONT

REMOTE RECEIVER

The remote receiver operates on (4) AA-size 1.5V batteries. It is
recommended that ALKALINE batteries be used for longer battery
life and maximum microprocessor performance.
IMPORTANT: New or fully charged batteries are essential for
proper operation of the remote receiver.
Skytech: FG-105
MODEL: FG-105
DO NOT ATTEMPT TO INSTALL OR OPERATE
The transmitter has ON and OFF functions that are activated by
pressing either button on the face of the transmitter. When a
button on the transmitter is pressed, a signal light on the
transmitter illuminates briefly to verify that a signal has been
LABEL
sent. Upon initial use, there may be a delay of three seconds
before the remote receiver will respond to the transmitter. This
is part of the system's design. If the signal light does not
illuminate, check the position of the transmitter's battery.
Code Switches
The transmitter has (2) code switches located on the back that
will need to be set to match the codes switches on the receiver
A
O C
when installation is complete for proper operation.
M E
K
G
I
Note: Code setting section.
1
15 3
13 5
11
7
9
BACK
The transmitter operates on (1) 3V Button Cell (Included) that powers the RF
signal. Before using the transmitter the 3V battery must be installed into the
battery compartments. Remove the battery holder from the bottom of the
transmitter insert the 3-Volt button cell battery in the battery holder with the plus (+)
side up. Note the drawing at the left. Battery is shown in the gray area.
It is recommended that a CR2032 lithium battery always be used for longer battery
life and maximum operational performance.
Requires 4-AA 1.5V
alkaline batteries
Learning
button
Slide
Switch
ON
REMOTE
OFF
Remote Receiver
REV. 2-7-18 Page 1
