Rear Brake Cable Routing; Bottom Bracket - Factor O2 Assembly Manual

6-1

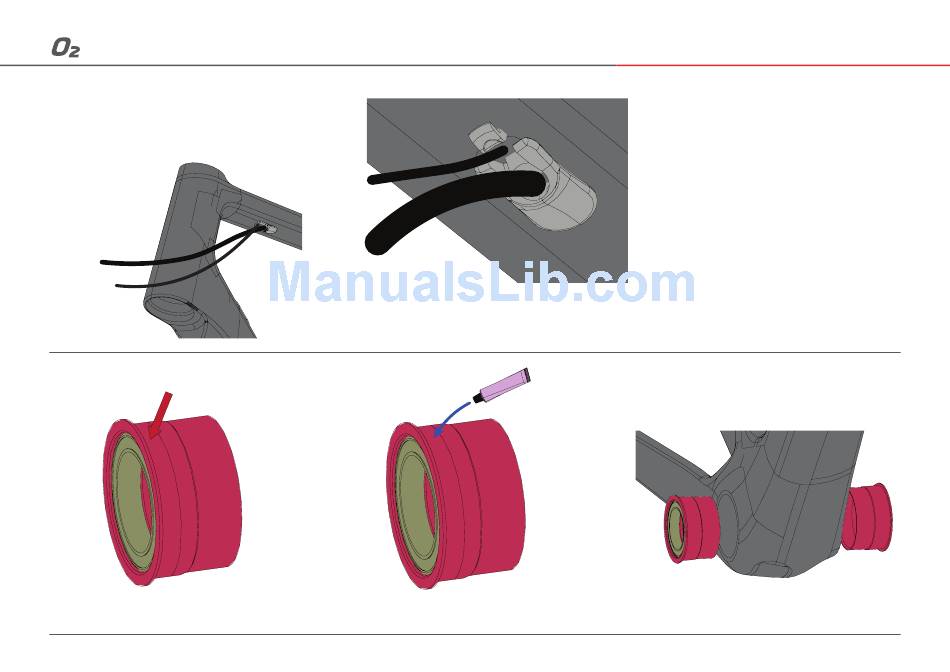

Rear brake cable routing

Cut the cable housing to the correct length
Route rear brake inner wire through top tube as pictured
Brake
housing
Di2 wire
7-1

Bottom Bracket

Clean the inside of the frame bottom bracket & the bottom
bracket cups with an isopropyl alcohol.
Di2 wire
Brake
housing
7-2
Apply Loctite 641 on the grooves of the both bottom bracket
cups.
Assembly Manual
7-3
Install the cups into the frame with BRT-002
bearing press from Enduro Bearings.
09
