25500237 Rev. B1 0516
Safety Message to Installers and Service Personnel
of Emergency Vehicle Safety Equipment
The lives of people depend on your proper installation and servicing of Federal Signal products. It is
important to read and follow all instructions shipped with this product. In addition, listed below are some
other important safety instructions and precautions you should follow:
Before Installation or Service
Qualifications
•
To properly install or service this equipment, you must have a good understanding of automotive electrical
procedures and systems along with proficiency in the installation and service of safety warning equipment.
Always refer to the vehicle service manuals when installing equipment on a vehicle.
Electrical Hazards
•
Never attempt to install aftermarket equipment that connects to the vehicle wiring without reviewing a
vehicle wiring diagram available from the vehicle manufacturer. Ensure that your installation will not
affect vehicle operation and safety functions or circuits.
During Installation or Service
•
To avoid a battery explosion, always disconnect the negative battery cable first and reconnect it last.
Avoid a spark when connecting near or to the battery. The gasses produced by a battery can cause a
battery explosion that could result in vehicle damage and serious injury.
•
Do not install equipment or route wiring or a plug-in cord in the deployment path of an airbag.
•
Before mounting any components, check the manual to be sure that the component you are installing
is suitable for use in that area of the vehicle. Many components are not suitable for use in the engine
compartment or in other areas subject to extreme environmental exposure.
•
When drilling into a vehicle structure, be sure that both sides of the surface are clear of anything
that could be damaged. Remove all burrs from drilled holes to prevent electrical shorts, grommet all
drilled holes through which wiring passes. Also ensure that mounting screws do not cause electrical or
mechanical damage to the vehicle.
After Installation or Service
•
If a vehicle seat is temporarily removed, verify with vehicle manufacturer if the seat needs to be
recalibrated for proper airbag deployment.
•
To ensure proper operation, test all vehicle functions, including horn operation, vehicle safety functions,
and vehicle light systems. Ensure that installation has not affected vehicle operation or changed any
vehicle safety function or circuit.
•
After installation and testing are complete, provide a copy of these instructions to instructional staff and
all operating personnel.
•
File these instructions in a safe place and refer to them when maintaining and/or reinstalling the product.
Failure to follow all safety precautions and instructions may result in property damage, serious injury,
or death.
Installation Instructions for the Top-Channel for

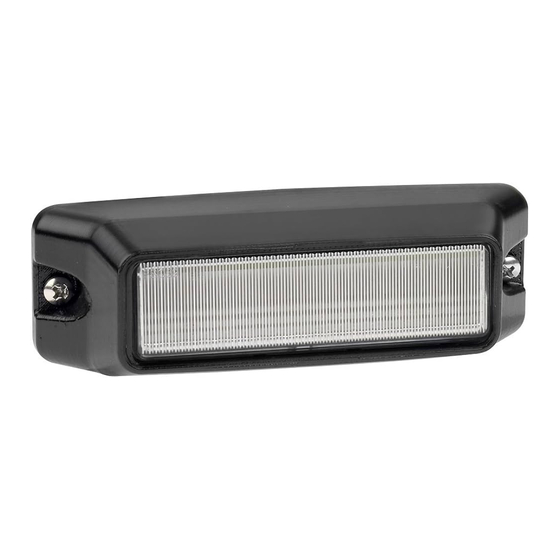

IMPAXX ® or MicroPulse ™ Lights on the PBX Police
Push Bar
Advertisement
Table of Contents
Related Manuals for Federal Signal Corporation IMPAXX
Summary of Contents for Federal Signal Corporation IMPAXX
- Page 1 Installation Instructions for the Top-Channel for IMPAXX ® or MicroPulse ™ Lights on the PBX Police Push Bar 25500237 Rev. B1 0516 Safety Message to Installers and Service Personnel of Emergency Vehicle Safety Equipment The lives of people depend on your proper installation and servicing of Federal Signal products. It is important to read and follow all instructions shipped with this product.
- Page 2 Installing the Top Channel with IMPAXX or MicroPulse Lights to the PBX Push Bar Unpacking the Product After unpacking the product, inspect it for damage that may have occurred in transit. If it has been damaged, do not attempt to install or operate it. File a claim immediately with the carrier, stating the extent of damage.
- Page 3 Installing the Top Channel with IMPAXX or MicroPulse Lights to the PBX Push Bar Installing the Top Channel To install the top channel on the push bar: 1a. Install the IPX lights (not included) to the brackets using 8-32 screws supplied with the IPX. Attach assemblies to pushbumper as shown in Figure 1a using the supplied M4 hardware.
- Page 4 Installing the Top Channel with IMPAXX or MicroPulse Lights to the PBX Push Bar 2. Verify that the lights are centered properly by temporarily holding the top channel in position. Adjust the light position, if necessary. 3. Install the wiring harness according the instructions packed with the light.
- Page 5 Installing the Top Channel with IMPAXX or MicroPulse Lights to the PBX Push Bar Maintaining the Push Bar Assembly Regularly clean stainless steel and gloss black finishes with a mild soap and water. Apply a non-abrasive wax or polish. To polish small scratches on stainless steel, use stainless steel polish. To avoid making scratches on the stainless steel surfaces, follow the grain of the steel while polishing.
- Page 6 2645 Federal Signal Drive, University Park, IL 60484-3167 Phone: 708-534-3400 • 800-264-3578 • Fax: 800-682-8022 www.fedsig.com IMPAXX is a registered trademark of Federal Signal Corporation.
