Federal Signal Corporation SignalMaster SMLED-PLS-6 Instruction Sheet

SAFETY MESSAGE TO INSTALLERS AND OPERATORS
People's lives depend on your safe installation
of our products. It is important to read, under-
stand and follow all instructions shipped with the
products. In addition, listed below are some other
important safety instructions and precautions you
should follow:
• To properly install this light, you must have
a good understanding of automotive electrical
procedures and systems, along with proficiency
in the installation and use of safety warning
equipment.
• When drilling into a vehicle structure, be sure
that both sides of the surface are clear of any-
thing that could be damaged.
• For the light to function properly, a separate
ground connection must be made. If practical,
it should be connected to the negative battery
terminal. At a minimum, it may be attached
to a solid metal body or chassis part that will
provide an effective ground path as long as the
light system is to be used.
• Locate the light control so the VEHICLE and
CONTROL can be operated safely under all
driving conditions.
• Do not attempt to activate or deactivate light
control while driving in a hazardous situation.
• If a vehicle seat is temporarily removed, verify
with the vehicle manufacturer if the seat
needs to be recalibrated for proper airbag
deployment.
• This product contains high intensity LED de-
vices. To prevent permanent eye damage, DO
NOT stare into the light beam at close range.
• You should frequently inspect the light to
ensure that it is operating properly and that it
is securely attached to the vehicle.
• File these instructions in a safe place and refer
to them when maintaining and/or reinstalling
the product.
Failure to follow all safety precautions and instructions
may result in property damage, serious injury, or death.
INSTRUCTION SHEET
FOR
LED SIGNALMASTER™ LIGHT ASSEMBLIES
I. INSTALLATION
These lights are intended for secondary warn-
ing only. They are not intended for use as a
primary warning system.
When installing equipment inside air bag
equipped vehicles, the installer MUST ensure
that the equipment is installed ONLY in areas
recommended by the vehicle manufacturer.
Failure to observe this warning will reduce
the effectiveness of the airbag, damage the
airbag, or potentially damage or dislodge the
equipment, causing serious injury or death to
you or others.

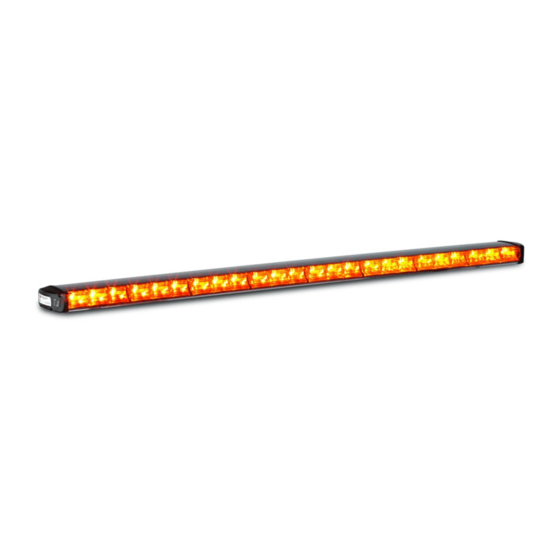

A. LED SignalMaster
Install the light assembly as described in the
mounting kit instructions, and route the cable to the even-
tual location of the control unit.
The LED SignalMaster light assembly must be
oriented correctly to achieve proper directional
signaling. The unit should be oriented with the let-
tering on the warning label and nameplate legible.
If this lettering is upside-down, the unit is NOT
oriented properly.
Install the control unit in an adequately ventilated
area. Never the unit install near heater ducts.
B. Control Unit
Before selecting a mounting location for the control
unit, it is necessary to plan wiring and cable routing.
Install the control unit and complete the wiring as
described in the control unit instructions. See Tables 1 and
2 for wire callouts and Table 3 for lighthead colors.
