- Page 1 CN SignalMaster FSJoin ™ ™ Installation, Maintenance, and Service Manual 25500678 REV. A0 1120 Printed in U.S.A. © Copyright 2020 Federal Signal Corporation...
- Page 2 A copy of this limited warranty can also be obtained by written request to Federal Signal Corporation, 2645 Federal Signal Drive, University Park, IL 60484, email to info@fedsig.com or call +1 708-534-3400.
-
Page 3: Table Of Contents
Contents Safety Messages for Installers and Service Personnel ............... 4 Safety Messages for Operators of Warning Lights ..............7 An Overview of the CN SignalMaster ™ .......................9 LED Lights, Colors, and Flash Patterns ......................9 FSJoin .................................9 Installing the CN SignalMaster ..................... 10 Mounting the CN SignalMaster ......................... -
Page 4: Safety Messages For Installers And Service Personnel
Ensure that all wires and fuses are rated correctly to handle the device and system amperage requirements. CN SignalMaster FSJoin ™ Federal Signal www.fedsig.com... - Page 5 Safety Messages for Installers and Service Personnel • Never attempt to install aftermarket equipment that connects to the vehicle wiring without reviewing a vehicle wiring diagram available from the vehicle manufacturer. Ensure that your installation will not affect vehicle operation or mandated safety functions or circuits.
- Page 6 • File these instructions in a safe place and refer to them when maintaining and/or reinstalling the product. Failure to follow all safety precautions and instructions may result in property damage, serious injury, or death. RETAIN AND REFER TO THIS MESSAGE CN SignalMaster FSJoin ™ Federal Signal www.fedsig.com...
-
Page 7: Safety Messages For Operators Of Warning Lights
Safety Messages for Operators of Warning Lights Safety Messages for Operators of Warning Lights People’s lives depend on your safe use of our products. Listed below are some important safety instructions and precautions you should follow. • Do not attempt to activate or deactivate the light system control while driving in a hazardous situation. - Page 8 • To prevent sliding of light assembly on mounting surface, avoid quick acceleration and hard stops. Failure to follow these precautions may result in property damage, serious injury, or death. RETAIN AND REFER TO THIS MESSAGE CN SignalMaster FSJoin ™ Federal Signal www.fedsig.com...
-
Page 9: An Overview Of The Cn Signalmaster

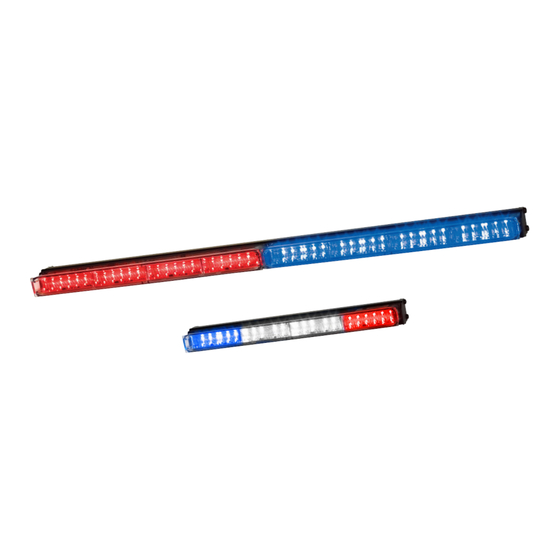

An Overview of the CN SignalMaster ™ The CN SignalMaster FSJoin ™ is a single-level LED light bar with ROC ™ (Reliable On- Board Circuitry) and Solaris ® LED technologies. ROC eliminates approximately 85 percent of potential failure points by incorporating a printed circuit board (PCB) in one assembly to substantially reduce the number of electrical connections. -
Page 10: Installing The Cn Signalmaster
4. Install the grommet, route the cables, then secure the light bar with the 1/4-20 Keps nuts. Leave slack in the cables behind the panel to ease the removal of the ® light bar. CN SignalMaster FSJoin ™ Federal Signal www.fedsig.com... -
Page 11: Wiring The Cn Signalmaster In The Vehicle
Installing the CN SignalMaster Figure 1 Mounting brackets attached to CN SignalMaster SIGNALMASTER ALUMINUM EXTRUSION STUD FOR 1/4-20 KEP NUT #10 TORX SCREW (4) MOUNTING BRACKET (2) 290A6967 Wiring the CN SignalMaster in the Vehicle ™ INSTALLATION PRECAUTIONS: The warning system and/or two-way radio system may operate improperly if a two-way radio antenna is installed on or within 18 inches of the light bar. -
Page 12: Wiring The Signalmaster Function
Serial Interface Module and their colors. The wire’s first color is the predominant color and additional colors are stripes. For programming options, see the instructions included with the Interface Module or the Federal Signal serial control head. CN SignalMaster FSJoin ™ Federal Signal www.fedsig.com... -
Page 13: Table 2 Cn Signalmaster Controls And Wires From The Serial Interface Module
Installing the CN SignalMaster Table 2 CN SignalMaster controls and wires from the Serial Interface Module Light Bar Controls Wire Color Description Mode 1 Blue Lowest priority Mode 2 Blue/White Overrides Mode 1 Mode 3 Black/Red Overrides Modes 1 and 2 Steady Burn Red/White One (driver side) or two heads (driver and... -
Page 14: Setting Configuration Options
DIP Switch 4 to ON. For more information, see the instructions included with the network- powered device. Figure 2 DIP switches on the CN SignalMaster controller PCBA FOR THE LOCATION OF THE CONTROLLER PCB, SEE FIGURE 4 ON PAGE 17 AND FIGURE 5 ON PAGE 18. 290A6977 CN SignalMaster FSJoin ™ Federal Signal www.fedsig.com... -
Page 15: Testing The Light Bar
Installing the CN SignalMaster Testing the Light Bar LIGHT HAZARD: To be an effective warning device, an emergency warning system produces bright light that can be hazardous to your eyesight when viewed at a close range. Do not stare directly into this lighting product at a close range, or permanent damage to your eyesight may occur. -
Page 16: Maintaining And Servicing The Cn Signalmaster
4. Inspect the lip seal(s) to ensure it is not torn, brittle, or damaged. Replace it if necessary. For replacement parts, refer to Table 4 on page 20. 5. Reassemble the light bar. CN SignalMaster FSJoin ™ Federal Signal www.fedsig.com... -
Page 17: Figure 4 Exploded Rear View Of Model Cnsmj8
Maintaining and Servicing the CN SignalMaster™ Figure 4 Exploded rear view of Model CNSMJ8 #10-32 6-LOBE SCREW (4) BRACKET, RIGHT END CAP (2) LIP SEAL (2) ROC PCB ASSEMBLY (2) LENS (2) LOCATION OF CONTROLLER PCBA #6-32 SCREW (2) REFLECTOR (8) PWR/GND HARNESS CAT5... -
Page 18: Figure 5 Exploded Rear View Of Model Cnsmj4
CAT5 LENS (2) BOARD TO BOARD CABLE,144" RH END CAP REFLECTOR (8) LIP SEAL (2) EXTRUSION (2) CAP (2) #10 SIX-LOBE SCREW(8) BOARD TO BOARD CABLE,36" BUSHING (3) LH END CAP(2) FOAM FILLER CN SignalMaster FSJoin ™ Federal Signal www.fedsig.com... -
Page 19: Replacing A Reflector
➂ SLIDE THE REFECTOR FOWARD UNTIL IT SNAPS INTO PLACE. 290A6978 Getting Technical Support and Service For technical support and service, please contact: Federal Signal Corporation Service Department Public Safety Systems Phone: 1-800-433-9132 Email: empserviceinfo@fedsig.com Installation, Maintenance, and Service Manual... -
Page 20: Ordering Replacement Parts
University Park, IL 60484-3167 2645 Federal Signal Drive University Park, Illinois 60484-3167 www.fedsig.com Customer Support Police/Fire-EMS: 800-264-3578 • +1 708 534-3400 Work Truck: 800-824-0254 • +1 708 534-3400 Technical Support 800-433-9132 • +1 708 534-3400 CN SignalMaster FSJoin ™ Federal Signal www.fedsig.com...
