Summary of Contents for Manhattan 178938

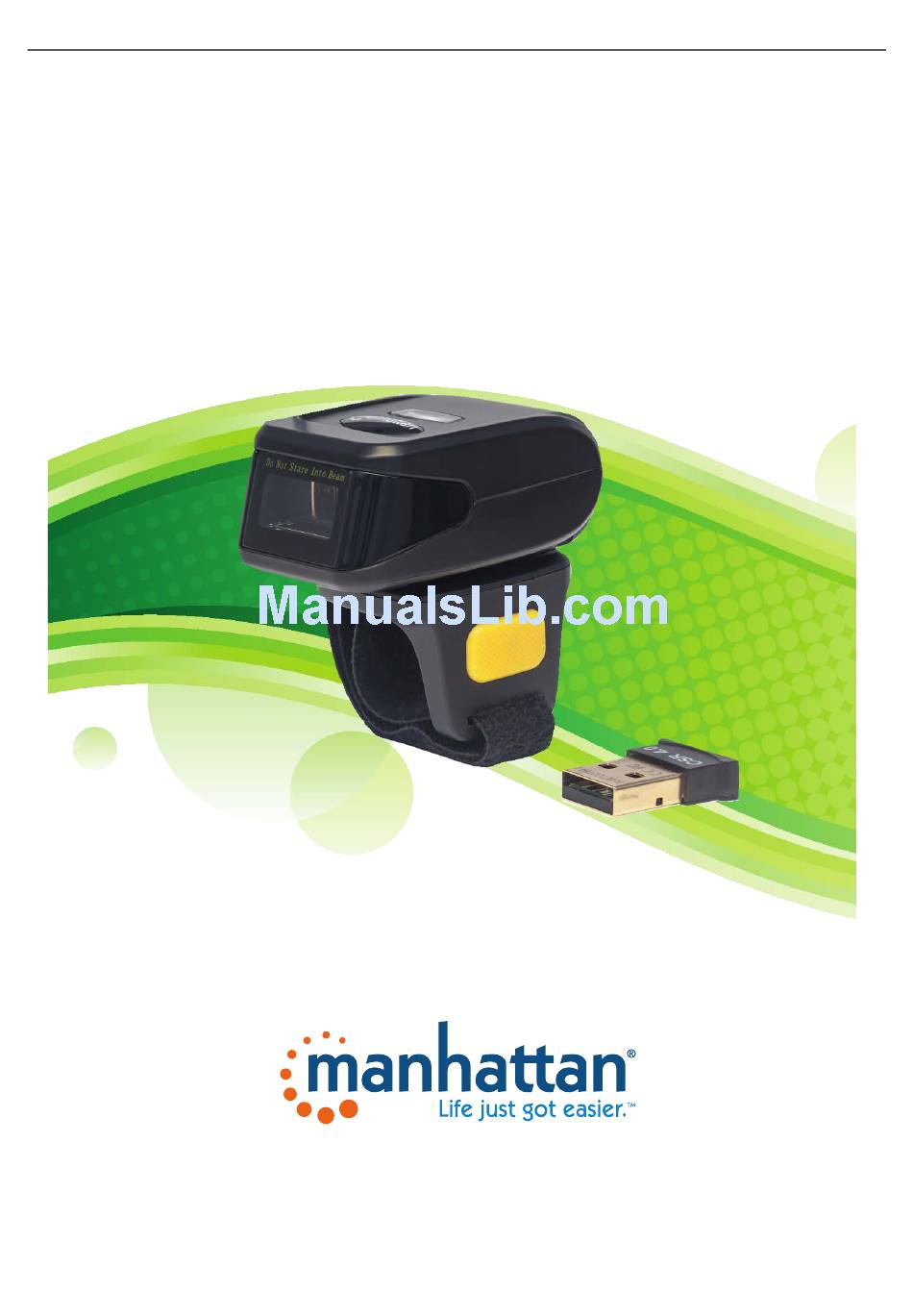

- Page 1 1D Mini Ring Barcode Scanner User Manual Model 178938 manhattanproducts.com MH-178938_UM-1117_REV-5.01...
-
Page 2: Before You Begin
Do not disassemble the device or remove the seal label from the device. Doing so will void the Manhattan product warranty. All pictures in this manual are for reference only. The actual product may differ. Manhattan reserves the right to make changes to any software or hardware to improve reliability, function, or design at any time without notice. -
Page 3: Table Of Contents
1D Mini Ring Barcode Scanner—178938 User Manual TABLE OF CONTENTS CHAPTER 1: GETTING STARTED ..........................4 ................................. 4 NTRODUCTION ..................................4 EATURES ......................... 4 ARCODE VERVIEW AND CANNING ROCEDURE CHAPTER 2: SCANNER PARAMETERS ........................5 ..............................5 HYSICAL ARAMETERS .............................. 5... -
Page 4: Chapter 1: Getting Started

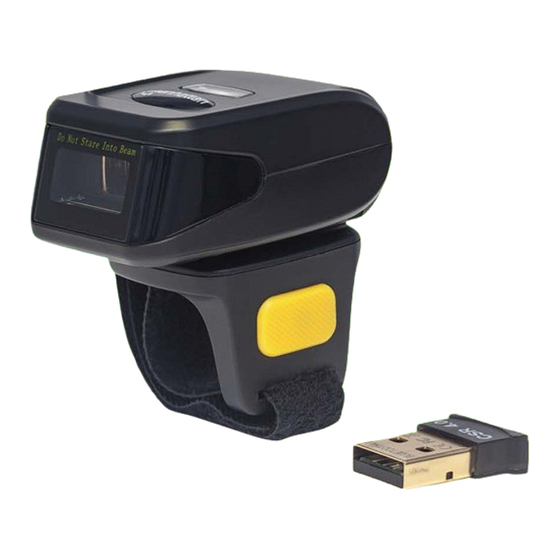

Chapter 1: Getting Started Introduction The Manhattan 1D Mini Ring Barcode Scanner is a productivity tool that is easy to wear and use. It combines Bluetooth wireless connectivity with hands-free usability and a range of scanning options. This wearable tech barcode scanner can read almost all 1D barcodes and features enhanced, efficient LED illumination. -
Page 5: Chapter 2: Scanner Parameters
1D Mini Ring Barcode Scanner User Manual Chapter 2: Scanner Parameters Physical Parameters Physical Parameter Value Device weight < 35 g / 1.2 oz. Device Size 52.8 (L) x 36 (W) x 28.6 (H) mm / 2.1 (L) x 1.4 (W) x 1.1 (H) in. Material Color Black... -
Page 6: Depth Of Field
1D Mini Ring Barcode Scanner User Manual Depth of Field Range of decoding Type of Code Code Dimension Nearest Farthest Code 39 0.076 mm (0.003 in.) 40 mm (1.6 in.) 90 mm (3.5 in.) Code 39 0.1 mm (0.004 in.) 30 mm (1.2 in.) 120 mm (4.7 in.) Code 39... -
Page 7: Chapter 3: Wireless Settings
Chapter 3: Wireless Settings Bluetooth Barcode Scanner Pairing The Manhattan Wireless 1D Mini Ring Barcode Scanner can be connected to PCs, mobile phones and other devices according to the user's needs. Scan the programming barcodes on the next page to configure the scanner. -
Page 8: Functional Modes
1D Mini Ring Barcode Scanner User Manual Functional Modes Normal Mode Transmits barcode data to the computer/device in real time. %%ALLPT-SET Normal Mode Offline Mode Uploads data normally if user is in range of computer/device; stores data if out of range for upload once back in range. -
Page 9: Power Off
1D Mini Ring Barcode Scanner User Manual Power Off Turns off the scanner immediately. %%POWEROFF Power Off Stand-by Time The default standby time for this wireless scanner is 20 seconds. Use the programming codes below to set a different standby time. Begin by scanning the "Start Setting" code. Then, scan the corresponding time-programming code. -
Page 10: Chapter 4: Symbologies
1D Mini Ring Barcode Scanner User Manual Chapter 4: Symbologies Set Default Parameter The Ring Barcode Scanner can be reset to two types of defaults: factory defaults or custom defaults. Scan the appropriate barcode below to reset the scanner to its default settings and/or set the scanner’s current settings as the custom default. - Page 11 1D Mini Ring Barcode Scanner User Manual Enable/Disable UPC-E To enable or disable UPC-E, scan the appropriate bar code below. *Enable UPC-E Disable UPC-E Transmit UPC-E Check Digit Scan the appropriate bar code below to transmit the symbol with or without the UPC-E check digit. *Transmit UPC-E Check Digit Do Not Transmit UPC-E Check Digit UPC-E Preamble...
-
Page 12: Code 128
1D Mini Ring Barcode Scanner User Manual Transmit UPC-E1 Check Digit Scan the appropriate code below to transmit the symbol with or without the UPC-E1 check digit. *Transmit UPC-E1 Check Digit Do Not Transmit UPC-E1 Check Digit Enable/Disable EAN-8 To enable or disable EAN-8, scan the appropriate bar code below. *Enable EAN-8 Disable EAN-8 Enable/Disable EAN-13... -
Page 13: Code 39
1D Mini Ring Barcode Scanner User Manual Enable/Disable ISBT 128 To enable or disable ISBT 128, scan the appropriate bar code below. *Enable ISBT 128 Disable ISBT 128 Code 39 Enable/Disable Code 39 To enable or disable Code 39, scan the appropriate bar code below. *Enable Code 39 Disable Code 39 Convert Code 39 to Code 32 (Italian Pharma Code) -
Page 14: Code 93
1D Mini Ring Barcode Scanner User Manual Code 93 Enable/Disable Code 93 To enable or disable Code 93, scan the appropriate bar code below. Enable Code 93 *Disable Code 93 Code 11 Enable/Disable Code 11 To enable or disable Code 11, scan the appropriate bar code below. Enable Code 11 Disable Code 11 Interleaved 2 of 5... -
Page 15: Codabar
1D Mini Ring Barcode Scanner User Manual Codabar Enable/Disable Codabar To enable or disable Codabar, scan the appropriate bar code below. Enable Codabar *Disable Codabar Enable/Disable MSI To enable or disable MSI, scan the appropriate bar code below. Enable MSI *Disable MSI Enable/Disable RSS-14 To enable or disable RSS-14, scan the appropriate bar code below. -
Page 16: Chapter 5: Customized Data Inclusion
1D Mini Ring Barcode Scanner User Manual Chapter 5: Customized Data Inclusion Introduction For some applications, users may wish to include additional information/functionality such as barcode type, data acquisition time or a delimiter to the barcode data. The functions here can attach customized prefix and suffix information to the barcode's scanned data or move the cursor to a new field or line without changing the barcode data itself. -
Page 17: Numeric Bar Codes
1D Mini Ring Barcode Scanner User Manual 4. Scan programming code Scan Suffix 1 5. Scan Numeric barcodes “1” ,“0”, “8”, “0” 6. The setting is complete; the barcode data will be received as L<Data>P Example 2: To set character “L” as prefix 1. - Page 18 1D Mini Ring Barcode Scanner User Manual Cancel To change the selection or cancel an incorrect entry, scan the bar code below. Cancel...
-
Page 19: Appendix
1D Mini Ring Barcode Scanner User Manual Appendix Setting Prefixes and Suffixes Via Serial Commands To append a prefix and suffixes to the decode data: 1. Set the Scan Data Transmission Format (parameter 0xE2) to the desired option. 2. Enter the required value(s) for Prefix, Suffix1 or Suffix2 using the hex values for the desired ASCII value from table that follows: Character Equivalents Full ASCII Code 39... - Page 20 1D Mini Ring Barcode Scanner User Manual Full ASCII Code 39 Scan Value Hex Value Keystroke Encode Char. 1023 CTRL W 1024 CTRL X 1025 CTRL Y 1026 CTRL Z 1027 CTRL [ 1028 CTRL \ 1029 CTRL ] 1030 CTRL 6 1031 CTRL -...
- Page 21 1D Mini Ring Barcode Scanner User Manual Full ASCII Code 39 Scan Value Hex Value Keystroke Encode Char. 1051 1052 1053 1054 1055 1056 1057 1058 1059 1060 < 1061 1062 > 1063 1064 1065 1066 1067 1068 1069 1070 1071 1072 1073...
- Page 22 1D Mini Ring Barcode Scanner User Manual Full ASCII Code 39 Scan Value Hex Value Keystroke Encode Char. 1079 1080 1081 1082 1083 1084 1085 1086 1087 1088 1089 1090 1091 1092 1093 1094 1095 1096 ‘ 1097 1098 1099 1100 1101 1102...
- Page 23 1D Mini Ring Barcode Scanner User Manual Full ASCII Code 39 Scan Value Hex Value Keystroke Encode Char. 1107 1108 1109 1110 1111 1112 1113 1114 1115 1116 1117 1118 1119 1120 1121 1122 1123 1124 1125 1126 1127 Undefined Values from 1128 through 1255 (hex values 80h through FFh for SSI) may also be set.
-
Page 24: Additional Information
ITALIANO: Per informazioni sulla garanzia, accedere a manhattan-products.com/t/warranty. EN MÉXICO: Póliza de Garantía Manhattan — Datos del importador y responsable ante el consumidor IC Intracom México, S.A.P.I. de C.V. • Av. Interceptor Poniente # 73, Col. Parque Industrial La Joya, Cuautitlán Izcalli, Estado de México, C.P. - Page 25 1D Mini Ring Barcode Scanner User Manual 2. El comercializador no tiene talleres de servicio, debido a que los productos que se garantizan no cuentan con reparaciones, ni refacciones, ya que su garantía es de cambio físico. 3. La garantía cubre exclusivamente aquellas partes, equipos o sub-ensambles que hayan sido instaladas de fábrica y no incluye en ningún caso el equipo adicional o cualesquiera que hayan sido adicionados al mismo por el usuario o distribuidor.
- Page 26 All trademarks and trade names are the property of their respective owners. © IC Intracom. All rights reserved. Manhattan is a trademark of IC Intracom, registered in the U.S. and other countries.
