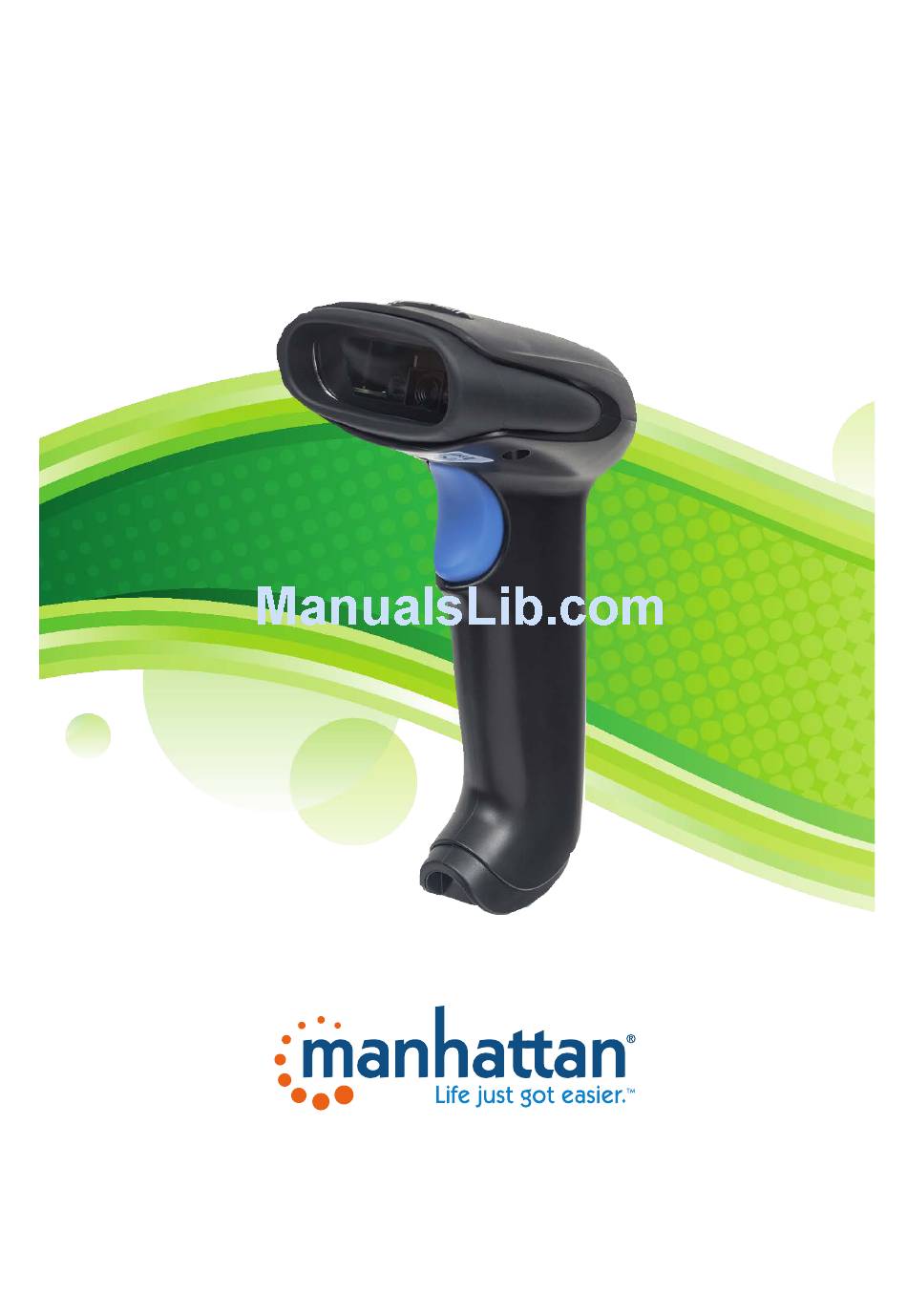

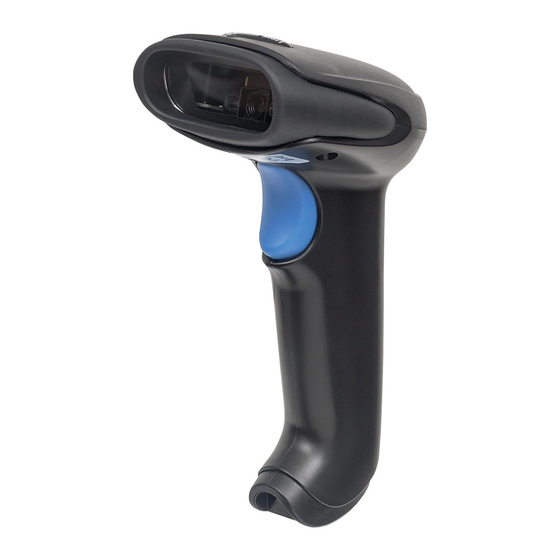

  • Page 1 Wireless 2D Barcode Scanner User Manual Model 178907 manhattanproducts.com MH-178907_UM-1117_REV5.01...

  • Page 2: Before You Begin

    Do not disassemble the device or remove the seal label from the device. Doing so will void the Manhattan product warranty. All pictures in this manual are for reference only. The actual product may differ. Manhattan reserves the right to make changes to any software or hardware to improve reliability, function, or design at any time without notice.

  • Page 3: Table Of Contents

    Wireless 2D Barcode Scanner User Manual TABLE OF CONTENTS CHAPTER 1: GETTING STARTED ..........................5 ................................. 5 NTRODUCTION ..................................5 EATURES ......................... 5 ARCODE VERVIEW AND CANNING ROCEDURE ..........................6 ECHNICAL RAWING AND NFORMATION CHAPTER 2: SCANNER PARAMETERS ........................7 ..............................
  • Page 4 Wireless 2D Barcode Scanner User Manual GS1 DataBar (RSS) ..............................19 Interleaved 2 of 5..............................19 Industrial 2 of 5 ..............................19 Matrix 2 of 5 ................................19 Standard 2 of 5 ............................... 19 MSI ..................................19 Telepen ................................... 20 QR Code ..................................

  • Page 5: Chapter 1: Getting Started

    User Manual Chapter 1: Getting Started Introduction The Manhattan Wireless 2D Barcode Scanner is a near-universal barcode reader. Its 2.4G and Bluetooth transmission modes ensure exact and secure data management, offering excellent performance and versatility. The scanner boasts an ergonomic trigger and handle that guarantees easy and comfortable operation.

  • Page 6: Technical Drawing And Information

    Wireless 2D Barcode Scanner User Manual Technical Drawing and Information...

  • Page 7: Chapter 2: Scanner Parameters

    Wireless 2D Barcode Scanner User Manual Chapter 2: Scanner Parameters Physical Parameters Parameter Value Device Weight < 155 g / 0.34 lbs. (without cable) Device Size 150 (L) x 70 (W) x 95 (H) mm / 5.9 (L) x 2.8 (W) x 3.7 (H) in. Material Color Black and Light Blue...

  • Page 8: Depth Of Field

    Wireless 2D Barcode Scanner User Manual Depth of Field Code Code Dimension Nearest Farthest Code 39 0.127 mm (0.01 in.) 10 mm (0.4 in.) 70 mm (2.8 in.) Code 39 0.5 mm (0.02 in.) 30 mm (1.2 in.) 250 mm (9.8 in.) Code 39 1 mm (0.04 in.) 150 mm (5.9 in.)

  • Page 9: Chapter 3: Wireless Settings

    Wireless 2D Barcode Scanner User Manual Chapter 3: Wireless Settings Bluetooth Barcode Scanner Pairing The Manhattan Wireless 2D Barcode Scanner can be connected to PCs, mobile phones and other devices. Scan the programming barcodes to configure the scanner. EZ Pair One-key pairing Pairing the Barcode Scanner 1.

  • Page 10: Functional Modes

    Wireless 2D Barcode Scanner User Manual Functional Modes Normal Mode Transmits barcode data to the computer/device in real time %%ALLPT-SET Normal Mode Offline Mode This function saves scanned data when the scanner is out of range of a host device and uploads it normally when it is back in range %%ALLAEM-SET Offline Mode...

  • Page 11: Chapter 4: System Settings

    Wireless 2D Barcode Scanner User Manual Chapter 4: System Settings Buzzer Setting Sound On and Off Turns the buzzer on or off, which sounds after a successful scan has occurred Buzzer Off Buzzer On (Default)* Trigger Timeout Sets the time at which the scanner times out after the last scan; the default setting is 30 seconds. Standby Time The default standby time for this wireless scanner is 20 seconds.

  • Page 12: Show/Hide An Ios Keyboard With A Single- Or Double-Trigger Click

    Wireless 2D Barcode Scanner User Manual Show/Hide an iOS Keyboard with a Single- or Double-Trigger Click When the scanner is connected to an Apple device, users can scan either of the programming codes below to enable a single or double click of the trigger to show or hide the on-screen keyboard. %%ShowPads %%BT_Pads_En Enable/Disable Single Trigger Click...

  • Page 13: Chapter 5: Customized Data Inclusion

    Wireless 2D Barcode Scanner User Manual Chapter 5: Customized Data Inclusion Introduction For some applications, users may wish to include additional information such as barcode type, data acquisition time or a delimiter to the barcode data. The functions here will append the prefix and suffix to the data without changing the barcodes.

  • Page 14: Custom Suffix

    Wireless 2D Barcode Scanner User Manual Prefix Setting Code The 1 Prefix Setting Code The 2 Prefix Setting Code The 3 Prefix Setting Code The 4 Prefix Setting Code The 5 Prefix Setting Code The 6 Prefix Setting Code The 7 Prefix Setting Code The 8 Prefix Setting Code...
  • Page 15 Wireless 2D Barcode Scanner User Manual Add multiple suffixes 1. Scan the “Start/Stop Setting” programming code to enter the setting mode; 2. Scan “the 1 Digit Suffix Setting Code” in the table below; 3. Scan the first set of numeric barcodes (See Appendix A’s “Digit Barcodes”); 4.

  • Page 16: Terminating Character Setting

    Wireless 2D Barcode Scanner User Manual Terminating Character Setting Corresponding terminating character can be added during using the scanner to meet the user's requirements. Add Return CR* Cancel Add Return CR Add Newline LF Cancel Add Newline LF Add Return and Newline CR+LF Cancel Add Return and Newline CR+LF Invisible Characters Setting...
  • Page 17 Wireless 2D Barcode Scanner User Manual Invisible Character Invisible Character Invisible Character Invisible Character Invisible Character Invisible Character Invisible Character Invisible Character...

  • Page 18: Chapter 6: Symbologies

    Chapter 6: Symbologies Introduction Every symbology (barcode system) has its own attributes. The programming barcodes that follow will configure the scanner so it can read them. Manhattan recommends disabling those that are rarely used to increase the efficiency of the scanner. EAN/UPC...

  • Page 19: Gs1 Databar (Rss)

    Wireless 2D Barcode Scanner User Manual Enable China Post Disable China Post* GS1 DataBar (RSS) Enable RSS Disable RSS* Interleaved 2 of 5 Enable Interleaved 2 of 5* Disable Interleaved 2 of 5 Industrial 2 of 5 Enable Industrial 2 of 5 Disable Industrial 2 of 5* Matrix 2 of 5 Enable Matrix 2 of 5...

  • Page 20: Telepen

    Wireless 2D Barcode Scanner User Manual Telepen Enable Telepen Disable Telepen* QR Code Enable QR Code* Disable QR Code Data Matrix Enable Data Matrix* Disable Data Matrix PDF 417 Enable PDF 417* Disable PDF 417 Aztec Enable Aztec Disable Aztec* Hanxin Enable Hanxin Disable Hanxin*...

  • Page 21: Appendices

    Wireless 2D Barcode Scanner User Manual Appendices Appendix A-Numeric Barcodes (For Adding Prefix and Suffix)

  • Page 22: Appendix B-Ascii Table

    Wireless 2D Barcode Scanner User Manual Appendix B-ASCII Table ASCII Char NUL (Null char.) SOH (Start of Header) STX (Start of Text) ETX (End of Text) EOT (End of Transmission) ENQ (Enquiry) ACK (Acknowledgment) BEL (Bell) BS (Backspace) HT (Horizontal Tab) LF (Line Feed) VT (Vertical Tab) FF (Form Feed)
  • Page 23 Wireless 2D Barcode Scanner User Manual ASCII Char $ (Dollar Sign) % (Percent) & (Ampersand) ` (Single Quote) ( (Right / Closing Parenthesis) ) (Right / Closing Parenthesis) * (Asterisk) + (Plus) , (Comma) - (Minus / Dash) . (Dot) /(Forward Slash) : (Colon) ;...
  • Page 24 Wireless 2D Barcode Scanner User Manual ASCII Char [ (Left / Opening Bracket) \ (Back Slash) ] (Right / Closing Bracket) ^ (Caret / Circumflex) _ (Underscore) ' (Grave Accent)
  • Page 25 Wireless 2D Barcode Scanner User Manual ASCII Char { (Left/ Opening Brace) | (Vertical Bar) } (Right/Closing Brace) ~ (Tilde) DEL (Delete)

  • Page 26: Additional Information

    ITALIANO: Per informazioni sulla garanzia, accedere a manhattan-products.com/t/warranty. EN MÉXICO: Póliza de Garantía Manhattan — Datos del importador y responsable ante el consumidor IC Intracom México, S.A.P.I. de C.V. • Av. Interceptor Poniente # 73, Col. Parque Industrial La Joya, Cuautitlán Izcalli, Estado de México, C.P. 54730, México. • Tel. (55)1500-4500 • La presente garantía cubre los siguientes productos contra cualquier defecto de fabricación en sus materiales y mano de obra.
  • Page 27 Wireless 2D Barcode Scanner User Manual 2. El comercializador no tiene talleres de servicio, debido a que los productos que se garantizan no cuentan con reparaciones, ni refacciones, ya que su garantía es de cambio físico. 3. La garantía cubre exclusivamente aquellas partes, equipos o sub-ensambles que hayan sido instaladas de fábrica y no incluye en ningún caso el equipo adicional o cualesquiera que hayan sido adicionados al mismo por el usuario o distribuidor.
  • Page 28 All trademarks and trade names are the property of their respective owners. © IC Intracom. All rights reserved. Manhattan is a trademark of IC Intracom, registered in the U.S. and other countries.
