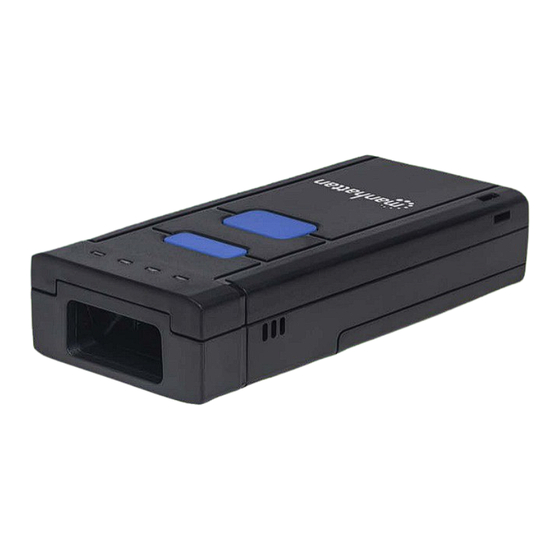

Manhattan 178914 User Manual

1d mini barcode scanner
Hide thumbs
Table of Contents

Advertisement

Quick Links

1D Mini Barcode Scanner
User Manual
Model 178914
manhattanproducts.com
MH-178914_UM-0118_REV-5.02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 178914 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Manhattan 178914

Summary of Contents for Manhattan 178914

  • Page 1 1D Mini Barcode Scanner User Manual Model 178914 manhattanproducts.com MH-178914_UM-0118_REV-5.02...

  • Page 2: Before You Begin

    Do not disassemble the device or remove the seal label from the device. Doing so will void the Manhattan product warranty. All pictures in this manual are for reference only. The actual product may differ. Manhattan reserves the right to make changes to any software or hardware to improve reliability, function, or design at any time without notice.

  • Page 3: Table Of Contents

    1D Mini Barcode Scanner—178914 User Manual TABLE OF CONTENTS CHAPTER 1: GETTING STARTED ......................... 5 ................................. 5 NTRODUCTION ..................................5 EATURES ......................... 5 ARCODE VERVIEW AND CANNING ROCEDURE CHAPTER 2: SCANNER PARAMETERS ......................... 6 ..............................6 HYSICAL ARAMETERS .............................. 6...
  • Page 4 1D Mini Barcode Scanner—178914 User Manual 5 ................................24 ATRIX MSI ....................................24 ..................................24 LESSEY ..............................25 ETTING APPENDICES ..............................26 A: C ..............................26 PPENDIX B: ASCII T ..............................27 PPENDIX ABLE C: F ............................ 33 PPENDIX UNCTION ABLE ADDITIONAL INFORMATION ..........................

  • Page 5: Chapter 1: Getting Started

    Chapter 1: Getting Started Introduction The Manhattan 1D Mini Barcode Scanner offers a new, compact design that is useful for stocktaking, warehouse and logistics applications. Linear imaging CCD allows the scanning module to deliver excellent decoding performance in its reading of most 1D barcodes.

  • Page 6: Chapter 2: Scanner Parameters

    1D Mini Barcode Scanner—178914 User Manual Chapter 2: Scanner Parameters Physical Parameters Parameter Value Device weight < 75 g / 2.6 oz. (without cable) Device size 99 (L) x 46 (W) x 21 (H) mm / 3.9 (L) x 1.8 (W) x 0.8 (H) in.

  • Page 7: Depth Of Field

    1D Mini Barcode Scanner—178914 User Manual Depth of Field Code Code Dimension Nearest Farthest Code 39 0.1 mm (0.004 in.) 80 mm (3.2 in.) 130 mm (5.1 in.) Code 39 0.15 mm (0.006 in.) 60 mm (2.4 in.) 180 mm (7.1 in.) Code 39 .25 mm (0.01 in.)

  • Page 8: Chapter 3: Wireless Settings

    Chapter 3: Wireless Settings Bluetooth Barcode Scanner Pairing The Manhattan Wireless 1D Mini Barcode Scanner can be connected to PCs, mobile phones and other devices according to the user's needs. Scan the programming barcodes to configure the scanner. EZ Pair...

  • Page 9: Functional Modes

    1D Mini Barcode Scanner—178914 User Manual Functional Modes Normal Mode This function transmits barcode data to the computer/device in real time. %%ALLPT-SET Normal Mode Offline Mode This function uploads data normally if the user is in range of computer/device and stores data when out of range, uploading it once it is back in range.

  • Page 10: Power Off

    1D Mini Barcode Scanner—178914 User Manual Power Off This function turns off the scanner immediately. %%POWEROFF Power Off...

  • Page 11: Chapter 4: System Settings

    1D Mini Barcode Scanner—178914 User Manual Chapter 4: System Settings Buzzer Setting Sound On and Off These settings turn the buzzer on or off (Default: buzzer sounds after a successful scan). 014200 014201 Buzzer Off Buzzer On (Default)* Trigger Timeout These settings fix the time the scanner will time out after the last scan.

  • Page 12: Scanning Mode

    1D Mini Barcode Scanner—178914 User Manual ALLTIM03 ALLTIM04 2mins 5mins ALLTIM05 ALLTIM06 10mins 20mins Scanning Mode Trigger Mode (Default) This sets the scanner to read a barcode once the trigger has been pulled. 013300 Trigger Mode Continuous Mode: This sets the scanner to keep its red light on to read codes that pass in front.

  • Page 13: Check The Version

    1D Mini Barcode Scanner—178914 User Manual Check the Version 000A0 Check the Version...

  • Page 14: Chapter 5: Customized Data Inclusion

    1D Mini Barcode Scanner—178914 User Manual Chapter 5: Customized Data Inclusion Introduction For some applications, users may wish to include additional information/functionality such as barcode type, data acquisition time or a delimiter to the barcode data. The functions here can attach customized prefix and suffix information to the barcode's scanned data or move the cursor to a new field or line without changing the barcode data itself.

  • Page 15: Convert Case

    1D Mini Barcode Scanner—178914 User Manual Convert Case Converts the case of the letters in the barcode to upper or lower case. For example, when the "Convert All to Lower Case" feature is enabled, barcode data "ABC123" is transmitted as "abc123".

  • Page 16: Invisible Characters Setting

    1D Mini Barcode Scanner—178914 User Manual To Exit Setting a Prefix and/or Suffix 02242 End Prefix & Suffix Addition Invisible Characters Setting The Invisible Characters setting allows users to hide specific characters of a barcode they have scanned. If the first two characters (prefix) of the code “123456” are set to invisible, “3456” will be received on the host device.
  • Page 17 1D Mini Barcode Scanner—178914 User Manual 023303 023305 Invisible Suffix 3 Character Invisible Suffix 5 Character Clear Invisible Suffix Character 023300 Clear Invisible Suffix Character Middle Digits Invisible Scan the programming codes below to hide middle digits of a barcode. First, Scan <From the Nth digits>...
  • Page 18 1D Mini Barcode Scanner—178914 User Manual Hide Number of Digits 023901 023902 Invisible 1 digit Invisible 2 digits 023903 023904 Invisible 3 digits Invisible 4 digits 023905 023906 Invisible 5 digits Invisible 6 digits 023907 023908 Invisible 7 digits Invisible 8 digits...

  • Page 19: Chapter 6: Symbologies

    Chapter 6: Symbologies Introduction Every symbology (barcode system) has its own attributes. The programming barcodes that follow will configure the scanner so it can read them. Manhattan recommends disabling those that are rarely used to increase the efficiency of the scanner. EAN-8...

  • Page 20: Codabar

    1D Mini Barcode Scanner—178914 User Manual EAN-13 Transfer to ISBN The International Standard Book Number (ISBN) is a unique numeric commercial book identifier. The ISBN is 13 digits long. Scan the “Enable EAN-13 Transfer to ISBN” programming code. The output code will be 10 digits long ISBN code.

  • Page 21: Code 39

    1D Mini Barcode Scanner—178914 User Manual Code 39 Enable/Disable Code 39 00221 00220 Enable Code 39* Disable Code 39 Start/Stop Characters This code structure can transmit a starting or ending character with the barcode data. 00281 00280 Enable Code39 Start/Stop Characters...

  • Page 22: Gs1 Databar Limited (Rss Limited)

    1D Mini Barcode Scanner—178914 User Manual GS1 DataBar Limited (RSS Limited) Enable/Disable RSS Limited 01771 01770 Enable RSS Limited Disable RSS Limited* GS1 DataBar Omnidirectional (RSS Omnidirectional) Enable/Disable RSS Omnidirectional 01671 01670 Enable RSS Omnidirectional Disable RSS Omnidirectional* UPC-A Enable/Disable UPC-A...

  • Page 23: Upc-E

    1D Mini Barcode Scanner—178914 User Manual UPC-E Enable/Disable UPC-E 00351 00340 Enable UPC-E* Disable UPC-E UPC-E transfer to UPC-A 00381 00380 Enable UPC-E Transfer to UPC-A Disable UPC-E Transfer to UPC-A* Interleaved 2 of 5 Enable/Disable Interleaved 2 of 5...

  • Page 24: Matrix 2 Of 5

    1D Mini Barcode Scanner—178914 User Manual Matrix 2 of 5 Enable/Disable Matrix 2 of 5 01461 01460 Enable Matrix 2 of 5* Disable Matrix 2 of 5 Enable/Disable MSI 01151 01150 Enable MSI Disable MSI* Plessey Enable/Disable Plessey 01161 01160...

  • Page 25: Add-On Code Setting

    1D Mini Barcode Scanner—178914 User Manual Add-On Code Setting Some barcodes can be augmented with a two- or five-digit add-on code. In the examples below, the part enclosed within the blue line is the standard barcode, while the part enclosed within the red line is the add-on code.

  • Page 26: Appendices

    1D Mini Barcode Scanner—178914 User Manual Appendices Appendix A: Code IDs Code ID Type of Code(For Prefix &Suffix) Symbology All Symbologies CODE 128 EAN 8 EAN 13 UPC-A UPC-E CODE 93 GS1 Omnidirectional GS1 Limited CODE 39 Interleaved 2 of 5...

  • Page 27: Appendix B: Ascii Table

    1D Mini Barcode Scanner—178914 User Manual Appendix B: ASCII Table 1001 1002 1003 SOH（01） STX（02） ETX（03） 1004 1005 1006 EOT（04） ENQ（05） ACK（06） 1007 1008 1009 HT （09） BEL（07） Backspace（08） 1010 1011 1012 LF（0A） VT（0B） FF（0C） 1013 1014 1015 CR（0D） SO（0E）...
  • Page 28 1D Mini Barcode Scanner—178914 User Manual 1025 1026 1027 EM（19） SUB（1A） ESC（1B） 1028 1029 1030 FS（1C） GS（1D） RS（1E） 1031 1032 1033 US（1F） Space（20） !（21） 1034 1035 1036 “（22） #（23） $（24） 1037 1038 1039 %（25） &（26） ‘（27） 1040 1041 1042 (（28）...
  • Page 29 1D Mini Barcode Scanner—178914 User Manual 1049 1050 1051 1（31） 2（32） 3（33） 1052 1053 1054 4（34） 5（35） 6（36） 1055 1056 1057 7（37） 8（38） 9（39） 1058 1059 1060 :（3A） ;（3B） <（3C） 1061 1062 1063 =（3D） >（3E） ?（3F） 1064 1065 1066 @（40）...
  • Page 30 1D Mini Barcode Scanner—178914 User Manual 1073 1074 1075 I（49） J（4A） K（4B） 1076 1077 1078 L（4C） M（4D） N（4E） 1079 1080 1081 O（4F） P（50） Q（51） 1082 1083 1084 R（52） S（53） T（54） 1085 1086 1087 U（55） V（56） W（57） 1088 1089 1090 X（58）...
  • Page 31 1D Mini Barcode Scanner—178914 User Manual 1097 1098 1099 a（61） b（62） c（63） 1100 1101 1102 d（64） e（65） f（66） 1103 1104 1105 g（67） h（68） i（69） 1106 1108 j（6A） k（6B） l（6C） 1109 1110 1111 m（6D） n（6E） o（6F） 1112 1113 1114 p（70） q（71）...
  • Page 32 1D Mini Barcode Scanner—178914 User Manual 1121 1122 1123 y（79） z（7A） {（7B） 1124 1125 1126 |（7C） }（7D） ~（7E） 1127 Delete（7F）...

  • Page 33: Appendix C: Function Key Table

    1D Mini Barcode Scanner—178914 User Manual Appendix C: Function Key Table 1128 1129 1130 F1（80） F2（81） F3（82） 1131 1132 1133 F4（83） F5（84） F6（85） 1134 1135 1136 F7（86） F8（87） F9（88） 1137 1138 1139 F10（89） F11（8A） F12（8B） 1140 1141 1142 Insert（8C） Home（8D）...

  • Page 34: Additional Information

    ITALIANO: Per informazioni sulla garanzia, accedere a manhattan-products.com/t/warranty. EN MÉXICO: Póliza de Garantía Manhattan — Datos del importador y responsable ante el consumidor IC Intracom México, S.A.P.I. de C.V. • Av. Interceptor Poniente # 73, Col. Parque Industrial La Joya, Cuautitlán Izcalli, Estado de México, C.P.
  • Page 35 1D Mini Barcode Scanner—178914 User Manual refacciones, ya que su garantía es de cambio físico. 3. La garantía cubre exclusivamente aquellas partes, equipos o sub-ensambles que hayan sido instaladas de fábrica y no incluye en ningún caso el equipo adicional o cualesquiera que hayan sido adicionados al mismo por el usuario o distribuidor.
  • Page 36 All trademarks and trade names are the property of their respective owners. © IC Intracom. All rights reserved. Manhattan is a trademark of IC Intracom, registered in the U.S. and other countries.
