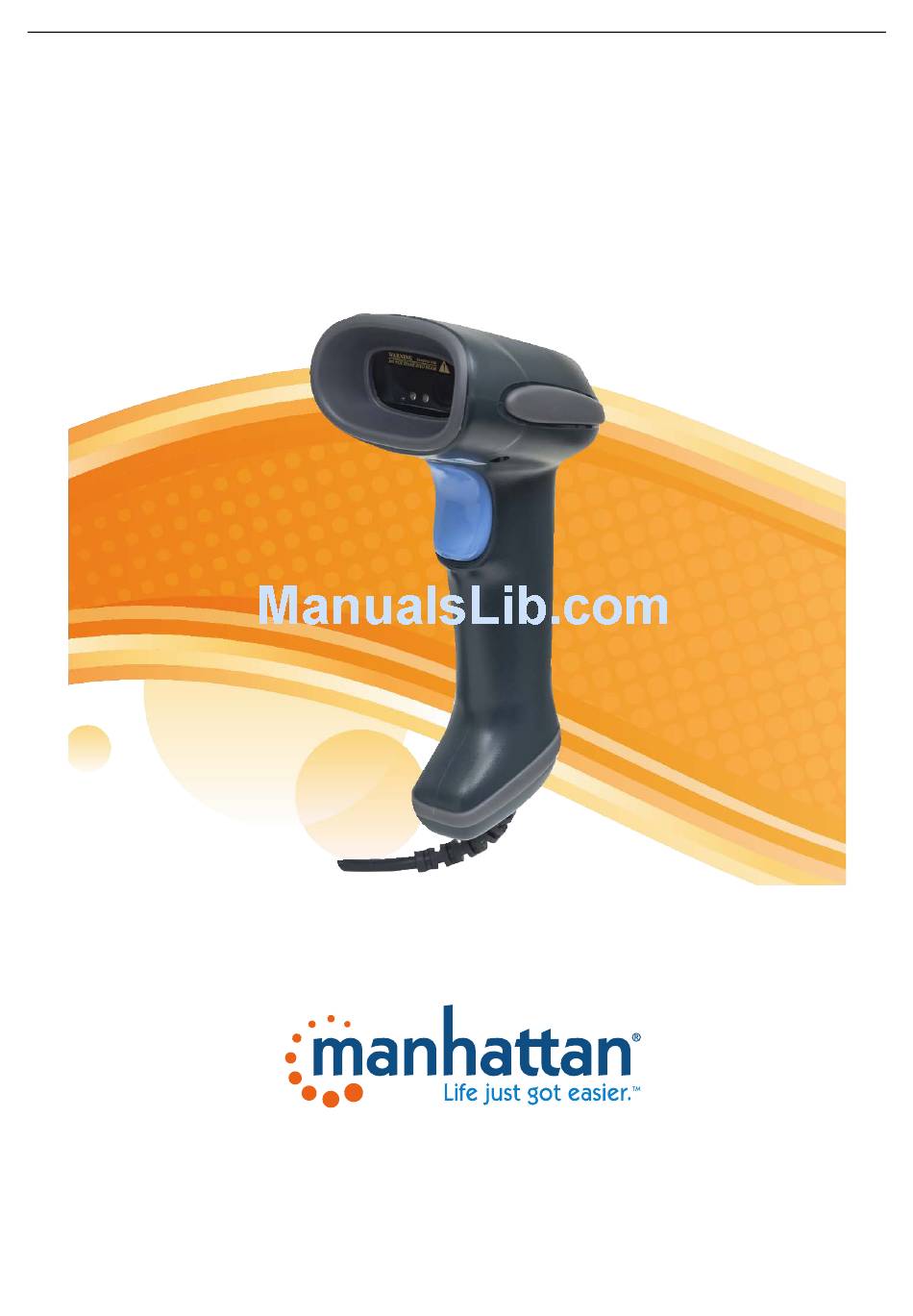

2D Barcode Scanner
User Manual
Model 178853
manhattanproducts.com
MH-178853_UM-0118_REV-5.02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 178853 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Manhattan 178853

  • Page 1 2D Barcode Scanner User Manual Model 178853 manhattanproducts.com MH-178853_UM-0118_REV-5.02...
  • Page 2: Before You Begin

    Read through this manual carefully before using the product and operate it according to the manual. Keep it in an easily accessible location for future reference. Do not disassemble the device or remove the seal label from the device. Doing so will void the Manhattan product warranty.
  • Page 3: Table Of Contents

    2D Barcode Scanner—178853 User Manual TABLE OF CONTENTS CHAPTER 1: GETTING STARTED ..........................5 ................................. 5 NTRODUCTION ..................................5 EATURES .................................. 5 PPLICATIONS ................................6 NTERFACE USB interface ................................6 RS232 Interface ................................ 6 CHAPTER 2: SCANNER PARAMETERS ........................7 ..............................
  • Page 4 2D Barcode Scanner—178853 User Manual General Setting for all 2D Barcodes ........................16 Normal & Inverse Video Reading ........................... 16 Code 128 ................................. 17 UCC/EAN-128 (GS1-128) ............................17 AIM 128 .................................. 17 EAN-8 ..................................18 EAN-13 ..................................19 ISSN ..................................20 ISBN ..................................
  • Page 5: Chapter 1: Getting Started

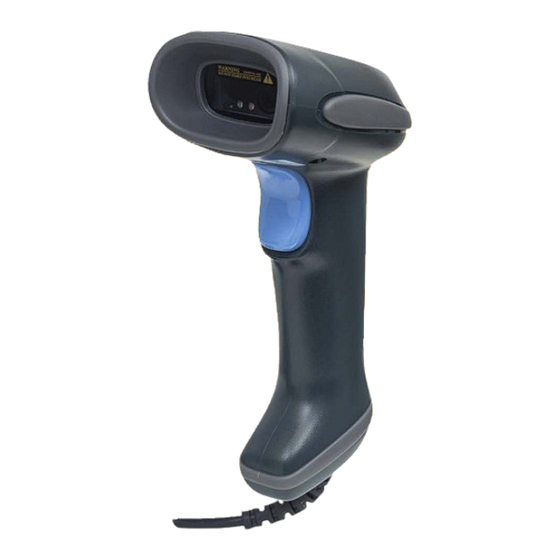

    User Manual Chapter 1: Getting Started Introduction The Manhattan 2D Barcode Scanner (178853) offers outstanding performance, versatility and durability. ABS material, industrial-grade waterproofing and a dustproof design allow it to be used in severe work environments. Using the scanner is highly intuitive, and it easily reads 1D and 2D barcodes in limited-light environments.
  • Page 6: Data Interface

    2D Barcode Scanner—178853 User Manual Data Interface The Manhattan 2D Barcode Scanner must be connected to a PC, POS, Android host, etc. USB interface RS232 Interface...
  • Page 7: Chapter 2: Scanner Parameters

    2D Barcode Scanner—178853 User Manual Chapter 2: Scanner Parameters Physical Parameters Parameter Value Device weight < 175 g / 0.39 lbs. (without cable) Device size 180 (L) x 75 (W) x 100 (H) mm / 7.09 (L) x 3.94 (W) x 2.95 (H) in.
  • Page 8: Depth Of Field

    2D Barcode Scanner—178853 User Manual Depth of Field Code Code Dimension Nearest Farthest Code 39 0.127 mm (5 mil) 40 mm 90 mm Code 39 0.5 mm (20 mil) 60 mm 330 mm Code 39 1.0 mm (40 mil) 16 mm...
  • Page 9: Chapter 3: System Settings

    2D Barcode Scanner—178853 User Manual Chapter 3: System Settings Introduction Scan the programming barcodes to configure the scanner. Manual Introduction Manual scanning mode: 1. Press and hold the trigger button; the red light activates. 2. Position the center of the codes under the light, and move the scanner between the codes to find the best scanning distance.
  • Page 10: Scanning Mode

    2D Barcode Scanner—178853 User Manual Scanning Mode Trigger mode (Default setting) Pulling the trigger begins the decode (reading) function. The decode function continues until the barcode is decoded, the trigger is released or the decode session expires. Trigger Mode* Continuous Mode The red light of the scanner remains on, allowing it to automatically read barcodes.
  • Page 11: Illumination Led

    2D Barcode Scanner—178853 User Manual Illumination LED Setting for Trigger Mode: set the scanner to the modes below. Normal Illumination* No Illumination Illumination Always On Aiming LED The aiming LED helps users find the best decoding distance for their needs.
  • Page 12: Time Of Buzzer

    2D Barcode Scanner—178853 User Manual Time of Buzzer 40 ms **80 ms 120 ms Convert Letter Case This option converts the letter information in a barcode to upper or lower case. For example, when the Convert All to Lower Case feature is enabled, barcode data “ABC123” is transmitted as “abc123”.
  • Page 13: Chapter 4: Communication Settings

    2D Barcode Scanner—178853 User Manual Chapter 4: Communication Settings Introduction The scanner provides a USB interface, USB-COM interface and RS232 interface to communicate with the host device. USB Communication Mode USB HID-KBW (Default) Scan the USB HID-KBW programming code to set scanner to USB output mode. There is no need to install any drivers—just plug and play.
  • Page 14: Baud Rate

    2D Barcode Scanner—178853 User Manual Baud Rate Baud rate is the number of bits of data transmitted per second. Set the baud rate to match the host's requirements. **9600 1200 19200 2400 38400 4800 57600 14400 115200...
  • Page 15: Chapter 5: Custom Commands

    2D Barcode Scanner—178853 User Manual Chapter 5: Custom Commands Introduction After a successful barcode read, a string of numbers, letters or symbols populates on the host device. For some applications, you may wish to include additional information such as barcode type or you may wish to have the cursor automatically transition to the next available field.
  • Page 16: Chapter 6: Symbologies

    Introduction Every symbology (barcode system) has its own attributes. The programming barcodes that follow will configure the scanner so it can read them. Manhattan recommends disabling those that are rarely used to increase the efficiency of the scanner. General Setting Note: If the “Disable All Symbologies”...
  • Page 17: Code 128

    2D Barcode Scanner—178853 User Manual By default, the scanner reads normal video barcodes. Scanning the “Enable Inverse Video” programming code allows the scanner to read both normal video and inverse video codes. To read only normal video barcodes, scan the “Disable Inverse Video” code.
  • Page 18: Ean-8

    2D Barcode Scanner—178853 User Manual Enable/Disable AIM 128 ** Enable AIM 128 Disable AIM 128 EAN-8 EAN-8 is eight bytes in length. Restore Factory Defaults Restore EAN-8 Factory Defaults Enable/Disable EAN-8 Enable EAN-8 Disable EAN-8 Transmit Check Digit The last byte is its check byte, which is used to verify the integrity of the data.
  • Page 19: Ean-13

    2D Barcode Scanner—178853 User Manual Enable 5-Digit Add-On Code Disable 5-Digit Add-On Code EAN-13 An EAN-13 barcode is 13 digits in length. Restore Factory Defaults Restore EAN-13 Factory Defaults Enable/ Disable EAN-13 ** Enable EAN-13 Disable EAN-13 Transmit Check Digit The last digit of the EAN-13 barcode can include a check digit, which verifies the integrity of the data.
  • Page 20: Issn

    2D Barcode Scanner—178853 User Manual Add-On Codes An Add-On Code adds on a two-digit or five-digit code to the barcode. In the examples below, the part surrounded by the blue dotted line is an EAN-13 barcode; the part circled by the red dotted line is the add-on code.
  • Page 21: Enable/ Disable Isbn

    2D Barcode Scanner—178853 User Manual Enable/ Disable ISBN Enable ISBN Disable ISBN ISBN Format **13 Digits 10 Digits UPC-E A UPC-E barcode is 8 digits in length. Restore Factory Defaults Restore Factory Defaults of UPC-E Enable/ Disable UPC-E ** Enable UPC-E...
  • Page 22: Upc-A

    2D Barcode Scanner—178853 User Manual Add-On Code An Add-On Code adds on a two-digit or five-digit code to the barcode. In the examples below, the part surrounded by the blue dotted line is a UPC-E barcode; the part circled by the red dotted line is the add-on code.
  • Page 23: Interleaved 2 Of 5

    2D Barcode Scanner—178853 User Manual Transmit UPC-A Check Digit Don’t Transmit UPC-A Check Digit Add-On Code An Add-On Code adds on a two-digit or five-digit code to the barcode. In the examples below, the part surrounded by the blue dotted line is a UPC-E barcode; the part circled by the red dotted line is the add-on code.
  • Page 24: Itf-6

    2D Barcode Scanner—178853 User Manual ITF-6 Restore Factory Defaults of ITF-6 **Disable ITF-6 ITF-14 Restore Factory Defaults of ITF-14 Disable ITF-14 Matrix 2 of 5 Restore Factory Defaults Restore Factory Defaults of Matrix 2 of 5 Enable/ Disable Matrix 2 of 5...
  • Page 25: Standard 25

    2D Barcode Scanner—178853 User Manual Enable/ Disable Industrial 25 Enable Industrial 25 Disable Industrial 25 Standard 25 Restore Factory Defaults Restore Factory Defaults of Standard 25 Enable/ Disable Standard 25 Enable Standard 25 Disable Standard 25 Code 39 Restore Factory Defaults...
  • Page 26: Code 93

    2D Barcode Scanner—178853 User Manual Enable/ Disable Codabar ** Enable Codabar Disable Codabar Code 93 Restore Factory Defaults Restore Factory Defaults of Code 93 Enable/ Disable Code 93 ** Enable Code 93 Disable Code 93 Code 11 Restore Factory Defaults...
  • Page 27: Msi-Plessey

    2D Barcode Scanner—178853 User Manual Enable/ Disable Plessey ** Enable Plessey Disable Plessey MSI-Plessey Restore Factory Defaults Restore Factory Defaults of MSI-Plessey Enable/ Disable MSI-Plessey ** Enable MSI-Plessey Disable MSI-Plessey RSS-14 Restore Factory Defaults Restore Factory Defaults of RSS-14 Enable/ Disable RSS-14...
  • Page 28: Rss-Expand

    2D Barcode Scanner—178853 User Manual Enable/ Disable RSS-Limited ** Enable RSS-Limited Disable RSS-Limited RSS-Expand Restore Factory Defaults Restore Factory Defaults of RSS-Expand Enable/ Disable RSS-Expand **Enable RSS-Expand Disable RSS-Expand PDF417 Restore Factory Defaults Restore Factory Defaults of PDF417 Enable/ Disable PDF417...
  • Page 29: Data Matrix

    2D Barcode Scanner—178853 User Manual Data Matrix Restore Factory Defaults Restore Factory Defaults of Data Matrix Enable/ Disable Data Matrix **Enable Data Matrix Disable Data Matrix QR Code Restore Factory Defaults Restore Factory Defaults of QR Code Enable/ Disable QR Code...
  • Page 30: Appendix

    2D Barcode Scanner—178853 User Manual Appendix Code ID Code Type Code ID(original) Code ID(Visible) Code 128 FNC3 A(0x41) Code 128 B(0x42) UCC/EAN 128 C(0x43) EAN-8 D(0x44) EAN-13 E(0x45) UPC-E F(0x46) UPC-A G(0x47) Interleaved 2 of 5 H(0x48) ITF-14 I(0x49) ITF-6...
  • Page 31: Additional Information

    ITALIANO: Per informazioni sulla garanzia, accedere a manhattan-products.com/t/warranty. EN MÉXICO: Póliza de Garantía Manhattan — Datos del importador y responsable ante el consumidor IC Intracom México, S.A.P.I. de C.V. • Av. Interceptor Poniente # 73, Col. Parque Industrial La Joya, Cuautitlán Izcalli, Estado de México, C.P. 54730, México. • Tel. (55)1500-4500 La presente garantía cubre los siguientes productos contra cualquier defecto de fabricación en sus materiales y mano de obra.
  • Page 32 2D Barcode Scanner—178853 User Manual 2. El comercializador no tiene talleres de servicio, debido a que los productos que se garantizan no cuentan con reparaciones, ni refacciones, ya que su garantía es de cambio físico. 3. La garantía cubre exclusivamente aquellas partes, equipos o sub-ensambles que hayan sido instaladas de fábrica y no incluye en ningún caso el equipo adicional o cualesquiera que hayan sido adicionados al mismo por el usuario o distribuidor.
  • Page 33 All trademarks and trade names are the property of their respective owners. © IC Intracom. All rights reserved. Manhattan is a trademark of IC Intracom, registered in the U.S. and other countries.
