- Page 1 2D Mini Barcode Scanner User Manual Model 178921 manhattanproducts.com MH-178921_UM-1117_REV-5.01...
- Page 2 Do not disassemble the device or remove the seal label from the device. Doing so will void the Manhattan product warranty. All pictures in this manual are for reference only. The actual product may differ. Manhattan reserves the right to make changes to any software or hardware to improve reliability, function, or design at any time without notice.
-
Page 3: Table Of Contents
2D Mini Barcode Scanner—178921 User Manual TABLE OF CONTENTS CHAPTER 1: GETTING STARTED ......................... 5 ................................5 NTRODUCTION ..................................5 EATURES ........................ 5 ARCODE VERVIEW AND CANNING ROCEDURE CHAPTER 2: SCANNER PARAMETERS ......................... 6 ..............................6 HYSICAL ARAMETERS ............................. 6... - Page 4 2D Mini Barcode Scanner—178921 User Manual MSI ....................................26 ..................................26 ELEPEN ..............................27 HINA OSTAL ..................................27 QR C ................................28 ATRIX PDF 417 ..................................28 PDF 417 ................................28 ICRO ..................................29 AXI CODE ................................... 29 ZTEC ..................................30 ANXIN APPENDICES ..............................
-
Page 5: Chapter 1: Getting Started

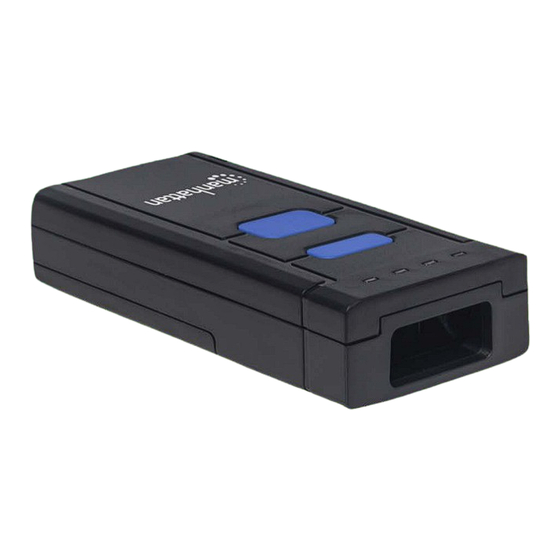

Chapter 1: Getting Started Introduction The Manhattan 2D Mini Barcode Scanner offers a new, compact design that is useful for stocktaking, warehouse and logistics applications. Its 2D linear imager allows the scanning module to deliver excellent decoding performance in reading most 1D and 2D barcodes. -
Page 6: Chapter 2: Scanner Parameters
2D Mini Barcode Scanner—178921 User Manual Chapter 2: Scanner Parameters Physical Parameters Physical Parameter Value Weight (USB) < 70 g / 2.5 oz. (without cable) Device Dimension 99 (L) x 46 (W) x 21 (H) / 3.9 (L) x 1.8 (W) x 0.8 (H) in. -
Page 7: Depth Of Field
2D Mini Barcode Scanner—178921 User Manual Depth of field Range of decoding Code Code Dimension Nearest Farthest Code 39 0.127 mm (0.01 in.) 50 mm (2 in.) 90 mm (3.5 in.) Code 39 0.5 mm (0.2 in.) 40 mm (1.6 in.) 200 mm (7.9 in.) -
Page 8: Chapter 3: Wireless Settings
Chapter 3: Wireless Settings Bluetooth Barcode Scanner Pairing The Manhattan Wireless 2D Mini Barcode Scanner can be connected to PCs, mobile phones and other devices according to the user's needs. Scan the programming barcodes to configure the scanner. EZ Pair... - Page 9 2D Mini Barcode Scanner—178921 User Manual Offline Mode This function uploads data normally if the user is in range of computer/device; stores data if out of range for upload once back in range. %%ALLAEM-SET Offline Mode Inventory Mode This function retains all scanned barcode data for later upload to a host computer/device.
-
Page 10: Chapter 4: System Settings
2D Mini Barcode Scanner—178921 User Manual Chapter 4: System Settings Buzzer Setting Sound On and Off Buzzer on* Buzzer off Buzzer Tone Middle High* Number of Buzzers Once Twice Four Times Three Times Five Times Six Times... -
Page 11: Stand-By Time
2D Mini Barcode Scanner—178921 User Manual Stand-by Time The default standby time for this wireless scanner is 20 seconds. Use the programming codes below to set a different standby time. Begin by scanning the "Start Setting" code. Then, scan the corresponding time programming code. -
Page 12: Return To Factory Default
2D Mini Barcode Scanner—178921 User Manual Return to Factory Default This option returns the scanner to factory default; used for when the scanner fails to read barcodes, a different application or configuration is necessary, or to clear out temporary functions... -
Page 13: Country/Language Keyboard
2D Mini Barcode Scanner—178921 User Manual Country/language Keyboard Keyboard layouts vary from country to country. All supported keyboard types are listed below. 1-U.S.* 2-U.K. 3-Denmark 4 - France 5-Finland 6-Turkey-F 7-Italy 8-Norway 9-Albania 10-Belgium 11-Bosnia 12-Brazil 13-Croatia 14-Czech 15-Dutch 16-Estonia... -
Page 14: Check The Version
2D Mini Barcode Scanner—178921 User Manual 17-Germany / Austria 18-Greek 19-Hungary 20-Irish 21-Latvia 22-Lithunnia 23-Macedonia 24-Spain 25-Poland 26-Portugal 27-Romania 28-Russia 29-Japan Check the Version Check the version... -
Page 15: Chapter 5: Customized Data Inclusion
2D Mini Barcode Scanner—178921 User Manual Chapter 5: Customized Data Inclusion Introduction For some applications, users may wish to include additional information/functionality such as barcode type, data acquisition time or a delimiter to the barcode data. The functions here can attach customized prefix and suffix information to the barcode's scanned data or move the cursor to a new field or line without changing the barcode data itself. - Page 16 2D Mini Barcode Scanner—178921 User Manual Set Custom Prefix Save Don’t Save Set Custom Suffix To set a custom suffix, refer to Appendix B and determine the hexadecimal values that will create it. Then, scan “Set Custom Suffix.” Next, scan Byte Bit "9" (Appendix A) twice before scanning the corresponding Byte Bits that represents the hexadecimal values of a desired suffix.
-
Page 17: Chapter 6: Symbologies
Introduction Every symbology (barcode system) has its own attributes. The programming barcodes that follow will configure the scanner so it can read them. Manhattan recommends disabling those that are rarely used to increase the efficiency of the scanner. Note on Add-on Codes: many barcodes are augmented with a two- or five-digit add-on code, which forms a new code. -
Page 18: Ean-8
2D Mini Barcode Scanner—178921 User Manual Enable/Disable EAN 8 Enable EAN-8* Disable EAN-8 Transmit Check Digit EAN-8 is eight digits in length with the last one as its check digit, which verifies data. The default mode transmits the EAN-8 check digit. -
Page 19: Ean-13
2D Mini Barcode Scanner—178921 User Manual EAN-13 Restore Factory Defaults Restore the Factory Defaults of EAN-13 Enable/Disable EAN 13 Enable EAN-13* Disable EAN-13 Transmit Check Digit EAN-13 is 13 digits in length with the last one as its check digit, which verifies data integrity. The default mode transmits EAN-13 Check Digit. -
Page 20: Codabar
2D Mini Barcode Scanner—178921 User Manual Enable EAN13 Addenda Separator* Disable EAN13 Addenda Separator Codabar Restore Factory Defaults Restore the Factory Defaults of Codabar Enable/Disable Codabar Enable Codabar* Disable Codabar Start/Stop Characters Don’t Transmit Codabar Start/Stop Transmit Codabar Start/Stop Character... -
Page 21: Code 93
2D Mini Barcode Scanner—178921 User Manual Enable/Disable Code 39 Enable Code 39* Disable Code 39 Start/Stop Characters Enable Coda 39 Start/Stop Character Disable Coda 39 Start/Stop Character* Enable/Disable Code 39 Full ASCII This option configures the scanner to identify all ASCII characters. -
Page 22: Code 128
2D Mini Barcode Scanner—178921 User Manual Code 128 Restore Factory Defaults Restore the Factory Defaults of Code 128 Enable/Disable Code 128 Enable Code 128* Disable Code 128 GS1-128 Restore Factory Defaults Restore the Factory Defaults of GS1-128 Enable/Disable GS1-128 Enable GS1-128*... -
Page 23: Upc-E
2D Mini Barcode Scanner—178921 User Manual Enable/Disable UPC-A Enable Disable UPC-A* UPC-A Transmit Check Digit UPC-A is 12 digits in length with the last one as its check digit, which verifies the data's integrity. The default mode transmits the UPC-A check digit. - Page 24 2D Mini Barcode Scanner—178921 User Manual Restore the Factory Defaults of UPC-E Enable/Disable UPC-E Enable UPC-E0* Disable UPC-E0 Enable UPC-E1 Disable UPC-E1* Transmit Check Digit UPC-E0 is 12 digits in length with the last one as its check digit, which verifies the data's integrity.
-
Page 25: Interleaved 2 Of 5
2D Mini Barcode Scanner—178921 User Manual UPC-E0 Transfer to UPC-A This option transfers UPC-E to UPC-A. The default does not transfer this data. Enable UPC-E0 Transfer to UPC-A Disable UPC-E0 Transfer to UPC-A* Interleaved 2 of 5 Restore Factory Defaults... -
Page 26: Matrix 2 Of 5
2D Mini Barcode Scanner—178921 User Manual Matrix 2 of 5 Restore Factory Defaults Restore the Factory Defaults of Matrix 2 of 5 Enable/Disable Matrix 2 of 5 Enable Matrix 2 of 5 Disable Matrix 2 of 5* Restore Factory Defaults... -
Page 27: China Postal Code
2D Mini Barcode Scanner—178921 User Manual Enable/Disable Telepen Enable Telepen Disable Telepen* China Postal Code Restore Factory Defaults Restore the Factory Defaults of Telepen Enable/Disable China Postal Code Enable Telepen Disable Telepen* QR Code Restore Factory Defaults Restore the Factory Defaults of QR Code... -
Page 28: Data Matrix
2D Mini Barcode Scanner—178921 User Manual Data Matrix Restore Factory Defaults Restore the Factory Defaults of Data Matrix Enable/Disable Data Matrix Enable Data Matrix* Disable Data Matrix PDF 417 Restore Factory Defaults Restore the Factory Defaults of PDF 417 Enable/Disable PDF417... -
Page 29: Maxi Code
2D Mini Barcode Scanner—178921 User Manual Enable/Disable Micro PDF 417 Enable Micro PDF 417* Disable Micro PDF 417 Maxi code Restore Factory Defaults Restore the Factory Defaults of Maxicode Enable/Disable Maxi Code Enable Maxicode Disable Maxicode* Aztec Restore Factory Defaults... -
Page 30: Hanxin
2D Mini Barcode Scanner—178921 User Manual Hanxin Restore Factory Defaults Hanxin (Default) Enable/Disable Hanxin Enable Hanxin Disable Hanxin*... -
Page 31: Appendices
2D Mini Barcode Scanner—178921 User Manual Appendices Appendix A: Byte Bits... -
Page 32: Appendix B: Ascii Table
2D Mini Barcode Scanner—178921 User Manual Appendix B: ASCII Table Char (Null char.) (Start of Header) (Start of Text) (End of Text) (End of Transmission) (Enquiry) (Acknowledgment) (Bell) (Backspace) (Horizontal Tab) (Line Feed) (Vertical Tab) (Form Feed) (Carriage Return) (Shift Out) - Page 33 2D Mini Barcode Scanner—178921 User Manual Char (Escape) (File Separator) (Group Separator) RS (Request to Send) (Unit Separator) (Space) (Exclamation Mark) " (Double Quote) (Number Sign) (Dollar Sign) (Percent) & (Ampersand) (Single Quote) (Right / Closing Parenthesis) (Right / Closing Parenthesis)
- Page 34 2D Mini Barcode Scanner—178921 User Manual Char (Colon) (Semi-colon) < (Less Than) (Equal Sign) > (Greater Than) (Question Mark) (AT Symbol)
- Page 35 2D Mini Barcode Scanner—178921 User Manual Char (Left / Opening Bracket) (Back Slash) (Right / Closing Bracket) (Caret / Circumflex) (Underscore) (Grave Accent)
- Page 36 2D Mini Barcode Scanner—178921 User Manual Char (Left/ Opening Brace) (Vertical Bar) (Right/Closing Brace) (Tilde) (Delete)
-
Page 37: Additional Information
ITALIANO: Per informazioni sulla garanzia, accedere a manhattan-products.com/t/warranty. EN MÉXICO: Póliza de Garantía Manhattan — Datos del importador y responsable ante el consumidor IC Intracom México, S.A.P.I. de C.V. • Av. Interceptor Poniente # 73, Col. Parque Industrial La Joya, Cuautitlán Izcalli, Estado de México, C.P. - Page 38 2D Mini Barcode Scanner—178921 User Manual 2. El comercializador no tiene talleres de servicio, debido a que los productos que se garantizan no cuentan con reparaciones, ni refacciones, ya que su garantía es de cambio físico. 3. La garantía cubre exclusivamente aquellas partes, equipos o sub-ensambles que hayan sido instaladas de fábrica y no incluye en ningún caso el equipo adicional o cualesquiera que hayan sido adicionados al mismo por el usuario o distribuidor.
- Page 39 All trademarks and trade names are the property of their respective owners. © IC Intracom. All rights reserved. Manhattan is a trademark of IC Intracom, registered in the U.S. and other countries.
