Manhattan 154185 User Manual

Wireless 2d long range led barcode scanner
Hide thumbs Also See for 154185:
Table of Contents

Advertisement

Quick Links

Download this manual
Wireless 2D Long
Range LED Barcode
Scanner
User Manual
Model 154185
manhattanproducts.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 154185 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Manhattan 154185

Summary of Contents for Manhattan 154185

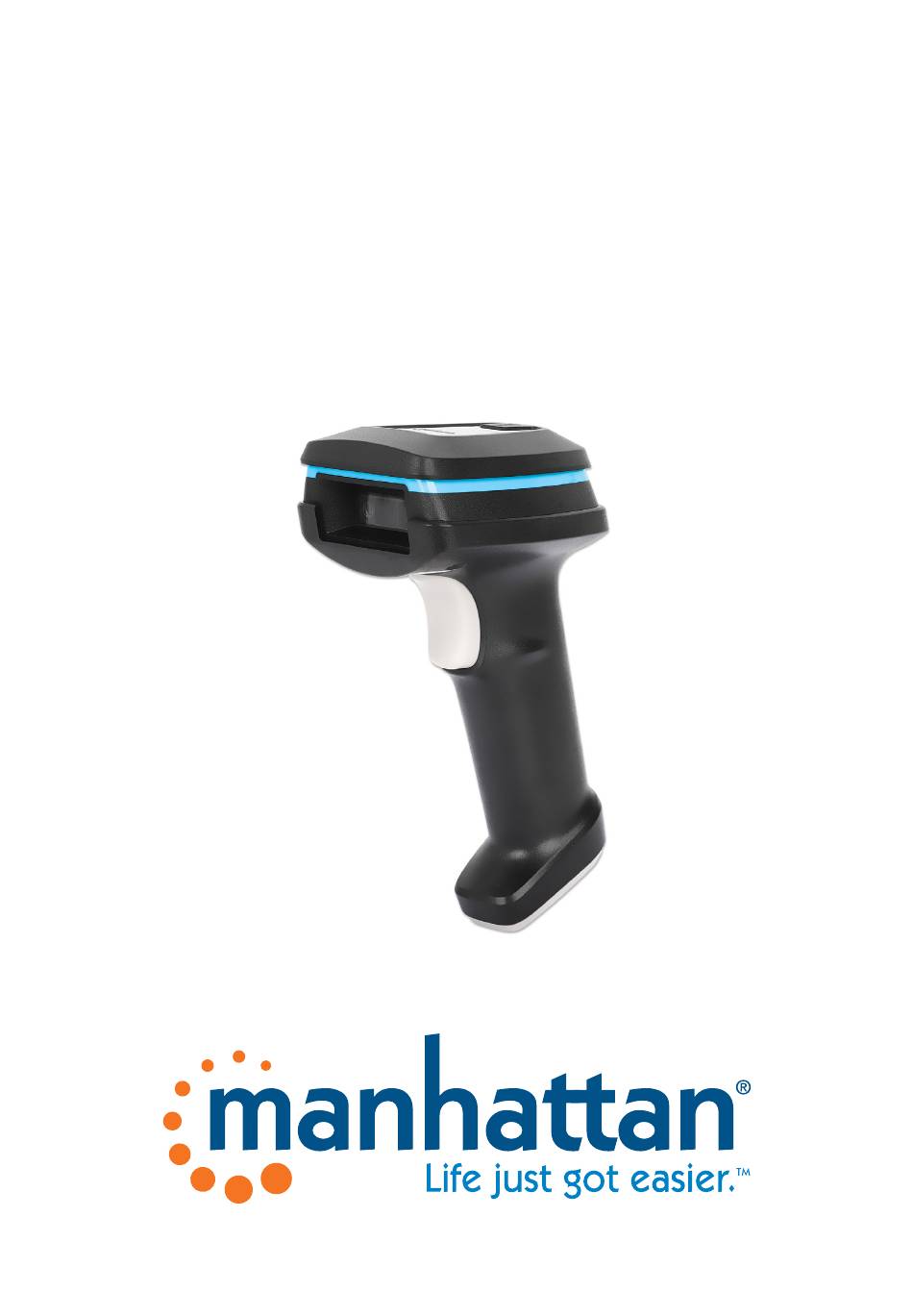

  • Page 1 Wireless 2D Long Range LED Barcode Scanner User Manual Model 154185 manhattanproducts.com...
  • Page 2 All trademarks and trade names are the property of their respective owners. © IC Intracom. All rights reserved. Manhattan is a trademark of IC Intracom, registered in the U.S. and other countries. This manual is copyrighted, with all right reserved. Under the copyright laws, this manual may not, in whole or in part, be copied, photocopied, reproduced, translated or converted to any electronic medium or machine readable form without prior written consent of maker.

  • Page 3: Table Of Contents

    User Manual Wireless 2D Long Range LED Barcode Scanner TABLE OF CONTENTS VERSION DISPLAY............................6 DEFAULT SETTINGS ............................6 KEYBOARD LANGUAGE COUNTRY SETTINGS .....................6 GENERAL SETTINGS ..........................6 KEYBOARD MODE ENCODING FORMAT SETTINGS ..................7 WORD OUTPUT JAPANESE (UTF-8) ......................7 SOUND RELATED SETTINGS (WIRELESS) ......................8 BUZZER SETTING (WIRELESS) ........................8 TRANSMISSION MODE ..........................8 SLEEP TIME SETTING ............................9...
  • Page 4 Wireless 2D Long Range LED Barcode Scanner User Manual CODE 93 LENGTH LIMIT ........................17 CODE 39 LENGTH LIMIT ........................17 INDUSTRIAL 25 LENGTH LIMIT ......................17 AIRLINE25(ITAT 25) LENGTH LIMIT ......................17 MSI LENGTH LIMIT ..........................18 RSS-EXPEND (GS1 DATABAR EXPANDED) LENGTH LIMIT ..............18 2D BARCODE LENGTH SETTING ......................18 ENABLE/DISABLE BARCODES ........................19 AIRLINE 2 OF 5 (STANDARD 2 OF 5/IATA 2 OF 5) ................19...
  • Page 5 User Manual Wireless 2D Long Range LED Barcode Scanner ISBN 13 CONVERSION SETTING ......................31 BARCODE SYMBOLOGY CONFIGURATION DEFAULT ................31 CODE ID SETTING .............................32 ANNEX: CODE ID TABLE.........................32 APPENDIX – CONTROL CHARACTER LIST ....................33 APPENDIX – ASCII CODE CHARACTER TABLE ...................34...

  • Page 6: Version Display

    Wireless 2D Long Range LED Barcode Scanner User Manual VERSION DISPLAY Display version information DEFAULT SETTINGS Restore default settings All the scanner’s wireless properties (page 5 – 15) will be return to the default state of the software with scanning the “Restore default settings” setup code. KEYBOARD LANGUAGE COUNTRY SETTINGS International Keyboard GENERAL SETTINGS...

  • Page 7: Keyboard Mode Encoding Format Settings

    User Manual Wireless 2D Long Range LED Barcode Scanner Czech Italian 142 Turkey Q Turkey F Sweden / Finland Mexican Spanish Danish Norwegian Croatian Swiss German Swiss-French Dutch Hungarian Polish Canadian French Argentina (Latin American) Slovak KEYBOARD MODE ENCODING FORMAT SETTINGS Txt Output Traditional Chinese Txt Output Japanese WORD OUTPUT JAPANESE (UTF-8)

  • Page 8: Sound Related Settings (Wireless)

    Wireless 2D Long Range LED Barcode Scanner User Manual SOUND RELATED SETTINGS (WIRELESS) Mute Medium Volume Low Volume * High Volume BUZZER SETTING (WIRELESS) * Buzzer Frequency 2K Buzzer Frequency 2.7K TRANSMISSION MODE * Enter Normal Mode Enter inventory mode Data upload Display total storage entries Clear inventory data...

  • Page 9: Sleep Time Setting

    User Manual Wireless 2D Long Range LED Barcode Scanner SLEEP TIME SETTING 30 Seconds 1 Minute 2 Minutes * 5 Minutes 10 Minutes 30 Minutes Never Sleep now DISPLAY BATTERY Display battery percentage SOUND SETTINGS Wireless sound OFF * Wireless sound ON VIBRATION SETTING (CUSTOMIZED) * Turn On Turn Off...

  • Page 10: Transfer Settings (For Wireless 4.2)

    Wireless 2D Long Range LED Barcode Scanner User Manual TRANSFER SETTINGS (FOR WIRELESS 4.2) Fast * Medium Ultra-low COMMUNICATION MODE SETTINGS * 2.4G mode HID mode 2.4G Virtual serial port mode Wireless 4.2 HID mode Wireless 4.2 SPP mode Wireless 4.2 BLE mode WIRELESS 4.2 NAME SETTING Set name Read name...

  • Page 11: Hid Setting

    User Manual Wireless 2D Long Range LED Barcode Scanner HID SETTING * Allow long press button to Prohibit long press button to HID Keyboard pop up/hide enter Wireless 4.2 HID search enter Wireless 4.2 HID search Disable double-click to pop up/hide HID keyboard Enable double click to pop up/hide HID keyboard OUTPUT SETTING * Add a carriage return at the end...

  • Page 12: Hide Barcodes

    Wireless 2D Long Range LED Barcode Scanner User Manual HIDE BARCODES To hide the barcode, scan the front part of the hidden barcode or the back part of the hidden barcode first, then scan the hidden digits, and hide the number up to 4 bytes. To cancel the Hide barcodes, scan to the hide the front of the barcode or hide the back of the barcode first, and then scan to exit the setting mode.

  • Page 13: Control Character Set Escape Settings

    User Manual Wireless 2D Long Range LED Barcode Scanner CONTROL CHARACTER SET ESCAPE SETTINGS The control character table mainly contains characters with key values less than 32. Most of these characters cannot be output directly through the HID keyboard and need to be escaped to be output from the HID keyboard. This scanner defines 5 escaping methods, and you can switch between different escaping methods by scanning the code.

  • Page 14: The Same Barcode Delay

    Wireless 2D Long Range LED Barcode Scanner User Manual THE SAME BARCODE DELAY The same barcode delay only takes effect in automatic mode. After reading a barcode in automatic mode, it will refuse to read the same barcode within the set time period.

  • Page 15: Autosense Sensitivity Settings

    User Manual Wireless 2D Long Range LED Barcode Scanner AUTOSENSE SENSITIVITY SETTINGS Sensitivity is 15 classes (B67A61 to BA67A615), class 1 highest, class 15 lowest. Class 1 Class 2 Class 3 Class 4 Class 5 Class 8 Class 10 Class 15 LIGHT SETTING –...

  • Page 16: Barcode Symbology Configuration

    Wireless 2D Long Range LED Barcode Scanner User Manual BARCODE SYMBOLOGY CONFIGURATION This chapter can configure the Barcode Symbology Configuration of the device, including barcode enable/disable, check enable/disable, check output enable/disable, etc. QUICK SETTING OF BARCODE ENABLE/DISABLE SETTING Enable All Symbology Disable All Symbology Enable All 1D Symbology Disable All 1D Symbology...

  • Page 17: Codeabar Length Limit

    User Manual Wireless 2D Long Range LED Barcode Scanner The min. Length of Code 11 is 1 digit The max. Length of Code 11 is 255 digits CODEABAR LENGTH LIMIT The min. Length of Codeabar is 1 digit The max. Length of Codeabar is 255 digits INTERLEAVED25 LENGTH LIMIT The min.

  • Page 18: Msi Length Limit

    Wireless 2D Long Range LED Barcode Scanner User Manual The min. Length of Airline25 is one digit The max. Length of Airline25 is 255 digits MSI LENGTH LIMIT The min. Length of MSI is one digit The max. Length of MSI is 255 digits RSS-EXPEND (GS1 DATABAR EXPANDED) LENGTH LIMIT The min.

  • Page 19: Enable/Disable Barcodes

    User Manual Wireless 2D Long Range LED Barcode Scanner ENABLE/DISABLE BARCODES AIRLINE 2 OF 5 (STANDARD 2 OF 5/IATA 2 OF 5) Enable *Disable AZTEC CODE Enable *Disable AZTEC CODE DIRECT AND REVERSE COLOR * Regular Both CODABAR * Enable Disable CODABAR CHECK *Disable Check...

  • Page 20: Codablock A

    Wireless 2D Long Range LED Barcode Scanner User Manual CODABLOCK A Enable * Disable CODABLOCK F Enable * Disable CODE 128 * Enable Disable CODE 128 DIRECT AND REVERSE COLOR * Regular Both CODE 11 Enable Disable CODE 11 CHECK * Enable Check Disable Check *One check bit...

  • Page 21: Code 32

    User Manual Wireless 2D Long Range LED Barcode Scanner CODE 32 Enable * Disable CODE 39 * Enable Disable CODE 39 CHECK Enable Check * Disable Check Enable check and transmit Enable output beginning & ending digit * Disable output beginning check character &...

  • Page 22: Composite

    Wireless 2D Long Range LED Barcode Scanner User Manual COMPOSITE To enable this symbology, both Micro PDF and RSS-14 must be enabled at the same time. Enable *Disable DATA MATRIX CODE Enable Disable MATRIX DM Enable Matrix DM Disable Matrix DM LATTICE DM Enable Lattice DM(DPM) Disable Lattice DM(DPM)

  • Page 23: Ean/Upc

    User Manual Wireless 2D Long Range LED Barcode Scanner EAN/UPC * Enable Disable EAN/UPC DIRECT AND REVERSE COLOR *Regular Both EAN/UPC TWO-DIGITS ADDITIONAL CODE Enable *Disable EAN/UPC FIVE-DIGITS ADDITIONAL CODE Enable *Disable MERGE THE ADDITIONAL CODE Enable *Disable EAN/UPC ADDITIONAL CODE THAT MUST BE RECOGNIZED Enable *Disable EAN/UPC BOUNDARY DETECTION (QUITE ZONE)

  • Page 24: Ean-8

    Wireless 2D Long Range LED Barcode Scanner User Manual EAN-8 * Enable Disable EAN-8 CHECK *Enable output check bit Disable output check bit EAN-8 CONVERT TO EAN-13 Enable *Disable EAN-13 * Enable Disable EAN-8 CHECK *Enable output check bit Disable output check bit GS1 DATABAR EXPANDED Enable * Disable...

  • Page 25: Gs1 Databar Omnidirectional

    User Manual Wireless 2D Long Range LED Barcode Scanner GS1 DATABAR OMNIDIRECTIONAL Enable * Disable HANXIN Enable * Disable HONG KONG 2 OF 5(CHINA POST) Enable * Disable When reading a postal, all other postal need close. INTERLEAVED 2 OF 5 * Enable Disable INTERLEAVED 2 OF 5 CHECK...

  • Page 26: Matrix 2 Of 5

    Wireless 2D Long Range LED Barcode Scanner User Manual MATRIX 2 OF 5 Enable * Disable MATRIX 2 OF 5 CHECK Enable check bit Disable check bit Enable output check bit *Disable output check bit MAXICODE Enable * Disable Enable * Disable MICRO PDF417 Enable...

  • Page 27: Pharmacode

    User Manual Wireless 2D Long Range LED Barcode Scanner PHARMACODE Enable Disable MICRO QR CODE Enable * Disable MICRO QR CODE DIRECT AND REVERSE COLOR *Regular Both QR CODE * Enable Disable QR CODE DIRECT AND REVERSE COLOR *Regular Both QR CODE DOT MATRIX Enable Disable...

  • Page 28: Rss-14

    Wireless 2D Long Range LED Barcode Scanner User Manual RSS-14 Enable * Disable RSS-LIMITED Enable * Disable RSS-EXPANDED Enable * Disable STRAIGHT 2 OF 5 INDUSTRIAL Enable * Disable TELEPEN Enable * Disable TRIOPTIC CODE Enable * Disable...

  • Page 29: Upc-A

    User Manual Wireless 2D Long Range LED Barcode Scanner UPC-A *Enable Disable UPC-A CHECK *Enable output check bit Disable output check bit UPC-A OUTPUT NUMERIC SYSTEM CHARACTERS *Enable Disable UPC-A CONVERT TO EAN-13 Enable * Disable UPC-E *Enable Disable UPC-E CHECK Enable output check bit * Disable output check bit UPC-E OUTPUT HEADER CHARACTERS (SYSTEM CHARACTERS)

  • Page 30: Gridmatrix

    Wireless 2D Long Range LED Barcode Scanner User Manual GRIDMATRIX *Enable Disable ISBN 13 CONVERSION SETTING CONVERT TO ISBN Enable * Disable 978 BEGINNING BARCODE ISBN CONVERSION Enable * Disable 979 BEGINNING BARCODE ISBN CONVERSION Enable * Disable ADD BOOKLAND PREFIX Enable * Disable TRANSMIT ISBN CHECK DIGIT...

  • Page 31: Isbn 13 Conversion Setting

    User Manual Wireless 2D Long Range LED Barcode Scanner ISBN 13 CONVERSION SETTING CONVERT BARCODES STARTING WITH 977 TO ISSN Enable * Disable ISSN CONVERT TO ”-“ Enable * Disable TRANSMITTING THE CHECK DIGIT OF THE ISSN Enable * Disable BARCODE SYMBOLOGY CONFIGURATION DEFAULT Read the following default barcode will restore all the barcode symbology configuration (with working mode) to the default state.

  • Page 32: Code Id Setting

    Wireless 2D Long Range LED Barcode Scanner User Manual CODE ID SETTING Enable output Code ID * Disable output Code ID ANNEX: CODE ID TABLE BARCODE CODE ID BARCODE CODE ID Airline 2 of 5 (Standard 2 of 5/IATA HANXIN 2 of 5) Aztec Code Interleaved 2 of 5...

  • Page 33: Appendix - Control Character List

    User Manual Wireless 2D Long Range LED Barcode Scanner APPENDIX – CONTROL CHARACTER LIST The setting code of the control character table refers to the corresponding setting code of 01-31 in the ASCII character table ASCII CHAR SET 0 CHAR SET 1 CHAR SET 2 CHAR SET 3 CHAR SET 4 NULL Home Ctrl+A...

  • Page 34: Appendix - Ascii Code Character Table

    Wireless 2D Long Range LED Barcode Scanner User Manual APPENDIX – ASCII CODE CHARACTER TABLE ASCII code table 0-31 are invisible characters used as control characters, and 32-127 are visible characters ASCII CHAR 1D SETUP CODE 2D SETUP CODE...
  • Page 35 User Manual Wireless 2D Long Range LED Barcode Scanner ASCII CHAR 1D SETUP CODE 2D SETUP CODE...
  • Page 36 Wireless 2D Long Range LED Barcode Scanner User Manual ASCII CHAR 1D SETUP CODE 2D SETUP CODE “ &...
  • Page 37 User Manual Wireless 2D Long Range LED Barcode Scanner ASCII CHAR 1D SETUP CODE 2D SETUP CODE...
  • Page 38 Wireless 2D Long Range LED Barcode Scanner User Manual ASCII CHAR 1D SETUP CODE 2D SETUP CODE < >...
  • Page 39 User Manual Wireless 2D Long Range LED Barcode Scanner ASCII CHAR 1D SETUP CODE 2D SETUP CODE...
  • Page 40 Wireless 2D Long Range LED Barcode Scanner User Manual ASCII CHAR 1D SETUP CODE 2D SETUP CODE...
  • Page 41 User Manual Wireless 2D Long Range LED Barcode Scanner ASCII CHAR 1D SETUP CODE 2D SETUP CODE ‘...
  • Page 42 Wireless 2D Long Range LED Barcode Scanner User Manual ASCII CHAR 1D SETUP CODE 2D SETUP CODE...
  • Page 43 User Manual Wireless 2D Long Range LED Barcode Scanner ASCII CHAR 1D SETUP CODE 2D SETUP CODE Ç ç...
  • Page 44 Wireless 2D Long Range LED Barcode Scanner User Manual...
  • Page 45 User Manual Wireless 2D Long Range LED Barcode Scanner...
  • Page 46 Wireless 2D Long Range LED Barcode Scanner User Manual WASTE ELECTRICAL & ELECTRONIC EQUIPMENT DISPOSAL OF ELECTRIC AND ELECTRONIC EQUIPMENT (Applicable In The European Union And Other European Countries With Separate Collection Systems) ENGLISH: This symbol on the product or its packaging FRANÇAIS: Ce symbole sur Ie produit ou son emballage signifie que ce means that this product must not be treated as unsorted produit ne doit pas être traité...
  • Page 47 FRANÇAIS: Cet appareil satisfait aux exigences de CE RED 2014/53/EU. La Déclaration de Conformité est disponible à : POLSKI: Urządzenie spełnia wymagania CE RED 2014/53/EU. Deklaracja zgodności dostępna jest na stronie internetowej producenta: ITALIANO: Questo dispositivo è conforme alla CE RED 2014/53/EU. La dichiarazione di conformità è disponibile al: support.manhattanproducts.com/barcode/154185 North America Asia & Africa...
  • Page 48 All trademarks and trade names are the property of their respective owners. © IC Intracom. All rights reserved. Manhattan is a trademark of IC Intracom, registered in the U.S. and other countries. MH_154185_UM_0524_REV_6.01...
