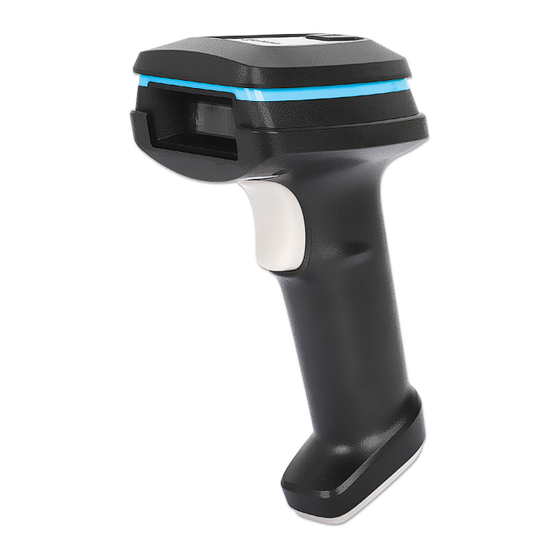

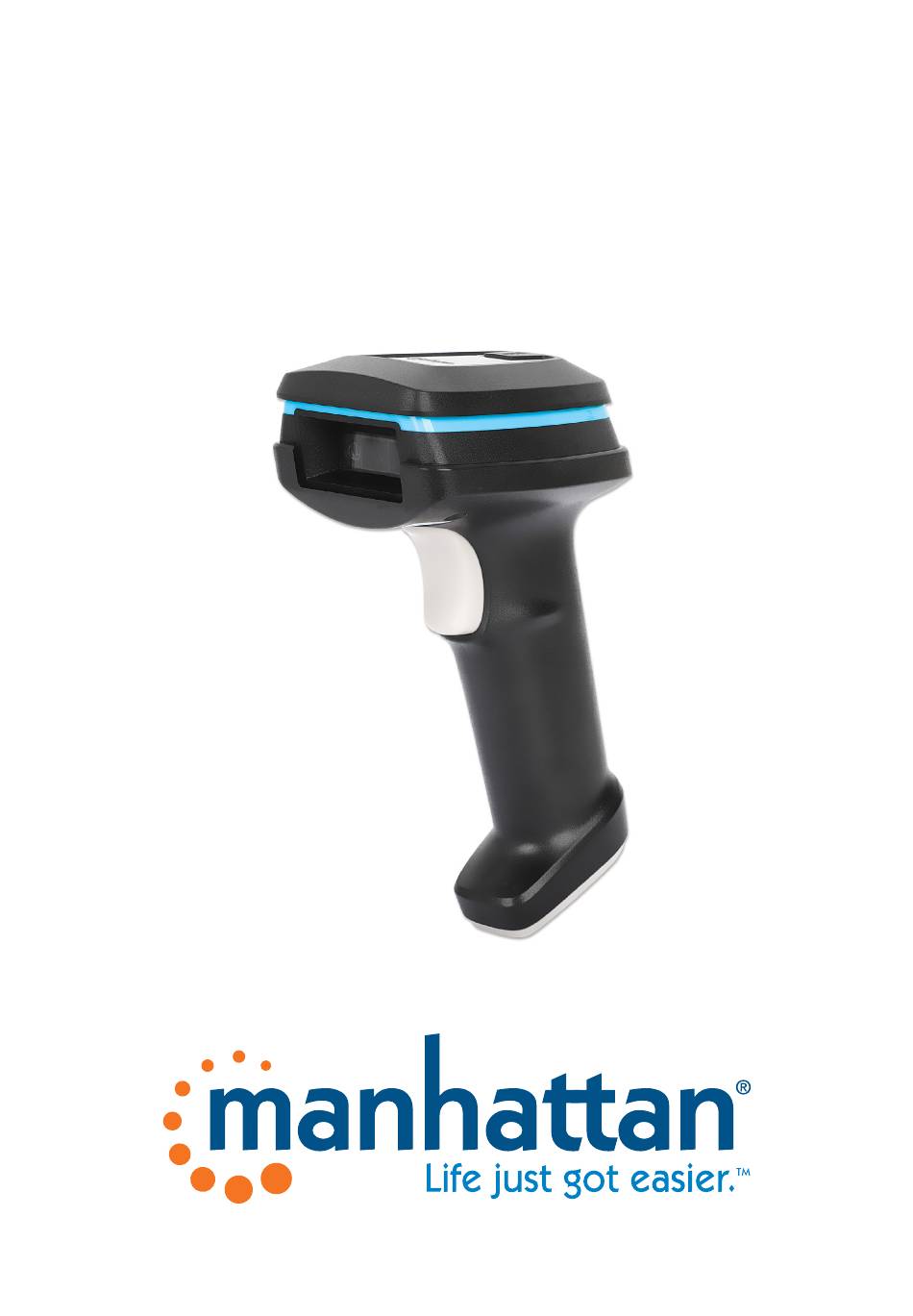

- Page 1 2D Long Range LED Barcode Scanner User Manual Model 154116 manhattanproducts.com...
- Page 2 All trademarks and trade names are the property of their respective owners. © IC Intracom. All rights reserved. Manhattan is a trademark of IC Intracom, registered in the U.S. and other countries. This manual is copyrighted, with all right reserved. Under the copyright laws, this manual may not, in whole or in part, be copied, photocopied, reproduced, translated or converted to any electronic medium or machine readable form without prior written consent of maker.
-
Page 3: Table Of Contents
User Manual 2D Long Range LED Barcode Scanner TABLE OF CONTENTS BASIC INFORMATION ..........................6 ABOUT THE MANUAL ..........................6 PACKAGE DETAILS ...........................6 APPEARANCE SIZE ..........................6 INTERFACE ...............................7 USB CABLE CONNECTION ........................7 DECODING ............................7 SYSTEM SETTINGS ............................8 CHECK THE VERSION NUMBER ........................8 RECOVER THE DEFAULT SETTING ......................8 INTERFACE MODE ............................8 USB HID INTERFACE ..........................8... - Page 4 2D Long Range LED Barcode Scanner User Manual CODEABAR LENGTH LIMIT ........................20 INTERLEAVED25 LENGTH LIMIT ......................20 CODE 128 LENGTH LIMIT ........................20 CODE 93 LENGTH LIMIT ........................20 CODE 39 LENGTH LIMIT ........................21 INDUSTRIAL 25 LENGTH LIMIT ......................21 AIRLINE25(ITAT 25) LENGTH LIMIT ......................21 MSI LENGTH LIMIT ..........................21 RSS-EXPEND(GS1 DATABAR EXPANDED) LENGTH LIMIT ..............21 2D BARCODE LENGTH SETTING ......................22...
- Page 5 User Manual 2D Long Range LED Barcode Scanner ISBN 13 CONVERSION SETTING ......................37 GS CHARACTER CONVERSION ........................38 GS OUTPUT MODE ..........................38 CODE ID SETTING .............................39 ANNEX: CODE ID TABLE.........................39 CONTROL CHARACTER OUTPUT ......................39...
-
Page 6: Basic Information
2D Long Range LED Barcode Scanner User Manual BASIC INFORMATION ABOUT THE MANUAL This user manual includes interface mode settings, function settings (lighting, keyboard type and factory reset, etc.), symbology settings, exposure optimization in special scenes, and data format editing functions. If you need to change the function you need, scan the corresponding configuration code below. -
Page 7: Interface
User Manual 2D Long Range LED Barcode Scanner INTERFACE USB CABLE CONNECTION 1 Insert the RJ45 interface (crystal head) of the USB data cable into the rear of the scanner, there is a crisp “click” sound, and the connection is normal. 2 Connect the USB interface of the USB data cable to the host device. -
Page 8: System Settings
2D Long Range LED Barcode Scanner User Manual SYSTEM SETTINGS CHECK THE VERSION NUMBER Read the “Version Information” barcode, the scanner will output software version. Version Number RECOVER THE DEFAULT SETTING Restore the system setting state to the default setting state. The scanner will restart automatically after setting. -
Page 9: Usb Transmission Delay
User Manual 2D Long Range LED Barcode Scanner USB TRANSMISSION DELAY The USB Transmission Delay can be set to four gears from 0 to 3. If the host will lose characters, the delay can be increased. USB Transmission Delay – 0ms USB Transmission Delay –1ms USB Transmission Delay –... -
Page 10: Keyboard Language Country Type
2D Long Range LED Barcode Scanner User Manual KEYBOARD LANGUAGE COUNTRY TYPE When the barcode scanner is used as a keyboard input device by default, some characters are different in different countries, and different national languages need to be set. The keyboard defaults to the US language. Belgium United Kingdom France... -
Page 11: Keyboard Mode Encoding Format
User Manual 2D Long Range LED Barcode Scanner KEYBOARD MODE ENCODING FORMAT The keyboard mode can output Chinese, traditional Chinese, Korean, etc. Since the third-party software uses different encoding, the scanner needs to switch to different encoding formats, please scan the corresponding configuration code as required. *Default Word Output Japanese Txt output Japanese... - Page 12 2D Long Range LED Barcode Scanner User Manual NON- KEYBOARD CONTROL + ASCII (CTRL+*) MODE PRINTABLE WINDOWS MODE CONTROL + * MODE ON CHAR CONTROL + * MODE OFF CTRL + * CTRL+ * FUNCTION CTRL + K Hyperlink Backspace CTRL + L List, Left Align Enter / Ret...
-
Page 13: Usb Com Interface
User Manual 2D Long Range LED Barcode Scanner USB COM INTERFACE In this section, you can change the reading mode of the device, you only need to scan the corresponding setting code according to your needs. After the scanner of the USB interface is set to “USB COM”, the data will be transmitted to the host through the serial port;... -
Page 14: The Same Barcode Delay
2D Long Range LED Barcode Scanner User Manual THE SAME BARCODE DELAY The same barcode delay only takes effect in automatic mode. After reading a barcode in automatic mode, it will refuse to read the same barcode within the set time period. -
Page 15: Autosense Sensitivity Settings
User Manual 2D Long Range LED Barcode Scanner AUTOSENSE SENSITIVITY SETTINGS Sensitivity is 15 classes (B67A61 to BA67A615), class 1 highest, class 15 lowest. Class 1 Class 2 Class 3 Class 4 Class 5 Class 8 Class 10 Class 15 LIGHT SETTING POSITION LIGHT (AIMER) * Enable... -
Page 16: Beeper Setting
2D Long Range LED Barcode Scanner User Manual BEEPER SETTING * Enable Disable BEEPER LASTING TIME Normal Short BEEPER FREQUENCY SETTING *2.7KHz 1.6KHz 2.0KHz 2.4KHz 3.1KHz 3.5KHz 4.2KHz Silent VIBRATION SETTING Enable * Disable... -
Page 17: Output Setting
User Manual 2D Long Range LED Barcode Scanner OUTPUT SETTING In this chapter, you can configure the output of the device, including carriage return/ line feed, serial port encoding setting, setting barcode length, removing barcode digits (remove/keep from beginning and ending), and multi-countries keyboard switching settings, etc. -
Page 18: Remove Digits From Beginning/Ending
2D Long Range LED Barcode Scanner User Manual REMOVE DIGITS FROM BEGINNING/ENDING Remove digits from Beginning/Ending can be used at the same time. MODE DESCRIPTION Remove digits “B68E6X” (X is the number of digits to remove. If the last number is 1, it means from Beginning remove one digit;... -
Page 19: Barcode Symbology Configuration
User Manual 2D Long Range LED Barcode Scanner BARCODE SYMBOLOGY CONFIGURATION This chapter can configure the Barcode Symbology Configuration of the device, including barcode enable/disable, check enable/disable, check output enable/disable, etc. QUICK SETTING OF BARCODE ENABLE/DISABLE SETTING Enable All Symbology Disable All Symbology Enable All 1D Symbology Disable All 1D Symbology... -
Page 20: Chinapost (Datalogic 2 Of 5) Length Limit
2D Long Range LED Barcode Scanner User Manual CHINAPOST (DATALOGIC 2 OF 5) LENGTH LIMIT The min. Length of Chinapost is 1 digit The max. Length of Chinapost is 255 digits CODE 11 LENGTH LIMIT The min. Length of Code 11 is 1 digit The max. -
Page 21: Code 39 Length Limit
User Manual 2D Long Range LED Barcode Scanner CODE 39 LENGTH LIMIT The min. Length of Code 39 is one digit The max. Length of Code 39 is 255 digits INDUSTRIAL 25 LENGTH LIMIT The min. Length of Industrial 25 is one digit The max. -
Page 22: 2D Barcode Length Setting
2D Long Range LED Barcode Scanner User Manual 2D BARCODE LENGTH SETTING The minimum length of the 2D barcode can be set to 1~255 (the minimum length is 1, the maximum length is 255) , 67EE6X (X represents the length of the barcode) The min. -
Page 23: Codabar
User Manual 2D Long Range LED Barcode Scanner CODABAR * Enable Disable CODABAR CHECK *Disable Check Enable check and output check character Enable check but not output check character CODABAR STOP BIT Enable output beginning & ending character * Disable output beginning & ending character CODABAR DIRECT AND REVERSE COLOR * Regular Both... -
Page 24: Code 128
2D Long Range LED Barcode Scanner User Manual CODE 128 * Enable Disable CODE 128 DIRECT AND REVERSE COLOR * Regular Both CODE 11 Enable Disable CODE 11 CHECK * Enable Check Disable Check *One check bit Two check bits Enable transmit check character *Disable transmit check character CODE 32... -
Page 25: Code 39
User Manual 2D Long Range LED Barcode Scanner CODE 39 * Enable Disable CODE 39 CHECK Enable Check * Disable Check Enable check and transmit Enable output beginning & ending digit * Disable output beginning check character & ending digit FULL ASCII CODE39 Enable Disable... -
Page 26: Composite
2D Long Range LED Barcode Scanner User Manual COMPOSITE To enable this symbology, both Micro PDF and RSS-14 must be enabled at the same time. Enable *Disable DATA MATRIX CODE Enable Disable MATRIX DM Enable Matrix DM Disable Matrix DM LATTICE DM Enable Lattice DM(DPM) Disable Lattice DM(DPM) -
Page 27: Ean/Upc
User Manual 2D Long Range LED Barcode Scanner EAN/UPC * Enable Disable EAN/UPC DIRECT AND REVERSE COLOR *Regular Both EAN/UPC TWO-DIGITS ADDITIONAL CODE Enable *Disable EAN/UPC FIVE-DIGITS ADDITIONAL CODE Enable *Disable MERGE THE ADDITIONAL CODE Enable *Disable EAN/UPC ADDITIONAL CODE THAT MUST BE RECOGNIZED Enable *Disable EAN/UPC BOUNDARY DETECTION (QUITE ZONE) -
Page 28: Ean-8
2D Long Range LED Barcode Scanner User Manual EAN-8 * Enable Disable EAN-8 CHECK *Enable output check bit Disable output check bit EAN-8 CONVERT TO EAN-13 Enable *Disable EAN-13 * Enable Disable EAN-8 CHECK *Enable output check bit Disable output check bit GS1 DATABAR EXPANDED Enable * Disable... -
Page 29: Gs1 Databar Omnidirectional
User Manual 2D Long Range LED Barcode Scanner GS1 DATABAR OMNIDIRECTIONAL Enable * Disable HANXIN Enable * Disable HONG KONG 2 OF 5(CHINA POST) Enable * Disable When reading a postal, all other postal need close. -
Page 30: Interleaved 2 Of 5
2D Long Range LED Barcode Scanner User Manual INTERLEAVED 2 OF 5 * Enable Disable INTERLEAVED 2 OF 5 CHECK Open check *No check Open check and transmit check character INTERLEAVED 2 OF 5 DIRECT AND REVERSE COLOR * Regular Both FEBRABAN BARCODE Enable... -
Page 31: Maxicode
User Manual 2D Long Range LED Barcode Scanner MAXICODE Enable * Disable Enable * Disable MICRO PDF417 Enable * Disable PDF417 * Enable Disable PDF417 DIRECT AND REVERSE COLOR *Regular Both PHARMACODE Enable Disable... -
Page 32: Micro Qr Code
2D Long Range LED Barcode Scanner User Manual MICRO QR CODE Enable * Disable MICRO QR CODE DIRECT AND REVERSE COLOR *Regular Both QR CODE * Enable Disable QR CODE DIRECT AND REVERSE COLOR *Regular Both QR CODE DOT MATRIX Enable Disable QR CODE URL CODE... -
Page 33: Rss-Limited
User Manual 2D Long Range LED Barcode Scanner RSS-LIMITED Enable * Disable RSS-EXPANDED Enable * Disable STRAIGHT 2 OF 5 INDUSTRIAL Enable * Disable TELEPEN Enable * Disable TRIOPTIC CODE Enable * Disable... -
Page 34: Upc-A
2D Long Range LED Barcode Scanner User Manual UPC-A *Enable Disable UPC-A CHECK *Enable output check bit Disable output check bit UPC-A OUTPUT NUMERIC SYSTEM CHARACTERS *Enable Disable UPC-A CONVERT TO EAN-13 Enable * Disable... -
Page 35: Upc-E
User Manual 2D Long Range LED Barcode Scanner UPC-E *Enable Disable UPC-E CHECK Enable output check bit * Disable output check bit UPC-E OUTPUT HEADER CHARACTERS (SYSTEM CHARACTERS) Enable * Disable UPC-E CONVERT TO UPC-A(EXTEND TO 12 BITS) Enable * Disable GRIDMATRIX *Enable Disable... -
Page 36: Isbn 13 Conversion Setting
2D Long Range LED Barcode Scanner User Manual ISBN 13 CONVERSION SETTING CONVERT TO ISBN Enable * Disable 978 BEGINNING BARCODE ISBN CONVERSION Enable * Disable 979 BEGINNING BARCODE ISBN CONVERSION Enable * Disable ADD BOOKLAND PREFIX Enable * Disable TRANSMIT ISBN CHECK DIGIT Enable * Disable... -
Page 37: Isbn 13 Conversion Setting
User Manual 2D Long Range LED Barcode Scanner ISBN 13 CONVERSION SETTING CONVERT BARCODES STARTING WITH 977 TO ISSN Enable * Disable ISSN CONVERT TO ”-“ Enable * Disable TRANSMITTING THE CHECK DIGIT OF THE ISSN Enable * Disable... -
Page 38: Gs Character Conversion
2D Long Range LED Barcode Scanner User Manual GS CHARACTER CONVERSION This mode is to output GS control characters as text characters. Enable control character conversion Disable control character conversion GS OUTPUT MODE GS is replaced by | GS is replaced by <GS> GS is replaced by (GS) GS is replaced by‘GS’... -
Page 39: Code Id Setting
User Manual 2D Long Range LED Barcode Scanner CODE ID SETTING Enable output Code ID * Disable output Code ID ANNEX: CODE ID TABLE BARCODE CODE ID BARCODE CODE ID Airline 2 of 5 (Standard 2 of 5/IATA HANXIN 2 of 5) Aztec Code Interleaved 2 of 5 Codabar... - Page 40 2D Long Range LED Barcode Scanner User Manual...
- Page 41 User Manual 2D Long Range LED Barcode Scanner...
- Page 42 2D Long Range LED Barcode Scanner User Manual WASTE ELECTRICAL & ELECTRONIC EQUIPMENT DISPOSAL OF ELECTRIC AND ELECTRONIC EQUIPMENT (Applicable In The European Union And Other European Countries With Separate Collection Systems) ENGLISH: This symbol on the product or its packaging FRANÇAIS: Ce symbole sur Ie produit ou son emballage signifie que ce means that this product must not be treated as unsorted produit ne doit pas être traité...
- Page 43 POLSKI: Urządzenie spełnia wymagania CE 2014/30/EU I / lub 2014/35/EU. Deklaracja zgodności dostępna jest na stronie internetowej producenta: ITALIANO: Questo dispositivo è conforme alla CE 2014/30/EU e / o 2014/35/EU. La dichiarazione di conformità è disponibile al: support.manhattanproducts.com/barcode/154116 North America Asia &...
- Page 44 All trademarks and trade names are the property of their respective owners. © IC Intracom. All rights reserved. Manhattan is a trademark of IC Intracom, registered in the U.S. and other countries. MH_154116_UM_0524_REV_6.01...
