The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user
to the presence of an insulated DANGEROUS VOLTAGE within the product's enclosure that may
be of sufficient magnitude to constitute an electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying
the appliance.

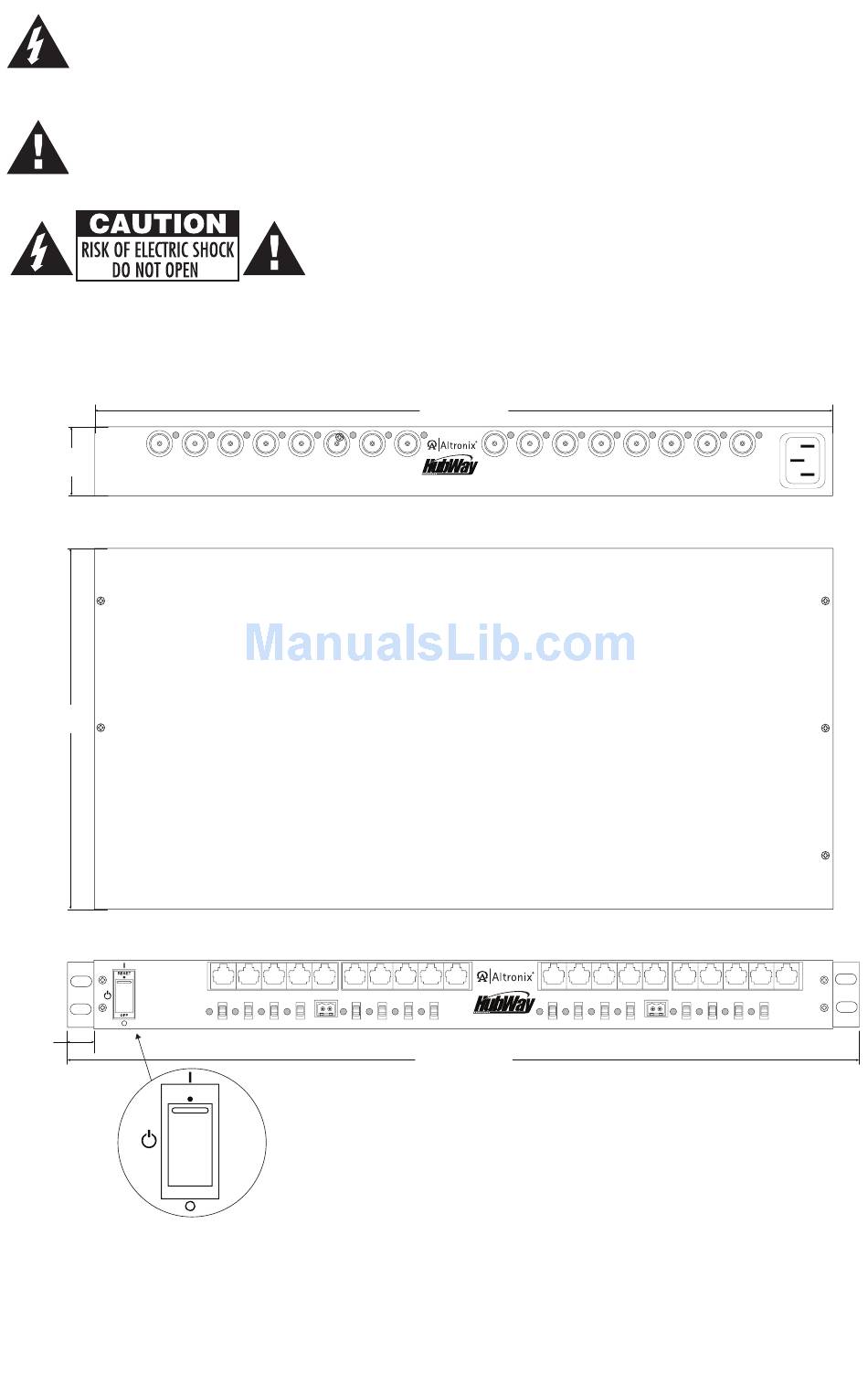

1U EIA 19" Rack Mount Chassis Mechanical Drawing and Dimensions:
1.625"
16
(41.3mm)
8.5"
(215.9mm)
0.95"
(24.13mm)
HubWayEXP
CAUTION: To reduce the risk of electric shock do not open
enclosure. There are no user serviceable parts inside. Refer servicing
to qualified service personnel.
1.625" x 19.125" x 8.5" (41.275mm x 486mm x 216mm)
15 14 13 12 11
1 2 3 4 CH 1-4
DATA
1-8
RESET
Fig. 6
Illuminated master power disconnect circuit breaker:
• OFF position: Circuit breaker tripped – Switch not illuminated.
• RESET (ON) position: Switch illuminated.
OFF
REAR
17.125" (435mm)
10 9 8
TOP and BOTTOM
FRONT
5 6 7 8 CH 5-8
28VAC
OFF
24VAC
19.125" (485.8mm)
7 6 5 4 3
9 10 11 12 CH 9-12 13
DATA
9-16
2 1
AC POWER
14 15 16 CH 13-16
28VAC
OFF
24VAC
