9. Set illuminated master power disconnect circuit breaker to the RESET (ON) position (Fig. 6, pg. 7) power
LEDs (Green) of the HubWayEXP will illuminate when AC power is present (Fig. 3b, pg. 4) and
HubWayAv or HubWayDv Video Balun/Combiner LEDs will illuminate indicating power is present
(Fig. 1b, 1d, pg. 3).
10. Measure the output voltage at each Video Balun/Combiner (Figs. 1b, 1d, pg. 3) before making connections
to each camera to ensure proper operation and avoid possible damage.
11. Set illuminated master power disconnect circuit breaker to the (OFF) position (Fig. 6, pg. 7).
12. Connect power outputs of HubWayAv or HubWayDv Video Balun/Combiners to power inputs
of cameras (Figs. 1a-1d, pg. 3). Polarity must be observed.
• HubWayAv - Terminals marked [AC POWER] (Figs. 1a, 1b, pg. 3).
• HubWayDv - Terminals marked [– 12VDC +] (Figs. 1c, 1d, pg. 3).
13. Connect the terminals marked [+ DATA –] of HubWayAv or HubWayDv Video Balun/Combiners
to data input terminals of cameras for PTZ control (Figs. 1b-1d, pg. 3). Polarity must be observed.
When using fixed cameras disregard this step.
14. Connect the BNC connector of HubWayAv or HubWayDv Video Balun/Combiners to the BNC video
outputs of cameras (Figs. 1b-1d, pg. 3).
15. Upon completion of wiring set illuminated master power disconnect circuit breaker to the RESET (ON)
position (Fig. 6, pg. 7).
16. The power LEDs located on the front of the HubWayEXP will illuminate when AC power is present
(Fig. 3b, pg. 4).
Note: If any of these LEDs are not illuminated either a voltage output selector switch is in the OFF position
or the PTC is tripped for that channel.
To reset the PTC:
1. Set the voltage output selector switch for that corresponding channel to the OFF position.
Switch must remain in the OFF position for approximately 2 minutes in order for the PTC to reset.
2. Eliminate the trouble condition (short circuit or overload).
3. Set the voltage output selector switch for 24VAC or 28VAC (Fig. 3c, pg. 4).

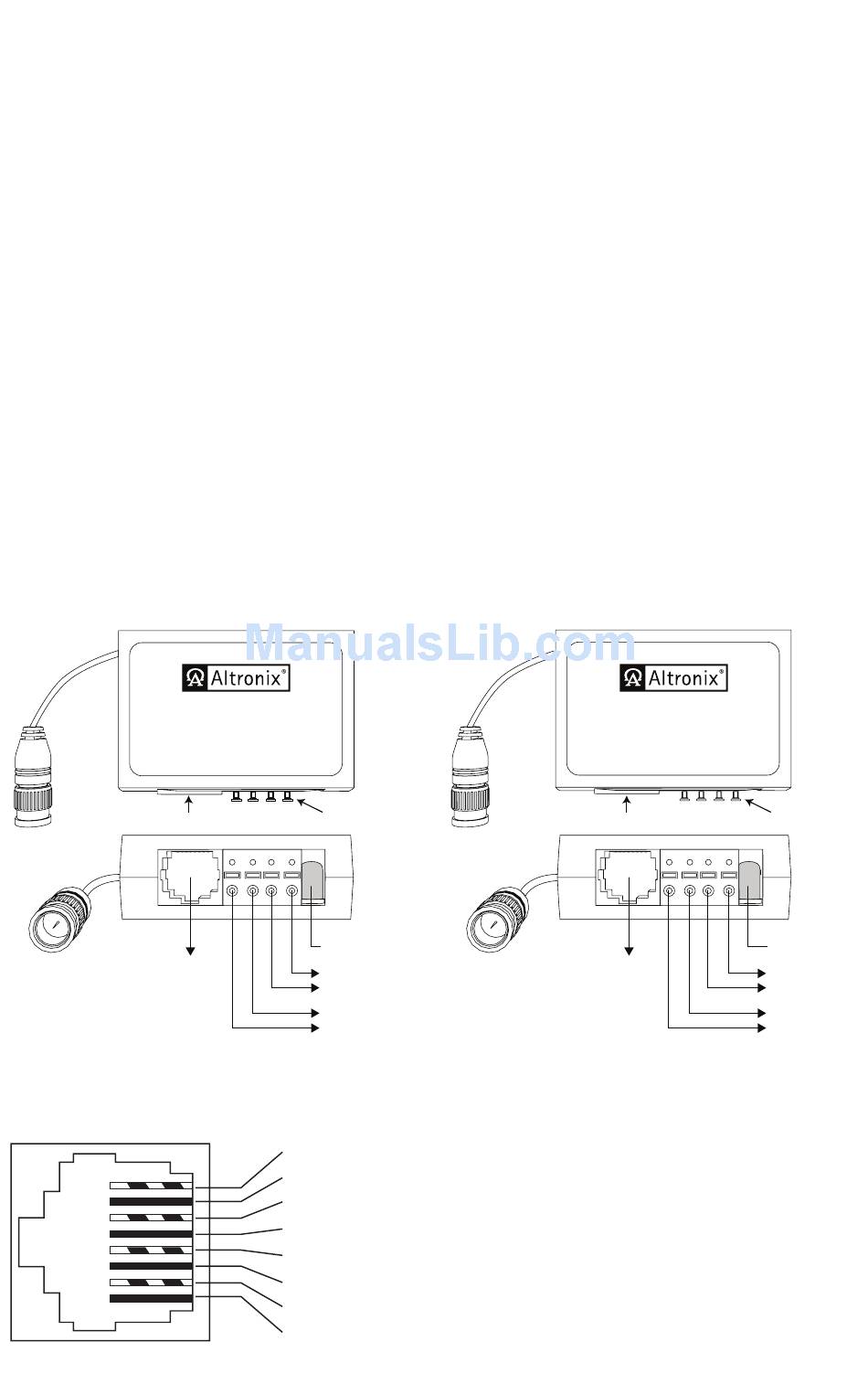

Fig. 1 - HubWayAv and HubWayDv Video Balun/Combiners
Fig. 1a
VIDEO
VIDEO BALUN/COMBINER
RJ45 Jack
Fig. 1b
To BNC
Structured
Connector
Cable from
of Camera
HubWayEXP
HubWayAv passes AC voltage from pins 4, 5, 7, 8 to
terminals marked [AC Power] (Fig. 3, pg. 5).
Fig. 2 - CAT5 Wiring Color Codes
HubWayEXP
HubWayAv
AC
CAT5 + DATA-- POWER
Wire
Connectors
Green Power LED
AC Power
to Camera
--
Data to
+ Camera
1 - White/Orange [VIDEO +]
2 - Orange [VIDEO -- ]
3 - White/Green [DATA +]
4 - Blue [AC 1]
5 - White/Blue [AC 2]
6 - Green [DATA -- ]
7 - White/Brown [AC 2]
8 - Brown [AC 1]
Fig. 1c
VIDEO
VIDEO BALUN/COMBINER
CAT5
RJ45 Jack
Fig. 1d
To BNC
Structured
Connector
Cable from
of Camera
HubWayEXP
HubWayDv converts AC voltage to DC
voltage from pins 4, 5, 7, 8 to terminals marked
[– 12VDC +] (Fig. 3, pg. 5).
HubWayDv
+ DATA-- -- 12VDC+
Connectors
Red Power LED
+
--
--
+
Wire
12VDC Power
to Camera
Data to
Camera
