5.4.5

The "Tag List" tab

The "Tag List" tab is displayed only in the advanced view.
In the "Tag List" tab, you will see list of all the transponders identified by the reader. With this
tab, you can read out the RSSI values of each individual identification of a transponder and
therefore check the effectiveness of all active UHF algorithms (for example Power Ramp,
Smoothing, ISTM). Disabled transponders are displayed in the Black List assuming that you
have activated the Black List in the "Parameter" tab.

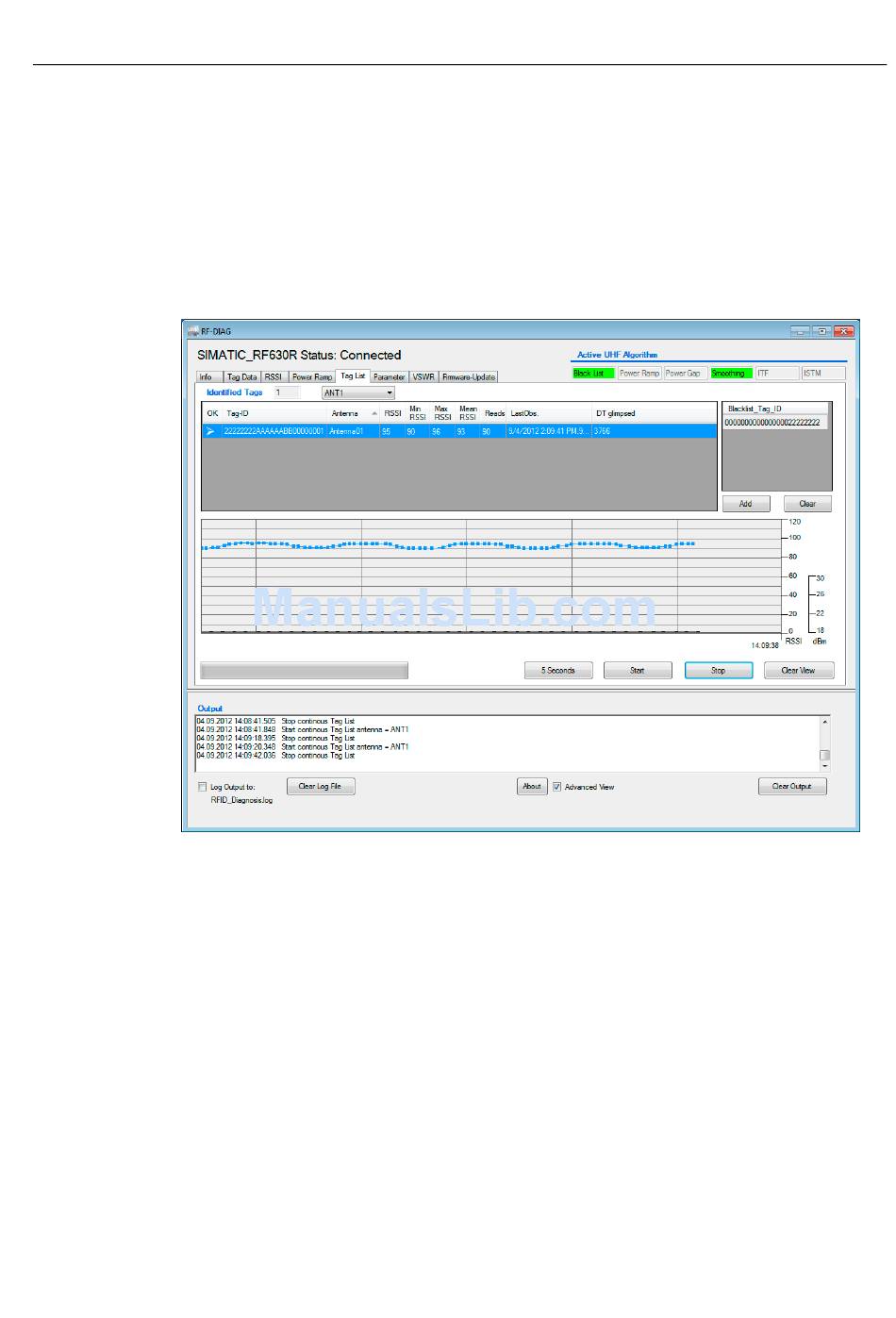

Figure 5-12
Controlling recordings
Using the "5 Seconds", "Start", "Stop" and "Clear View", you can control the recording of the
transponders:
● 5 Seconds
● Start
SIMATIC RF-DIAG
Operating Manual, 09/2012, C79000-G8976-C292-01
The "Tag List" tab
The recording is started and automatically stopped after 5 seconds. This functionality
cannot be selected if the ITF feature is active.
Any existing values from a previous recording are deleted. A new recording is then
started.
5.4 The tabs of the RF620R/RF630R readers
Operating the software
55
