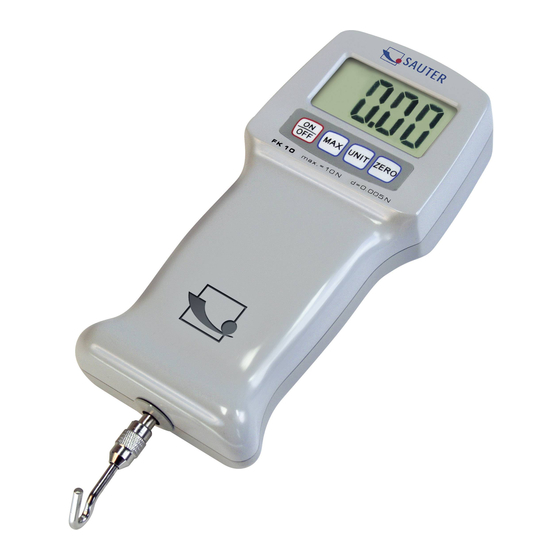

sauter FK 10 Instruction Manual

Thank you for buying a SAUTER force gauge. We hope
you are pleased with your high quality force gauge with its
big functional range. If you have any queries, wishes or
helpful suggestions, do not hesitate to call our service
number.
„Sensor inside"means the measuring cell is inside the
housing.
Table of contents
1. Included in delivery
2. Working conditions
3. Electrical power supply
4. Technical data
5. Operation
6. Backside fixing on a test stand
7. Adjusting procedure
8. Declaration of conformity
9. Warning
Included in delivery
1.
- SAUTER FK
- Power cable
- Standard attachments as shown below
Terms:
1.Track Mode= continuous measurement
2. Peak Mode= Capture of the maximum value
In this mode, always the max value is captured during
several consecutive measurements
Working Conditions
2.
Temperatures: 10°C up to 30°C
Humidity: 15% up to 80%
FK-BA-e-1213
Sauter GmbH
Ziegelei 1
D-72336 Balingen
E-Mail: info@sauter.eu
Instruction Manual
FK
dimensions in mm
Force Sensor
(M7 x 0.75mm
3.
- Either by batteries (6 x AA batteries
Batteries have to be changed if necessary.
- or current power supply
Power supply:
4.
-
-
Model
FK 10
FK 25
FK 50
FK 100
FK 250
FK 500
FK 1k
Tel: +49-[0]7433- 9933-199
Fax: +49-[0]7433-9933-149
Internet: www.kern-sohn.com
Sensor
Inside
LCD
thread)
83 mm
Electrical Power Supply
- Connection by power adapter cable
Technical Data
Accuracy: ± 0,5 % of Capacity
Data Sampling Rate: 1.000 Hz
Capacity
10 N
25 N
50 N
100 N
250 N
500 N
1 000 N
195 mm
) not rechargeable!
Resolution
0,005 N
0,01 N
0,02 N
0,05 N
0,1 N
0,2 N
0,5 N
1
