Package Contents

• 4MP HD IP Eyeball Dome Camera
• Mounting Kit
• Quick Start Guides

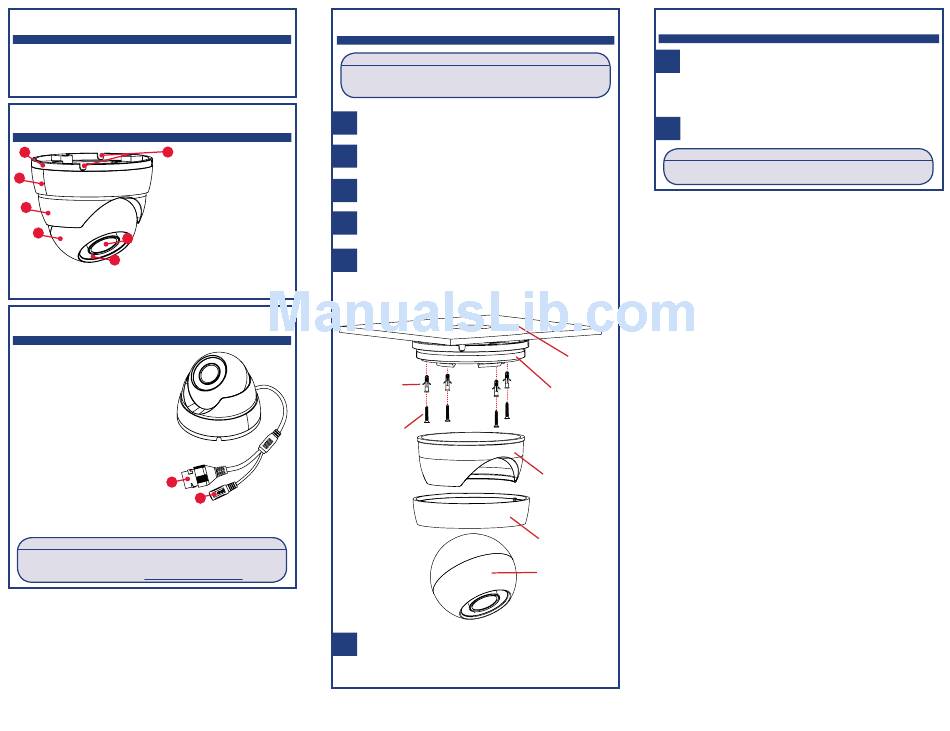

Camera Overview

A E
B
A. Camera Base
B. Adjustment Ring
C
C. Camera Cover
D. Ball Camera
D
F
E. Cable Notches (4
F. Camera Lens
G
G. Light Sensor and IR
LEDs

Connecting the Camera

A. Ethernet Port (PoE):
Connect the camera to an NVR
or a router or switch on your
network using Cat5e or better
Ethernet cable (not included).
PoE Class 3 supported.
NOTE: For instructions on
weatherproofing the Ethernet
connection, see "Using the
RJ45 Cap" on the back of this
guide.
A
B. Power Input: If not using PoE,
connect the camera to a 12V DC power source. See power
requirement specification in datasheet.
ATTENTION:
You must connect the camera to a supporting H.265 NVR to take
advantage of H.265 compression. For more information, see your IP
camera's instruction manual on www.flir.com/security/pro.

Installing the Camera

Test the camera(s) prior to selecting a permanent mounting location
by temporarily connecting the camera(s) and cables to an NVR or
PoE network switch.
Rotate the camera base counter-clockwise to separate
1
it from the ball camera, adjustment ring, and dome cover.
Use the included mounting template to mark and drill
2
holes for the included mounting screws.
3
Feed the camera cables through the camera base.
Connect the video and camera cable as shown in the
4
section "Connecting the Camera".
×
)
Mount the camera base to the mounting surface using
5
the included mounting screws.
NOTE:
drywall surface.
Drywall
anchors (4×)
Mounting
screws (4×)
B
Place the adjustment ring over the dome cover, then
6
place both over the ball camera. Twist the adjustment
ring clockwise to secure the components in place. Do not
tighten all the way.
ATTENTION:
Use the included drywall anchors if installing on a
Camera base
Camera cover
Adjustment
ring
Ball camera
Installing the Camera (cont'd)
Move the ball camera to the desired position. While
7
holding the ball camera firmly in place, twist the
adjustment ring the rest of the way to secure it to
the camera base. Holding the camera prevents it from
moving while securing the adjustment ring.
Remove the vinyl film from the camera lens once
8
installation is complete.
Make sure IR LEDs are not blocked by the dome cover to prevent IR
reflection.
Mounting
surface
ATTENTION:
