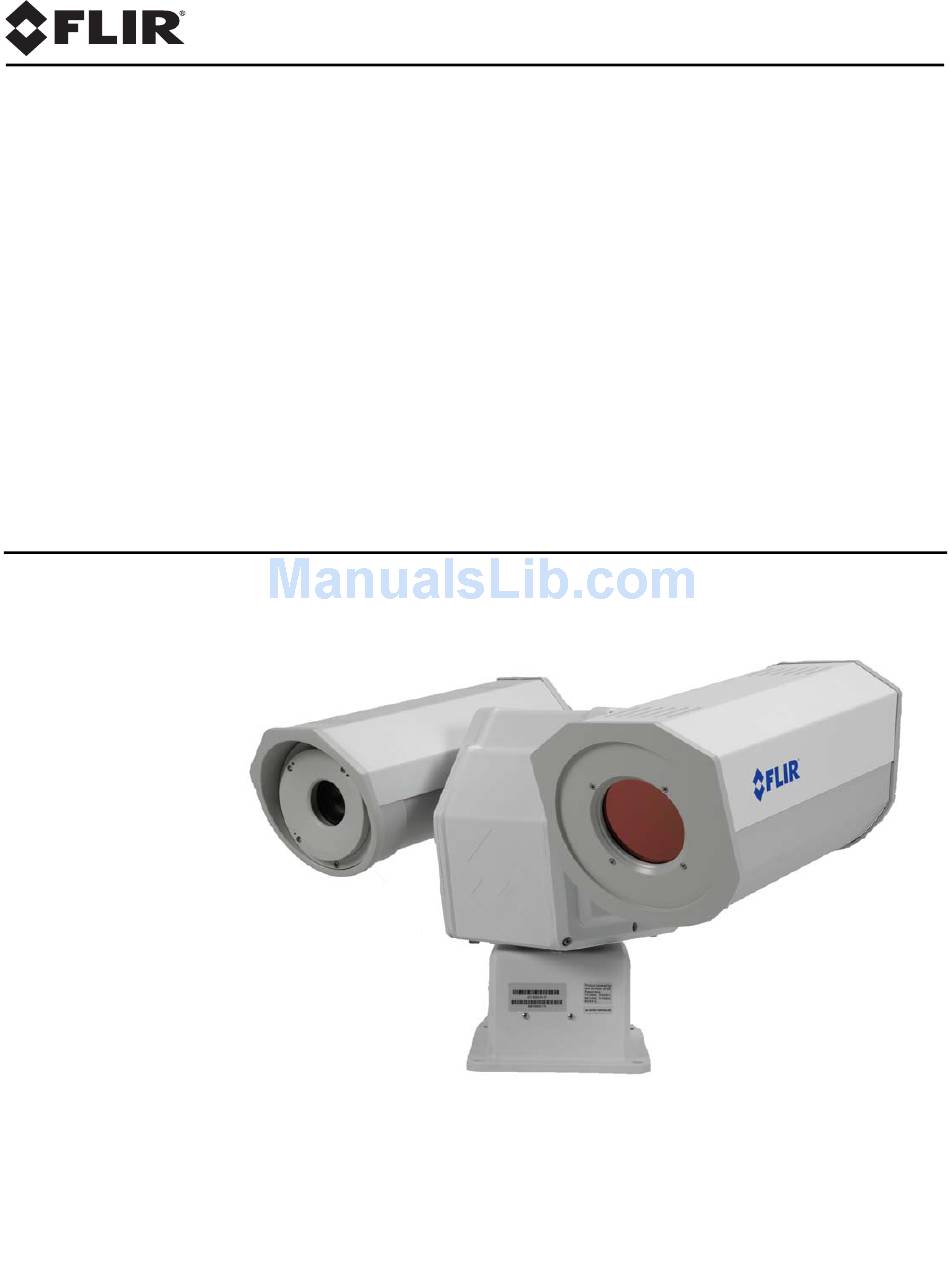

  • Page 1 Installation Manual PT-602CZ Camera...
  • Page 2 © 2012 FLIR Commercial Systems, Inc. All rights reserved worldwide. No parts of this manual, in whole or in part, may be copied, photocopied, translated, or transmitted to any electronic medium or machine readable form without the prior written permission of FLIR Commercial Systems, Inc.
  • Page 3: Table Of Contents

    2.2.1 Cool Down Period ....................2-1 2.3 Verify Serial Communications ..................2-2 2.4 Verify IP Communications ..................2-2 2.5 Using FLIR Sensors Manager (FSM) ................2-3 2.5.1 Running FSM ..................... 2-3 2.5.2 Non- Uniformity Correction (NUC) ..............2-5 2.6 Troubleshooting Tips ....................2-8 2.6.1 Camera not discovered ..................
  • Page 4 Table of Contents PT-602CZ Installation Manual PT-602CZ-12, version 100...
  • Page 5: Pt-602Cz Camera Installation

    PT-602CZ Camera Installation PT-602CZ Camera Installation The PT-602CZ is a pan/tilt thermal security camera for medium- to long-range applications and can be used with traditional analog video installations or IP video networks. It incorporates a high-sensitivity thermal camera and a long-range daylight camera with a precision pan/tilt platform.
  • Page 6: Installation Overview

    The mount must support up to 45 LBS. (20 KG). The PT-602CZ camera is both an analog and an IP camera. The video from the camera can be viewed over a traditional analog video network or it can be viewed by streaming it over an IP network using MPEG-4, M-JPEG and H.264 encoding.
  • Page 7: Installation Components

    The camera will require connections for power, communications (IP Ethernet, and/or RS232/RS422}, and video (two video connections may be required for analog video installations). The PT-602CZ camera must be mounted upright on top of the mounting surface, with the base below the camera.
  • Page 8: Prior To Cutting/Drilling Holes

    Caution! When lifting the PT-602CZ camera use the camera body and base, not the tubes. The PT-602CZ camera can be secured to the mount with four 5/16 or M8 bolts, as shown below. Not to scale Dimensions in inches (and millimeters) 4X Ø.354 (9.0) THRU...
  • Page 9: Removing The

    PT-602CZ Camera Installation Once the holes are drilled in the mounting surface, install four (4) 5/16 or M8 bolts through the base of the camera. Use a thread locking compound such as Loctite 242 or equivalent with all metal to metal threaded connections.
  • Page 10: Cable Gland Seal Inserts

    1.8.3 Cable Gland Seal Inserts Ground Ethernet The PT-602CZ camera comes with two 3/4” gland seal plugs NPT cable glands, each with a three hole gland seal insert. Cables may be between 0.23" to 0.29" (0.59cm to 0.73cm) od. Up to six cables may be installed.
  • Page 11: Electrical Connections

    PT-602CZ Camera Installation Electrical Connections Serial and IP Communications Auxiliary Analog Video and Power Main Analog Video Male Male Ethernet Main Auxiliary Port Port RS232 3/4” NPT for Cable RS422 Gland or Conduit Chassis 20 AWG MAX 16 AWG Shielded...
  • Page 12: Connecting Power

    1.10 Connecting power The camera itself does not have an on/off switch. Generally the PT-602CZ camera will be connected to a circuit breaker and the circuit breaker will be used to apply or remove power to the camera. If power is supplied to it, the camera will be in one of two modes: Booting Up or Powered On.
  • Page 13: Ethernet Connection

    Important Note The serial communications parameters for the PT-602CZ camera are set or modified either via hardware DIP switch settings or via software, through a web browser interface. A single DIP switch (SW102-9, Software Override determines whether the configuration comes from the hardware DIP switches or the software settings.
  • Page 14: Setting Configuration Dip Switches

    Switch Position Figure 1-5: PT-602CZ Camera Configuration Address: This is the address of the system when configured for serial communications. The available range of values is from decimal 1 to 255. The dip switches are interpreted as a binary number, with switch 1 representing the least significant bit (the switches are in the reverse order of the bits).
  • Page 15 Bit 10 Not Used Note Typical Bosch systems operate using a biphase connection and the FLIR cameras do not accept biphase signals directly. It may be necessary to install a biphase converter in order to use the Bosch protocol. PT-602CZ-12 Rev100...
  • Page 16: Pt-602Cz Camera Specifications

    PT-602CZ Camera Installation 1.16 PT-602CZ Camera Specifications Thermal Camera Specifications Array Format 640 × 480 (NTSC), 640 x 512 (PAL) Detector Type Cooled Mercury Cadmium Telluride (MCT) Spectral Range 3.7 to 4.8 μm Thermal Sensitivity <30 mK @ 25 °C...
  • Page 17: Verify Camera Operation

    8 minutes to cool the detector down to its operating temperature. When it is cooling down, the video image shows a fixed test pattern, rather than live video. PT-602CZ-12, version 100 April 2012...
  • Page 18: Verify Serial Communications

    FF 01 00 0B 00 09 15 Go to Park Position Verify IP Communications As shipped from the factory, the PT-602CZ camera has an IP address of 192.168.250.116 with a netmask of 255.255.255.0. Step 1 Configure a laptop or PC with another IP address from this network (for example, 192.168.250.1).
  • Page 19: Using Flir Sensors Manager (Fsm)

    The following provides a brief description of how to use FSM to control a camera and stream video from the camera. For more detailed information on how to use FSM, refer to the FLIR Sensors Manager User Manual.If the FSM software has not been installed yet, locate the CD that came with the camera (or download it from http://support.flir.com/) and install it on the PC.
  • Page 20 Step 4 When the Discovery Panel is displayed, click Refresh. The FLIR camera will appear in the list of Discovered Servers. The camera will appear as “(*)FLIR”, and the asterisk in parenthesis “(*)” indicates the camera has not been added to the list of Active Servers on the right.
  • Page 21: Non- Uniformity Correction (Nuc)

    # 427-0030-00-28) for more information about camera configuration.” on page 2- 5 for basic information about how to configure the camera for your network and application. Refer to the Nexus IP Camera Configuration Guide (FLIR document # 427-0030-00-28) for more information about camera configuration.
  • Page 22 Control Panel. It is possible to reassign one of the buttons that is not used often (for example, the PT Initialize button is not needed for the PT-602CZ, since the pan/tilt initializes automatically at startup). To reassign the button, right click on the button, and select an alternate function from the pop-up menu.
  • Page 23 Accept button is selected, the NUC operation begins. Note Since the PT-602CZ does not have an internal shutter, the IR NUC button has no effect on the pixels and simply causes the image to freeze momentarily.
  • Page 24: Troubleshooting Tips

    Verify Camera Operation Troubleshooting Tips If you need help during the installation process, contact your local FLIR representative or, call 877- 773-3547 inside the US. Before using serial communications, it may be necessary to configure the camera’s serial interface to operate with the other serial device.
  • Page 25: Unable To Control The Camera

    “connected” to FSM and receiving status updates. To take control of the camera, right click on the icon and select “Request Control”. Alternatively, it is possible to double-click the icon to take control. Not Connected PT-602CZ-12 Rev100 April 2012...
  • Page 26: General Errors

    When displaying video with FSM for the first time, the Windows Personal Firewall may ask for permission to allow the FLIR Video Player (vp.exe) to communicate on the network, as in the following notification. Select the check boxes that are appropriate for your network.
  • Page 27 VLC media player (http://www.videolan.org/vlc/).To view the video stream, specify RTSP port 554 and the appropriate stream name such as “ch0”. For example: rtsp://192.168.250.116:554/ch0. Refer to the Nexus IP Camera Configuration Guide for more information about video streaming parameters. PT-602CZ-12 Rev100 April 2012 2-11...
  • Page 28: Restoring The Factory Network Settings

    30 seconds after power is turned on, the loopback should be removed to allow the camera to finish booting up. When the camera is turned on, confirm the startup information is displayed on the analog monitor after approximately 90 seconds. For example: S/N: 1234567 IP Addr: 192.168.250.116 PelcoD (Addr:1): 9600 SW 2-12 PT-602CZ-12 Rev 100 April 2012...
  • Page 29: Pt-602Cz Configuration

    If you need to contact FLIR for support, this information will be useful to the support engineer. Use the Menu entries at the left of the screen shown in Figure 3-1 to configure the PT-602CZ camera.
  • Page 30: Lan Settings

    In FSM, the new camera name will not appear in the Discovery Panel until the camera is rebooted. In the Server Status web page, the Reboot button can be used to initiate a camera reboot. PT-602CZ-12 Rev 100 April 2012...
  • Page 31: Date And Time

    PT-602CZ Configuration Date and Time Note, you may be logged out when changing the Date or Time. Simply log back in again to continue configuring the camera. When making configuration changes, the server will have to be stopped and restarted to make the changes effective.
  • Page 32: Serial Remote Menu

    Select Device ID 1 Step 4 After the page refreshes, enter the parameters for your specific location. Step 5 After the parameters are set, select Save and stop and restart the server to make the changes effective. PT-602CZ-12 Rev 100 April 2012...
  • Page 33: Configuration File

    PT-602CZ Configuration Configuration File Step 1 Click Configuration File. At the top of the screen the configuration is shown in a scrollable window. Step 2 In the Customer Backup and Recovery section, make a backup of your final custom settings.Type in a backup name and click Backup.
  • Page 34: Mechanical Icd Reference

    The Mechanical Interface Control Document, available on the documentation CD or from the FLIR website, details the outline and mounting for the PT-602CZ cameras. These documents are provided for reference only. You may wish to consult your local sales representative or application engineer to obtain current ICD information.
  • Page 35: Serial Addresses: Decimal To Binary Conversion

    01010000 10010000 11010000 00010001 01010001 10010001 11010001 00010010 01010010 10010010 11010010 00010011 01010011 10010011 11010011 00010100 01010100 10010100 11010100 00010101 01010101 10010101 11010101 00010110 01010110 10010110 11010110 00010111 01010111 10010111 11010111 00011000 01011000 10011000 11011000 PT-602CZ-12, version 100 April 2012...
  • Page 36 00111000 01111000 10111000 11111000 00111001 01111001 10111001 11111001 00111010 01111010 10111010 11111010 00111011 01111011 10111011 11111011 00111100 01111100 10111100 11111100 00111101 01111101 10111101 11111101 00111110 01111110 10111110 11111110 00111111 01111111 10111111 11111111 01000000 10000000 11000000 PT-602CZ-12 Rev 100 April 2012...
