2. DESCRIPTION

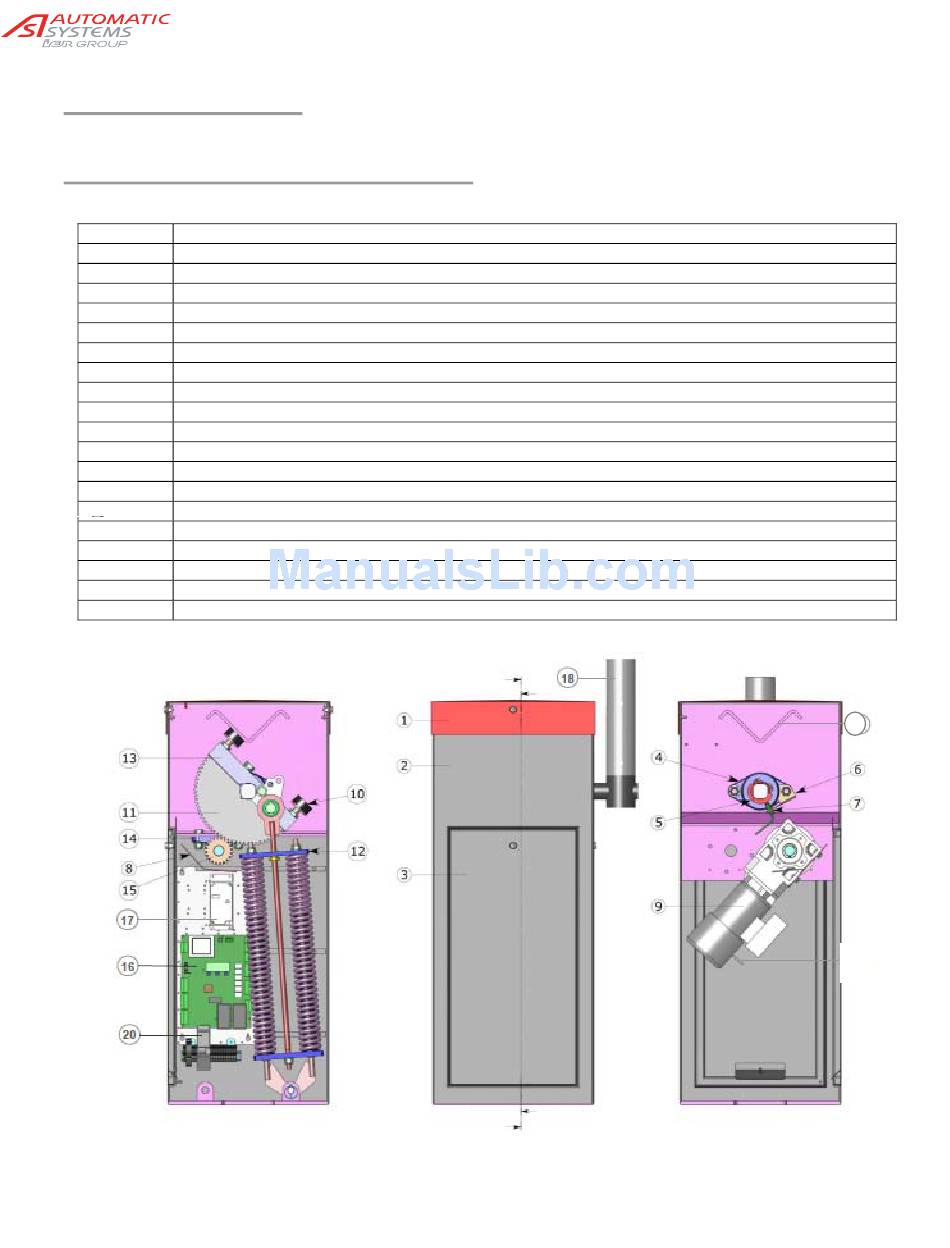

2.1. Location of the components

1 Cover, locked with two locks and keys
2 Housing
3 Front door, locked by lock and key
4 Bearing for main shaft (x2 per barrier)
5 Detection cam (x2 per barrier)
6 Bracket for inductive sensors
7 Inductive position sensor (x2 per barrier)
8 Protective cover
9 Gear motor
10 Bumper (x2 per barrier)
11 Sector gear
12 Spring assembly (x1 or x2 per barrier) (see Ch. 0)
13 Hub
14 Plummer block
15 Pinion
16 Control board
17 Variable speed controller
18 Arm
19 Reinforcing V-block, optional arm locking support
20 Circuit breaker
