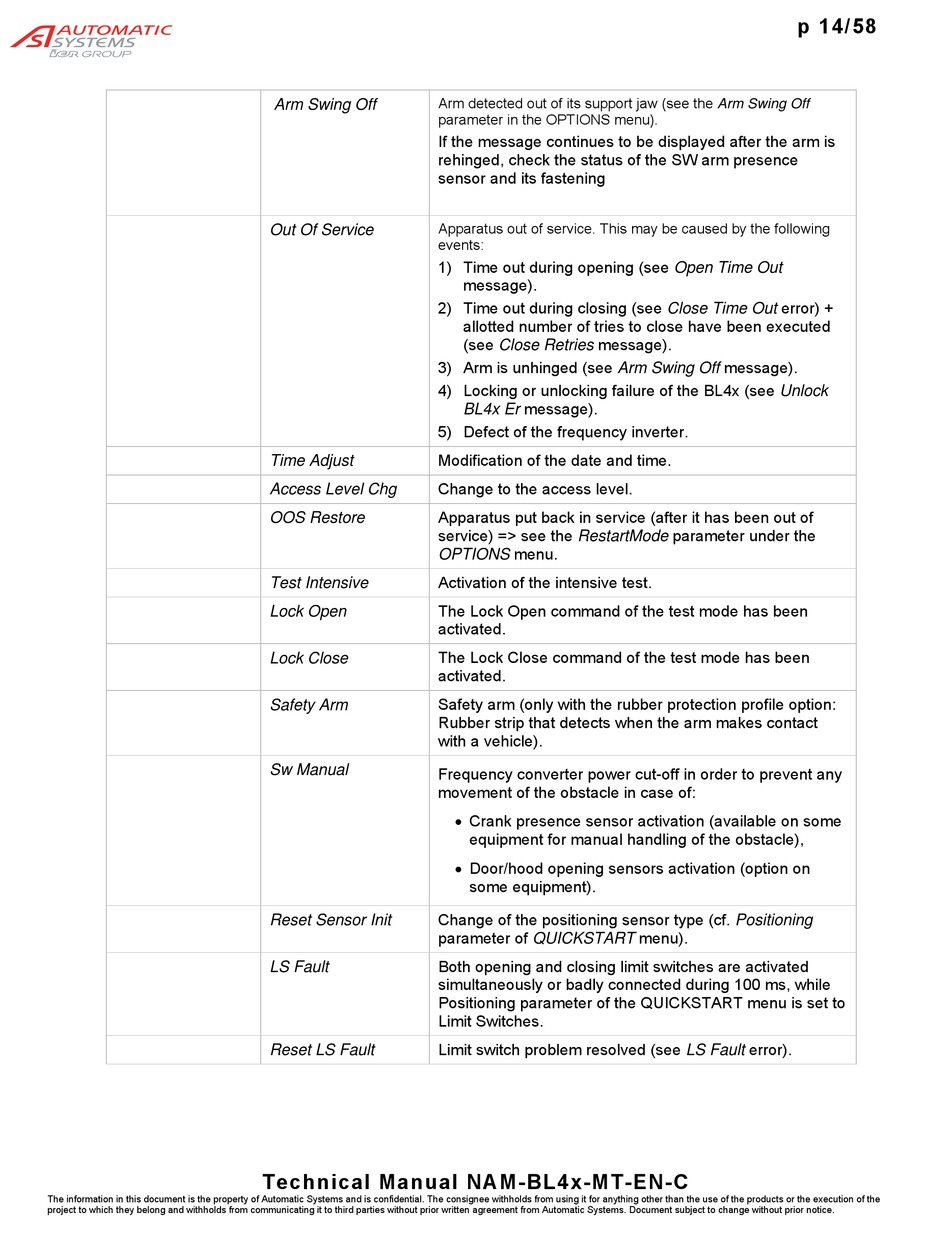

Automatic Systems BL40 Technical Manual page 14

The information in this document is the property of Automatic Systems and is confidential. The consignee withholds from using it for anything other than the use of the products or the execution of the
project to which they belong and withholds from communicating it to third parties without prior written agreement from Automatic Systems. Document subject to change without prior notice.
Arm detected out of its support jaw (see the Arm Swing Off
Arm Swing Off
parameter in the OPTIONS menu).
If the message continues to be displayed after the arm is
rehinged, check the status of the SW arm presence
sensor and its fastening
Apparatus out of service. This may be caused by the following
Out Of Service
events:
1) Time out during opening (see Open Time Out
2) Time out during closing (see Close Time Out error) +
3) Arm is unhinged (see Arm Swing Off message).
4) Locking or unlocking failure of the BL4x (see Unlock
5) Defect of the frequency inverter.
Modification of the date and time.
Time Adjust
Change to the access level.
Access Level Chg
Apparatus put back in service (after it has been out of
OOS Restore
service) => see the RestartMode parameter under the
OPTIONS menu.
Activation of the intensive test.
Test Intensive
The Lock Open command of the test mode has been
Lock Open
activated.
The Lock Close command of the test mode has been
Lock Close
activated.
Safety arm (only with the rubber protection profile option:
Safety Arm
Rubber strip that detects when the arm makes contact
with a vehicle).
Sw Manual
Frequency converter power cut-off in order to prevent any
movement of the obstacle in case of:
Change of the positioning sensor type (cf. Positioning
Reset Sensor Init
parameter of QUICKSTART menu).
Both opening and closing limit switches are activated
LS Fault
simultaneously or badly connected during 100 ms, while
Positioning parameter of the QUICKSTART menu is set to
Limit Switches.
Limit switch problem resolved (see LS Fault error).
Reset LS Fault
Technical Manual NAM-BL4x-MT-EN-C
message).
allotted number of tries to close have been executed
(see Close Retries message).
BL4x Er message).
 Crank presence sensor activation (available on some
equipment for manual handling of the obstacle),
 Door/hood opening sensors activation (option on
some equipment).
