Automatic Systems BL40 Technical Manual page 38

Note: Do not over-tighten screws 3-A and 7 in order
to allow the folding fence to fold without constraints.
The information in this document is the property of Automatic Systems and is confidential. The consignee withholds from using it for anything other than the use of the products or the execution of the
project to which they belong and withholds from communicating it to third parties without prior written agreement from Automatic Systems. Document subject to change without prior notice.

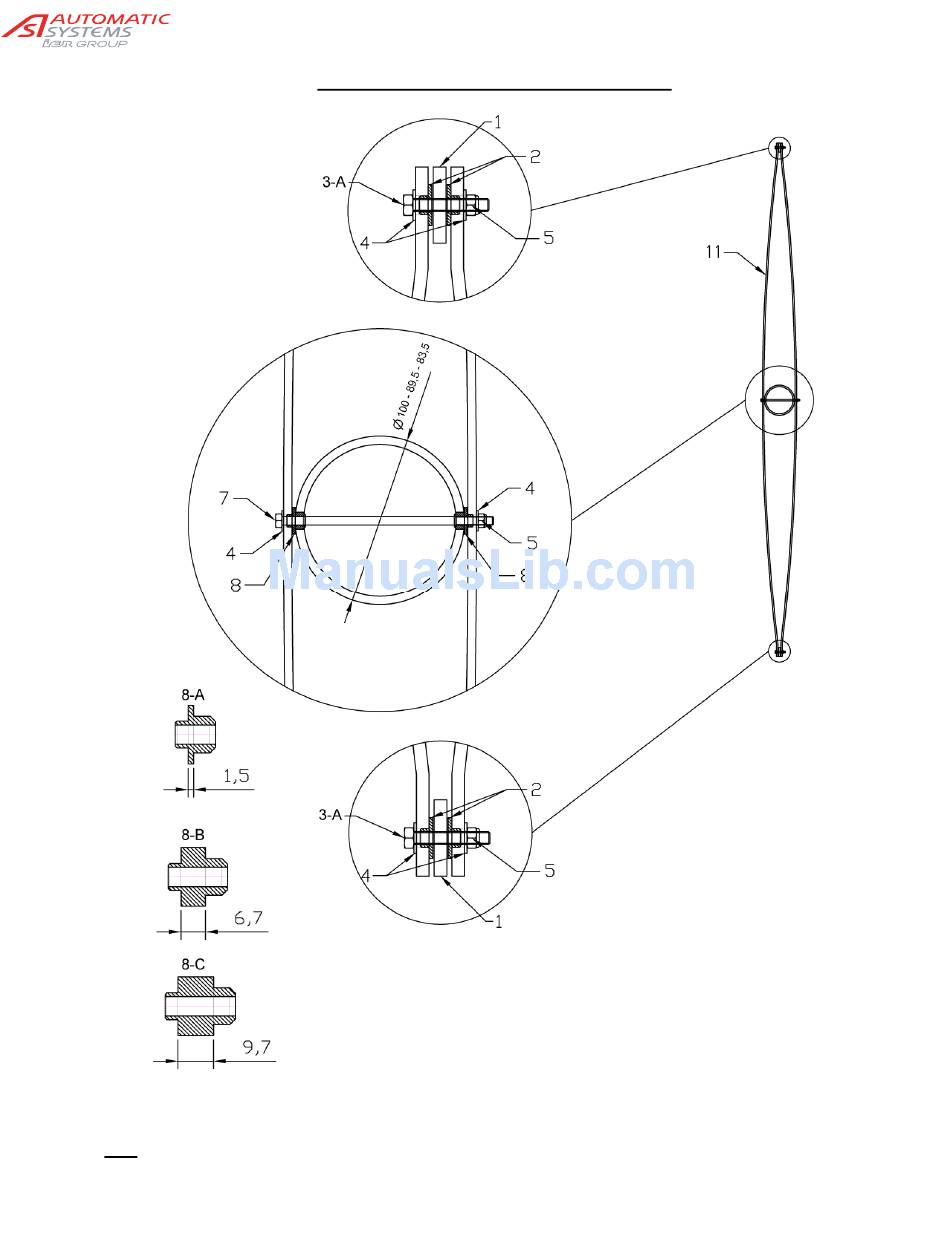

BAR ASSEMBLY ON ARM, Ø100 – 89.5 – 83.5
Technical Manual NAM-BL4x-MT-EN-C
1. Flat connection bar
2. Shoulder washer
3- . HM5 x 30 stainless steel screw
A
4. MU5 stainless steel washer
5. HFR5 brake nut
6. –
7. HM5 x 125 stainless steel screw
8- . Shoulder spacer for arm, Ø100
A
8- . Shoulder spacer for arm, Ø89.5
B
8- . Shoulder spacer for arm, Ø83.5
C
9. –
10. –
11. Curved bar
p 38/58
