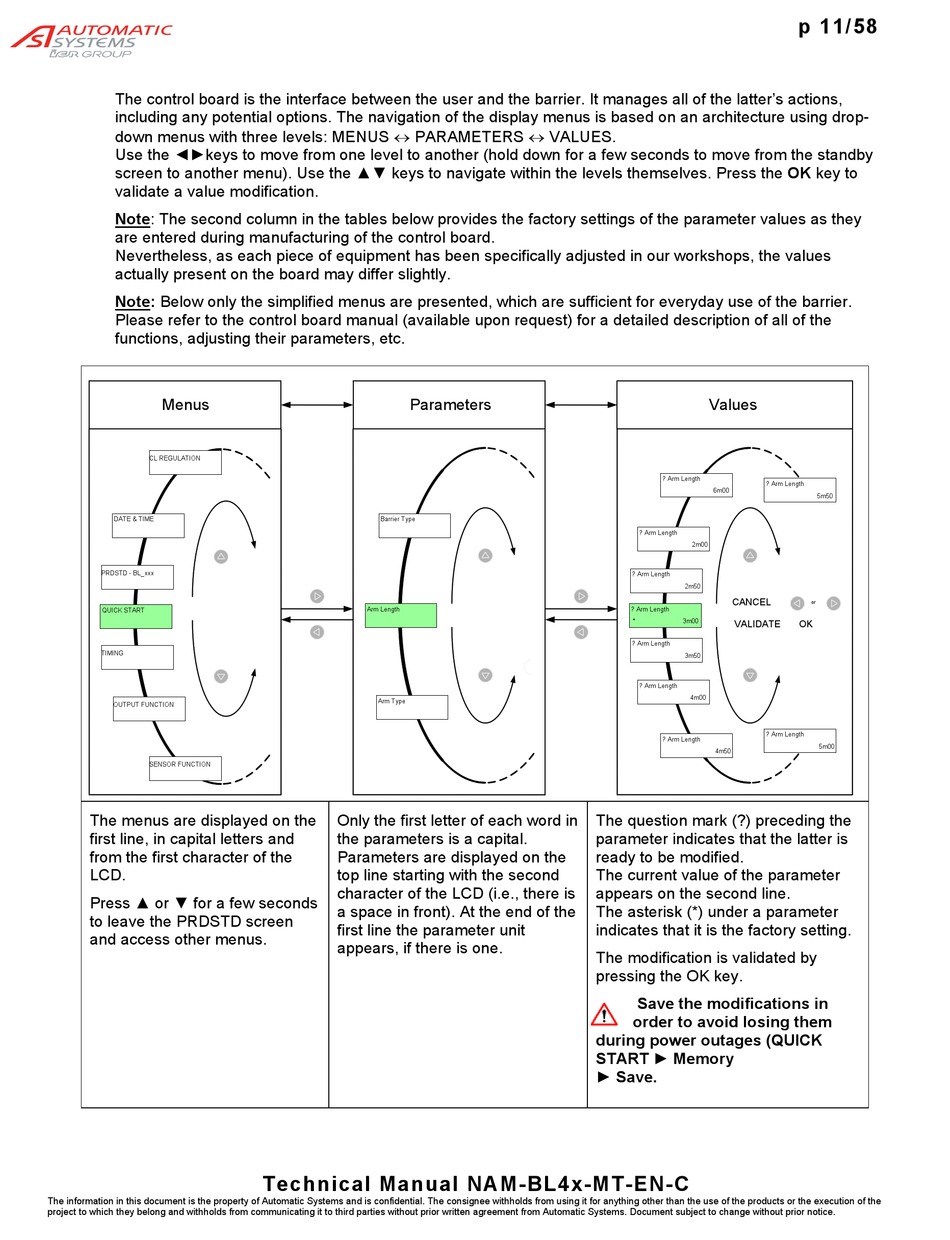

Automatic Systems BL40 Technical Manual page 11

The control board is the interface between the user and the barrier. It manages all of the latter's actions,
including any potential options. The navigation of the display menus is based on an architecture using drop-
down menus with three levels: MENUS  PARAMETERS  VALUES.
Use the ◄►keys to move from one level to another (hold down for a few seconds to move from the standby
screen to another menu). Use the ▲▼ keys to navigate within the levels themselves. Press the OK key to
validate a value modification.
Note: The second column in the tables below provides the factory settings of the parameter values as they
are entered during manufacturing of the control board.
Nevertheless, as each piece of equipment has been specifically adjusted in our workshops, the values
actually present on the board may differ slightly.
Note: Below only the simplified menus are presented, which are sufficient for everyday use of the barrier.
Please refer to the control board manual (available upon request) for a detailed description of all of the
functions, adjusting their parameters, etc.
Menus
CL REGULATION
DATE & TIME
PRDSTD - BL_xxx
QUICK START
TIMING
OUTPUT FUNCTION
SENSOR FUNCTION
The menus are displayed on the
first line, in capital letters and
from the first character of the
LCD.
Press ▲ or ▼ for a few seconds
to leave the PRDSTD screen
and access other menus.
The information in this document is the property of Automatic Systems and is confidential. The consignee withholds from using it for anything other than the use of the products or the execution of the
project to which they belong and withholds from communicating it to third parties without prior written agreement from Automatic Systems. Document subject to change without prior notice.
Parameters
Barrier Type
Arm Length
Arm Type
Only the first letter of each word in
the parameters is a capital.
Parameters are displayed on the
top line starting with the second
character of the LCD (i.e., there is
a space in front). At the end of the
first line the parameter unit
appears, if there is one.
Technical Manual NAM-BL4x-MT-EN-C
Values
? Arm Length
? Arm Length
6m00
? Arm Length
2m00
? Arm Length
2m50
CANCEL
? Arm Length
* 3m00
VALIDATE
? Arm Length
3m50
? Arm Length
4m00
? Arm Length
? Arm Length
4m50
The question mark (?) preceding the
parameter indicates that the latter is
ready to be modified.
The current value of the parameter
appears on the second line.
The asterisk (*) under a parameter
indicates that it is the factory setting.
The modification is validated by
pressing the OK key.
Save the modifications in
order to avoid losing them
during power outages (QUICK
START ► Memory
► Save.
p 11/58
5m50
or
OK
5m00
